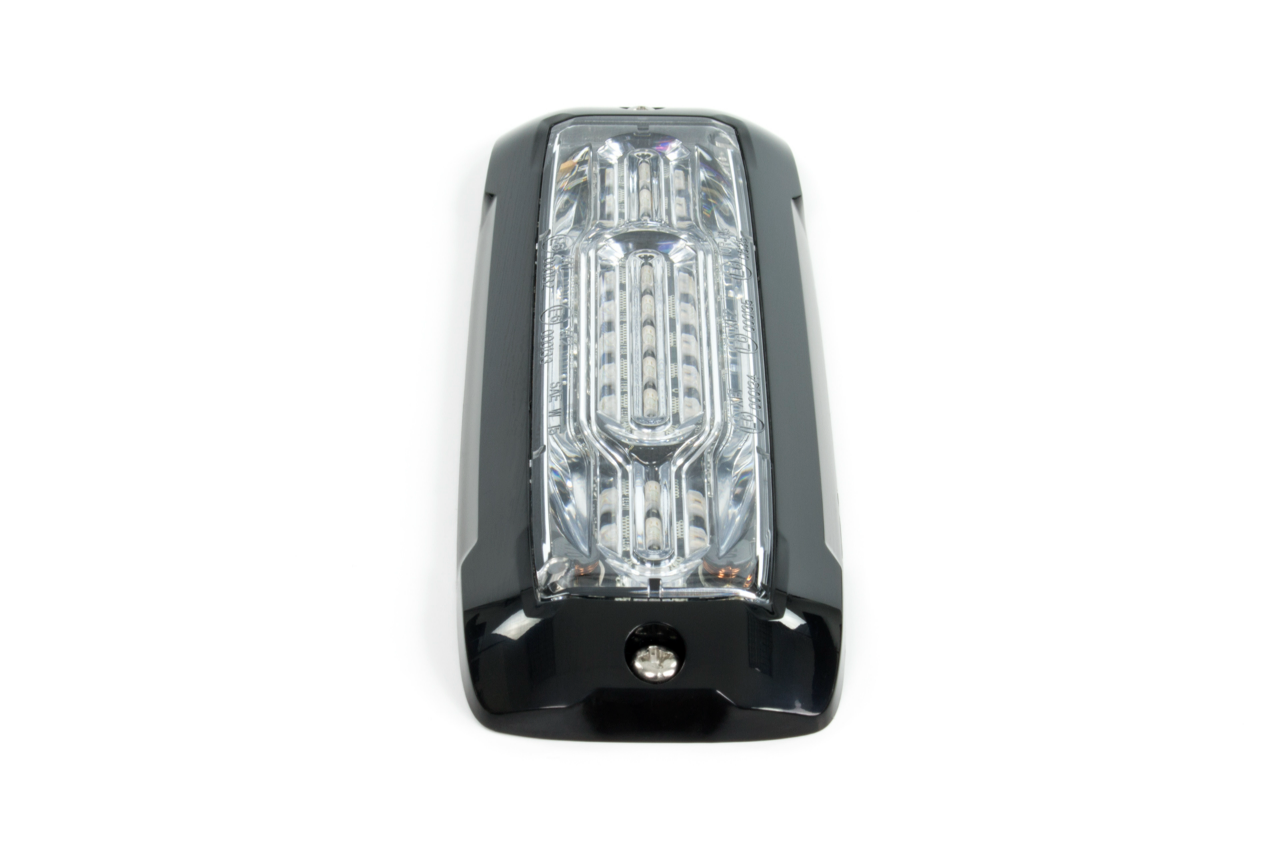

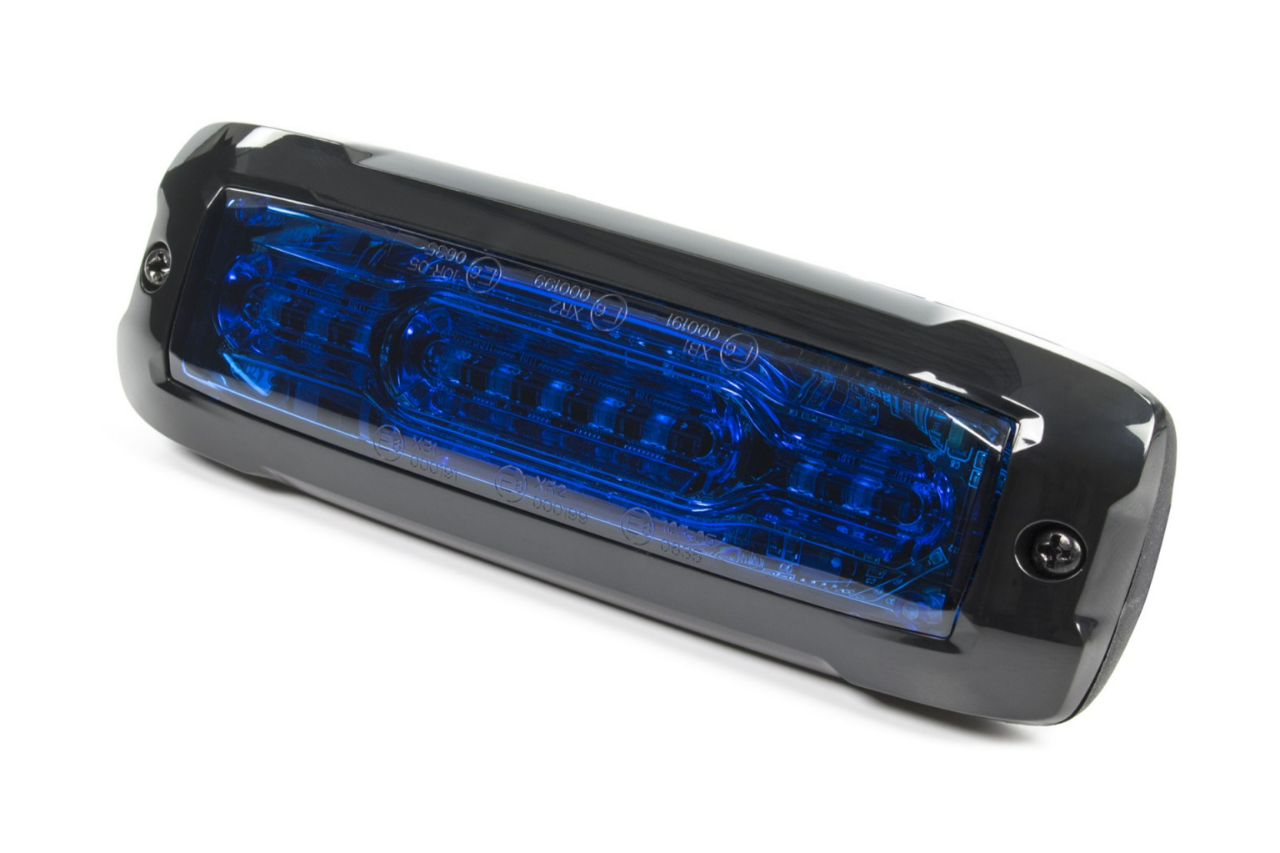

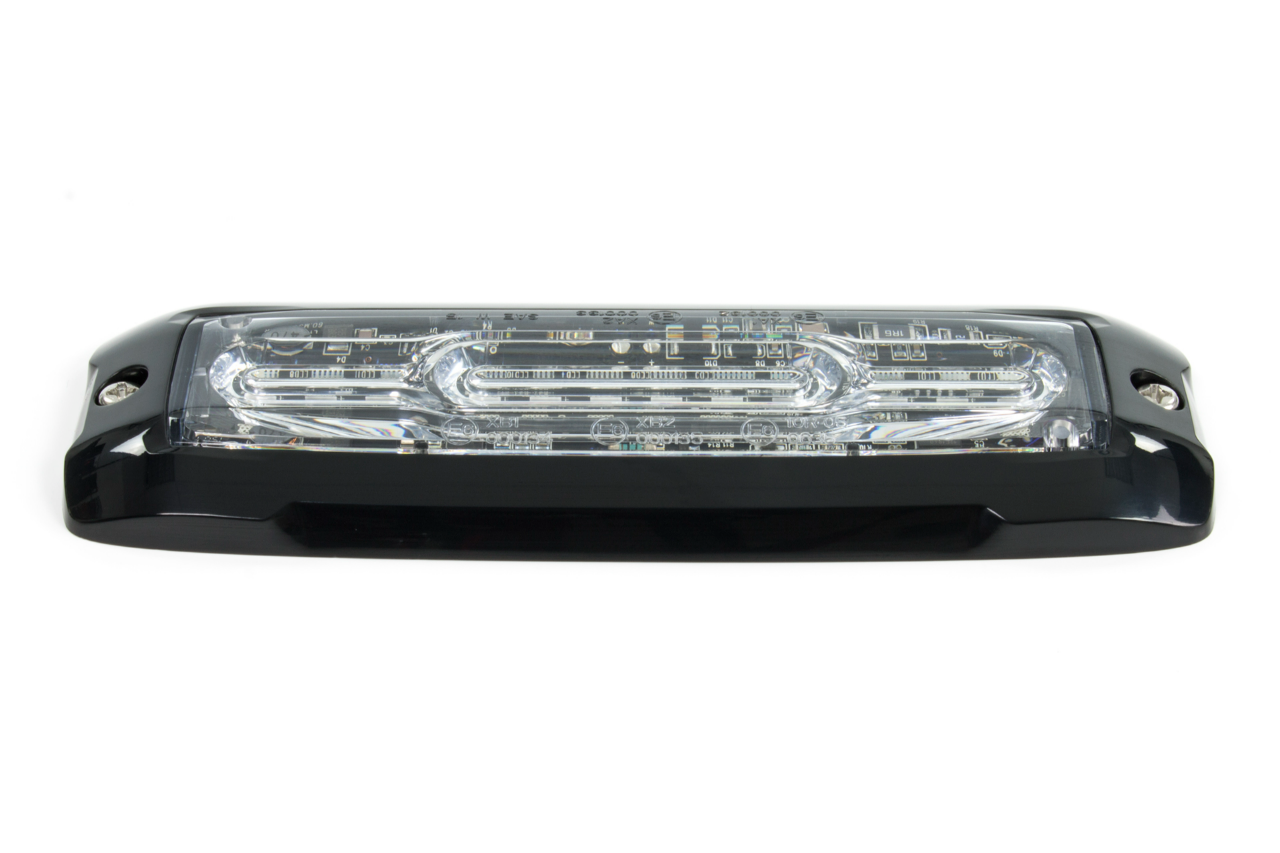

XT12 LED Surface Mounted Lamp (M57) - Xtreme Thin Series Blue

PRODUCT DESCRIPTION

The XT12 Surface Mounted Lamp Modules (M57) are a new generation of LED warning lighting. The Xtreme Thin series offers a super low profile thickness combined with an extreme brightness over a wide field of vision. The long life LEDs are rated to 100,000 hours of operation and are available in Amber, Red and White.

Note: Blue flashing lights may only be used on vehicles used by the emergency services. To purchase any blue light from Euromotive, you must prove the end usage is for the mentioned services. Email us for more information: office@euromotivegroup.com

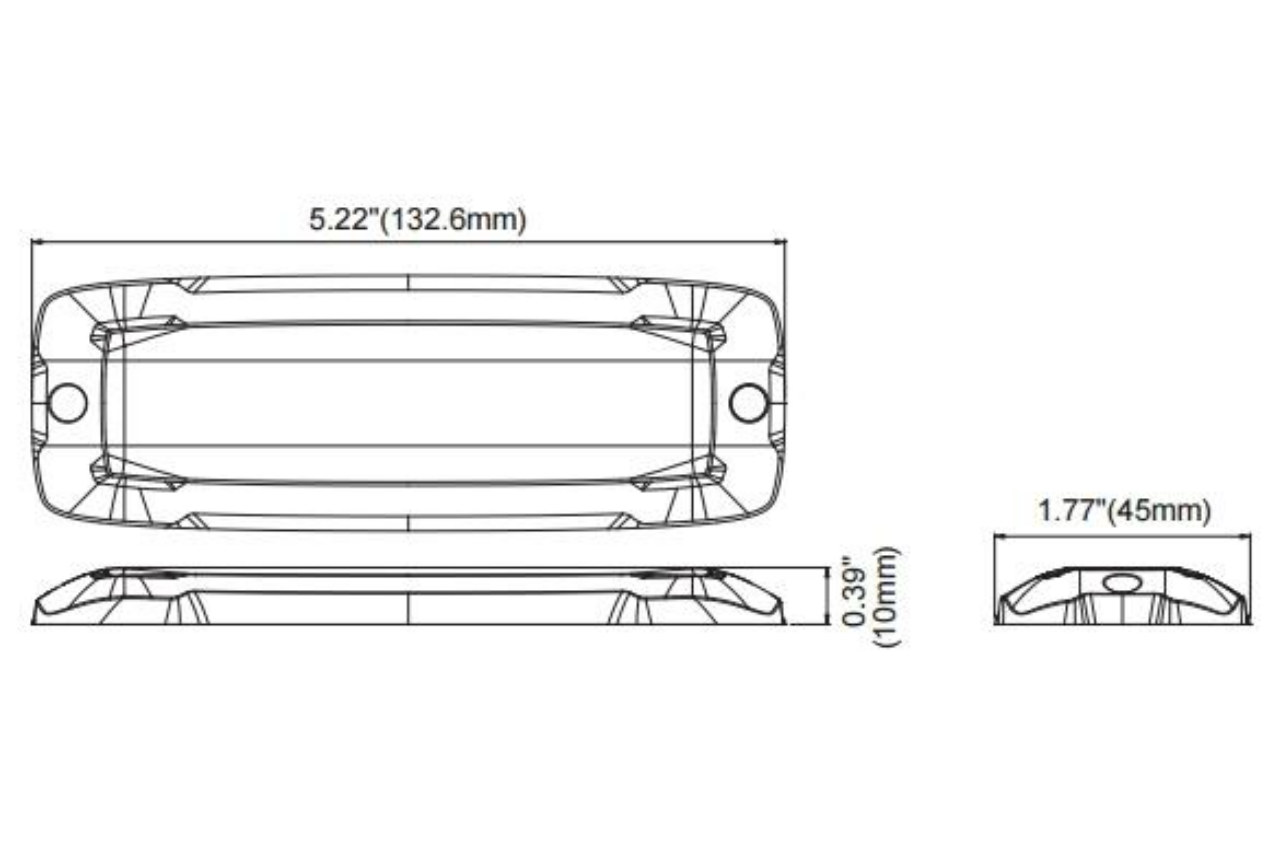

Dimensions: 132.6mm (L) x 45mm (H) x 10mm (D)

Features:

  • New Generation Xtreme optic for wide angle visual and classic aesthetics.
  • 12LED Single colour or 6LED/6LED Dual colour option.
  • SAE and ECE R65 certified high power output.
  • ECE R10 EMC Compliance.
  • 0.39” (10mm) Super low-profile thickness.
  • Long life LEDs rated to 100,000 hours of operation.
  • Non-volatile memory recalls last flash pattern used at power up.
  • Multi-units synchronization in simultaneous or alternating flash.
  • Reverse polarity protection.
  • Weatherproof and vibration resistant design for internal or external use.
  • Aluminum base for efficient heat dissipation.

Specifications:

  • Meets: SAE J595 Class1, CA13 Class B (R/A/B), ECE R65 (XA1, XB1), ECE R65 (XA2, XB2) (12LED Single Colour only), ECE R10, IPX8
  • Bulb: High-power LED x 12pcs
  • Warning Patterns: 16 Flash Patterns
  • Operating Voltage: 12~24VDC
  • Avg. Current: 0.88A @12VDC / 0.44A @24VDC (varies with flash pattern)
  • Avg. Power: 10.55 Watts (varies with flash pattern)
  • Max. Current: 1.76A @12VDC / 0.88A @24VDC

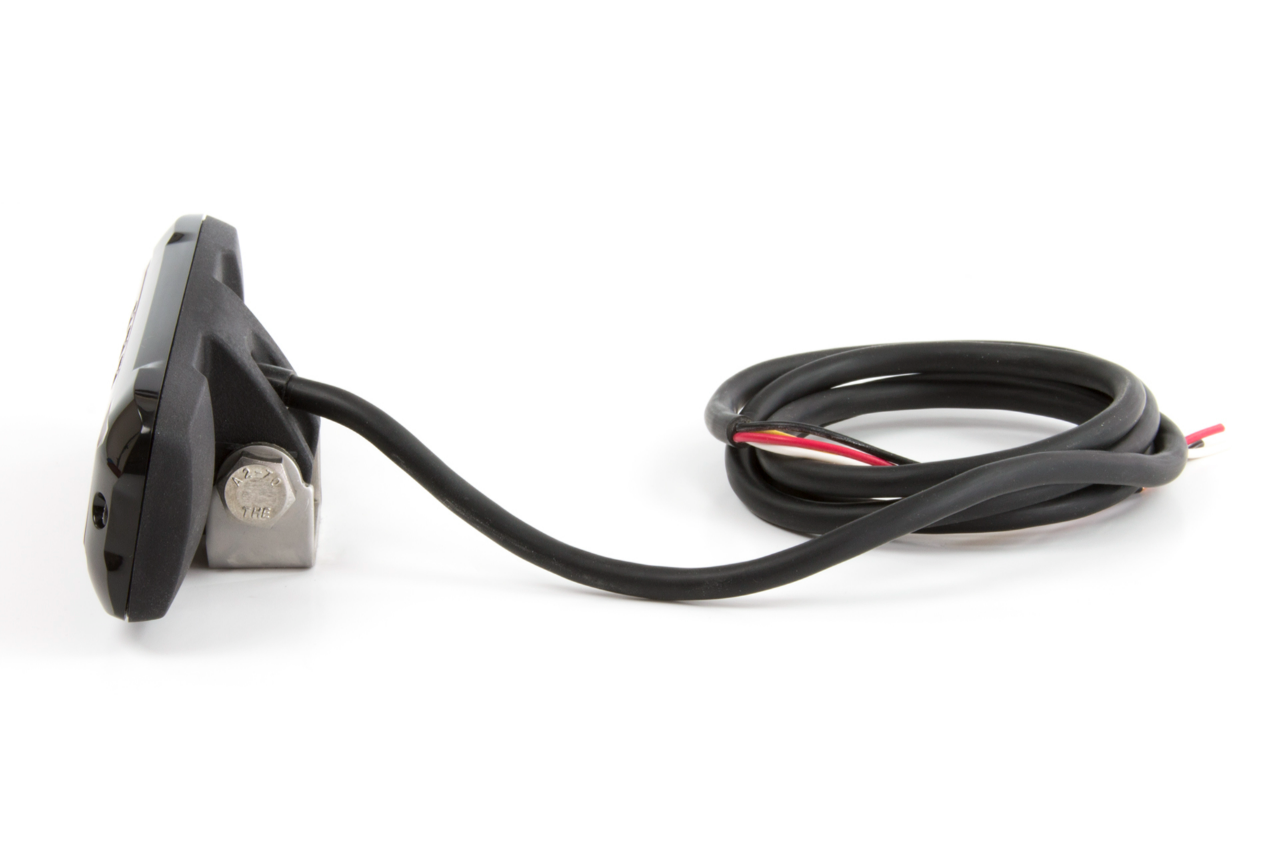

  • Max. Power: 21.1 Watts Wires: Red-Vcc : 25cm (20AWG) / Black-GND : 25cm (20AWG) / White-Low Power : 25cm (20AWG) / Yellow-Sync & Functions : 25cm (20AWG)
  • Fuse Recommended: 3A
  • Available in: RED, BLUE, AMBER, WHITE
  • Part no: LEDDXT12

LEDDXT12-B
