PRODUCT DESCRIPTION

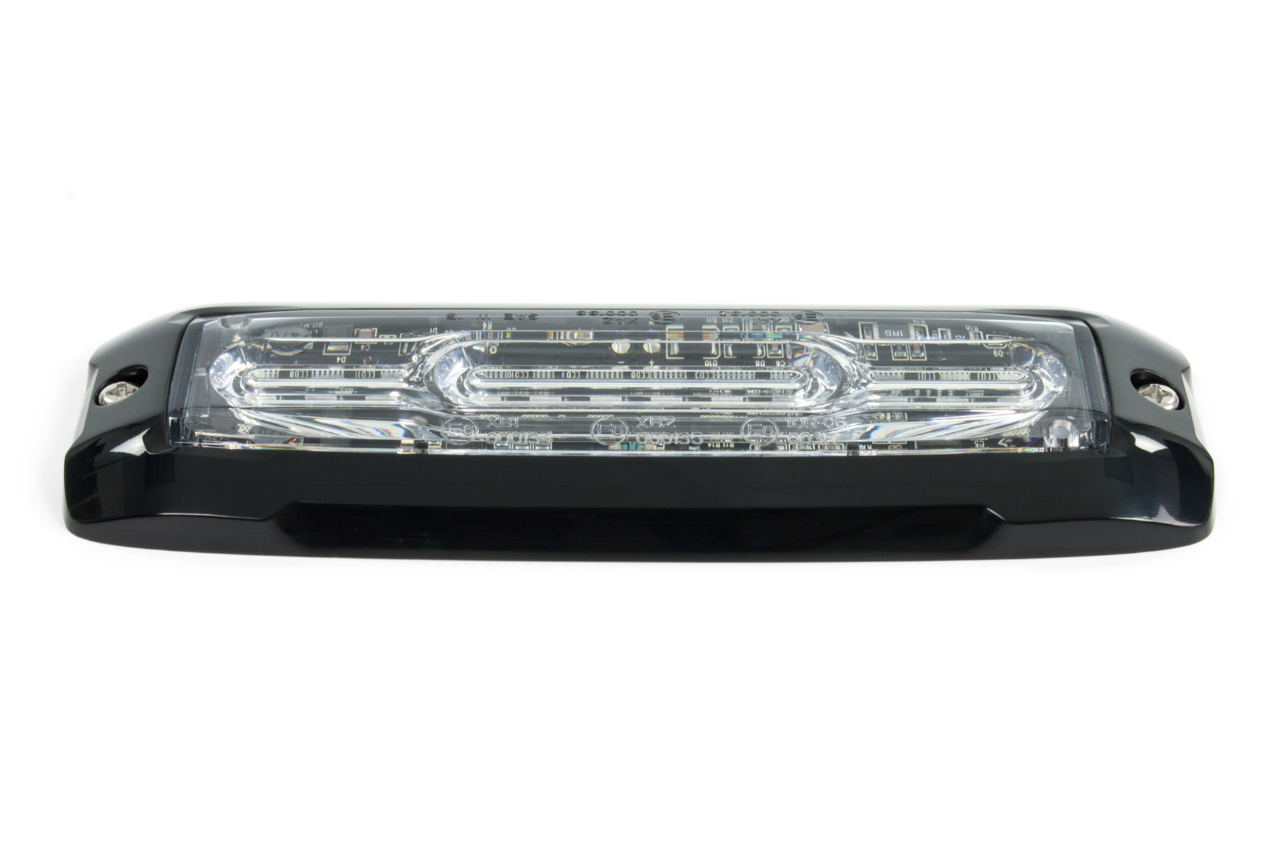

The XT12 Surface Mounted Dual Colour Lamps (M57) is a new generation of LED warning lighting. The Xtreme Thin series offers a low profile thickness combined with a dual-color technology that allows you to switch from one colour to the other or alternate between both.
Note: Blue flashing lights may only be used on vehicles used by the emergency services, law enforcement, defence forces and some voluntary organisations. To purchase any blue/red light from Euromotive, you must prove the end usage is for the mentioned services. Email us for more information: office@euromotivegroup.com
Dimensions: 132.6mm (L) x 45mm (H) x 10mm (D)
Features:
- New Generation Xtreme optic for wide angle visual and classic aesthetics.
- 12LED Single colour or 6+6LED Dual colour option.
- 3 Independently controlled warning memories for 3 pre-selected flash pattern and colour mode
- Steady-burn pattern for scene/flood light.
- SAE and ECE R65 certified high power output.
- ECE R10 EMC Compliance.
- 0.39 (10mm) Super low-profile thickness.
- Long life LEDs rated to 100,000 hours of operation.
- Non-volatile memory recalls last flash pattern used at power up.
- Multi-units synchronization in simultaneous or alternating flash.
- Reverse polarity protection.
- Weatherproof and vibration resistant design for internal or external use.
- Solid aluminum base for efficient heat dissipation.
- Clear or colour lens options.
Specifications:
- Compliance: SAE J595 Class1, CA13 Class B (R/A/B), ECE R65 (XA1, XB1, XR1), ECE R65 (XA2, XB2, XR2) (12LED Single Colour only), ECE R10, IPX8
- LED Element: High-power LED x 12pcs
- No. of Warning Patterns: 16 Flash Patterns
- Operating Voltage: 12~24VDC
- Avg. Current: 0.8A @12VDC / 0.4A @24VDC (varies with flash pattern)
- Avg. Power: 8.6 Watts (varies with flash pattern)
- Max. Current: 1.6A @12VDC / 0.8A @24VDC
- Max. Power: 19.2 Watts
- Wires: Red-Vcc : 26.5cm (20AWG) / Black-GND : 26.5cm (20AWG) / White-Low Power: 26.5cm (20AWG) / Yellow-Sync & Functions : 26.5cm (20AWG)
- Fuse Rating: 2A
- LED Colour: Red, Blue, Amber, White
- Lens Colour: Clear, Red, Blue
- Part no: LEDDXT12
