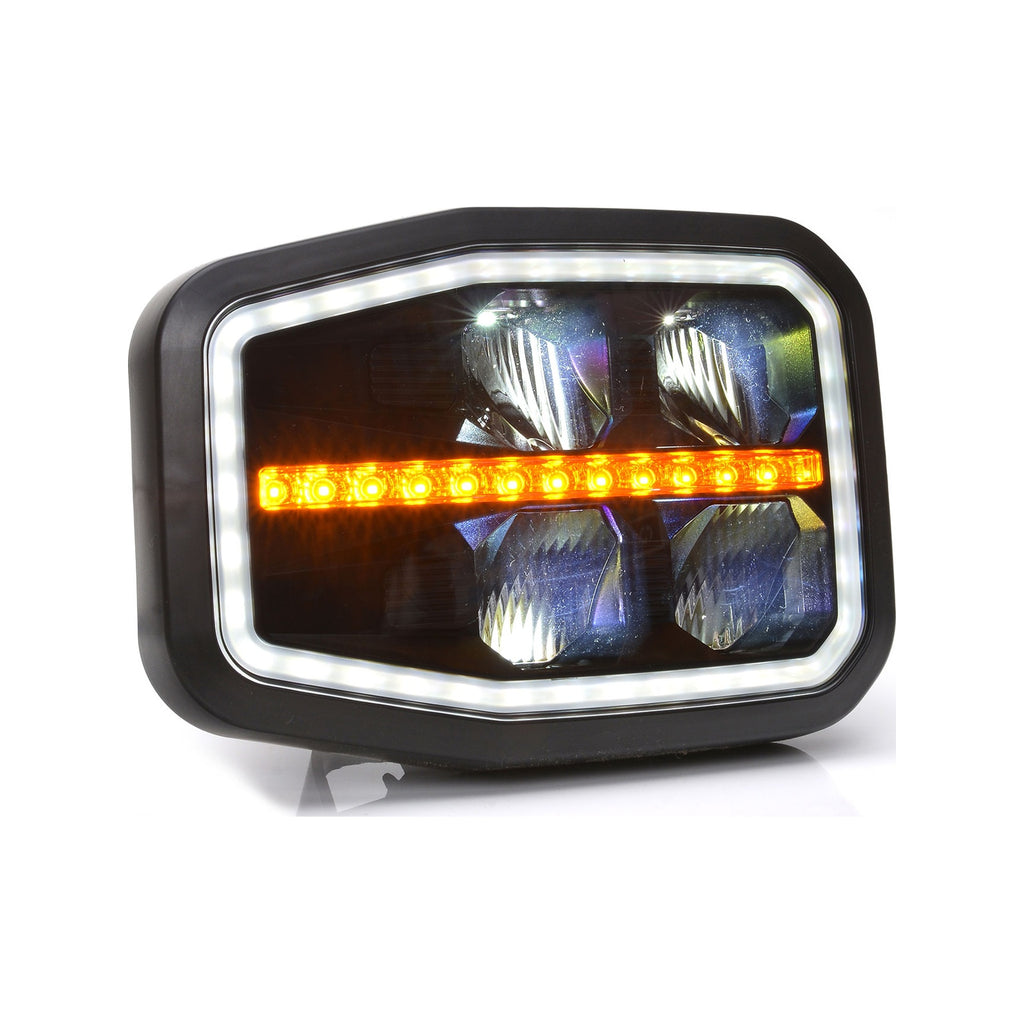

WAS W188 1334 P B front combination lamp
WAS W188 1334 P B unlit front view

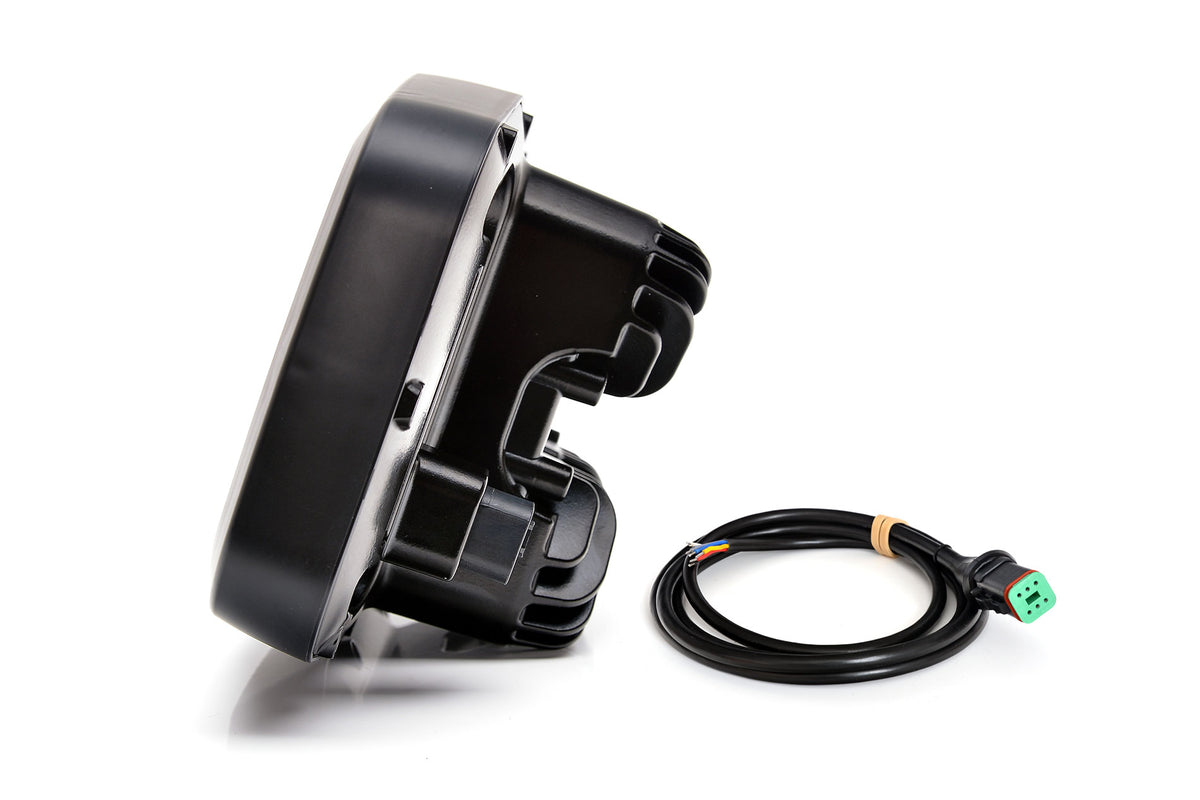

WAS W188 1334 P B side and connector view

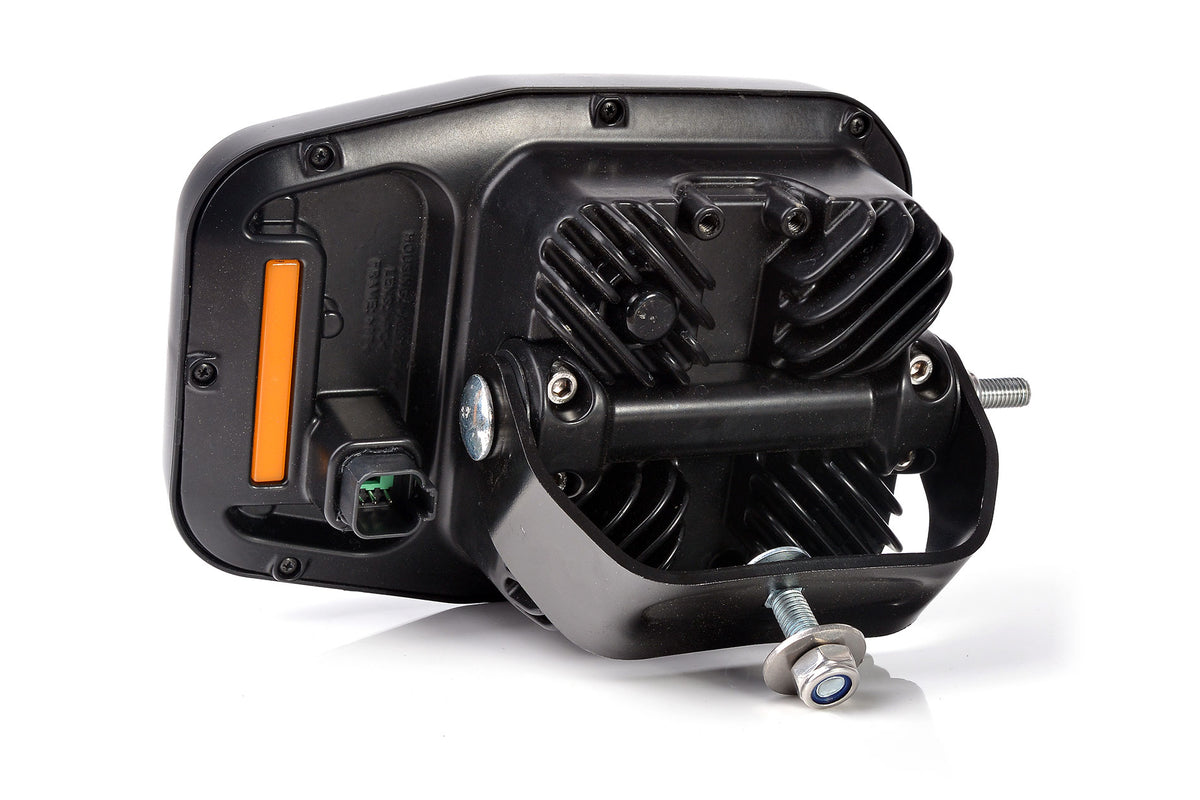

WAS W188 1334 P B rear and bracket view

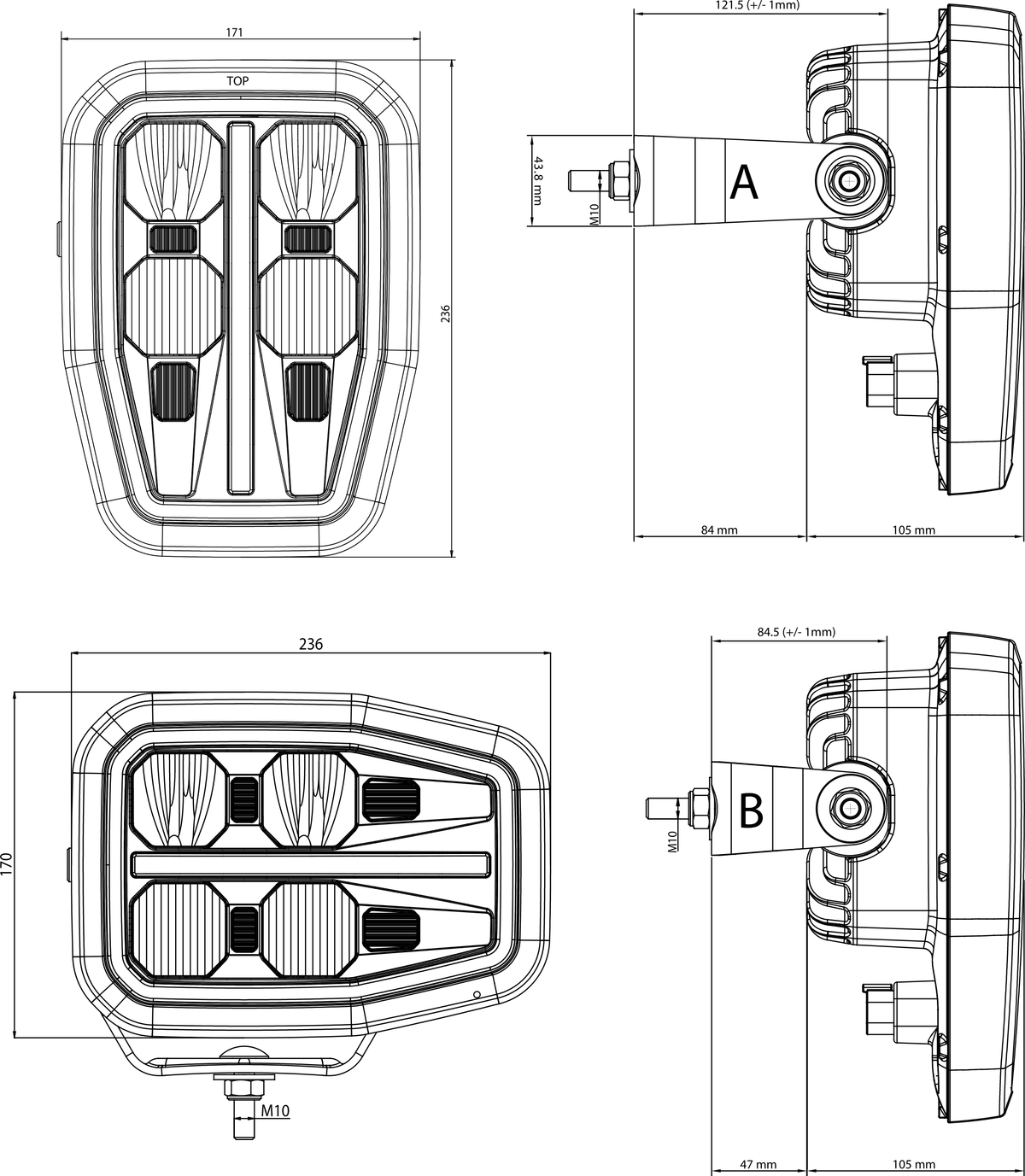

WAS W188 technical drawing with measurement and bracket dimensions

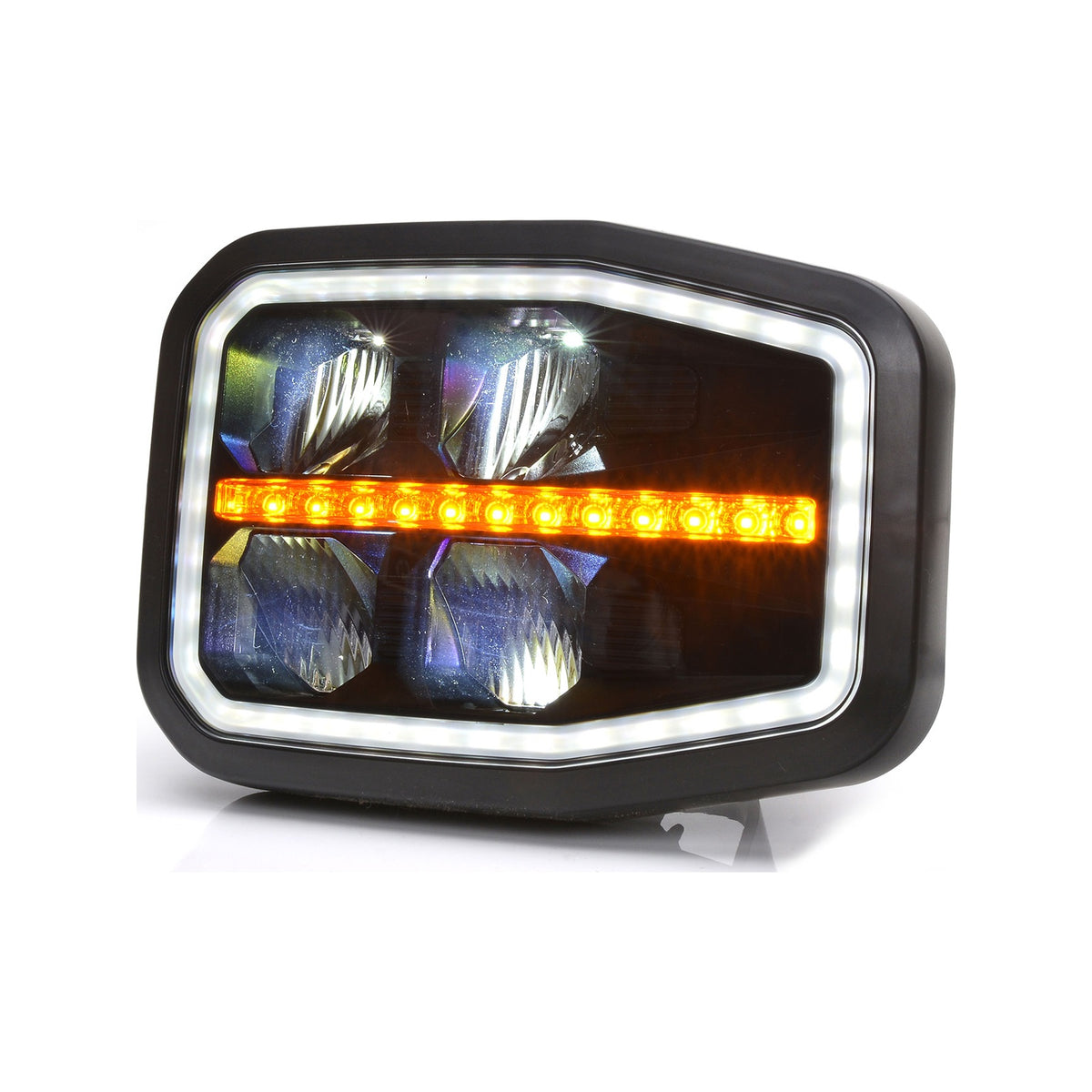

WAS W188 1334 L B front combination lamp with short bracket

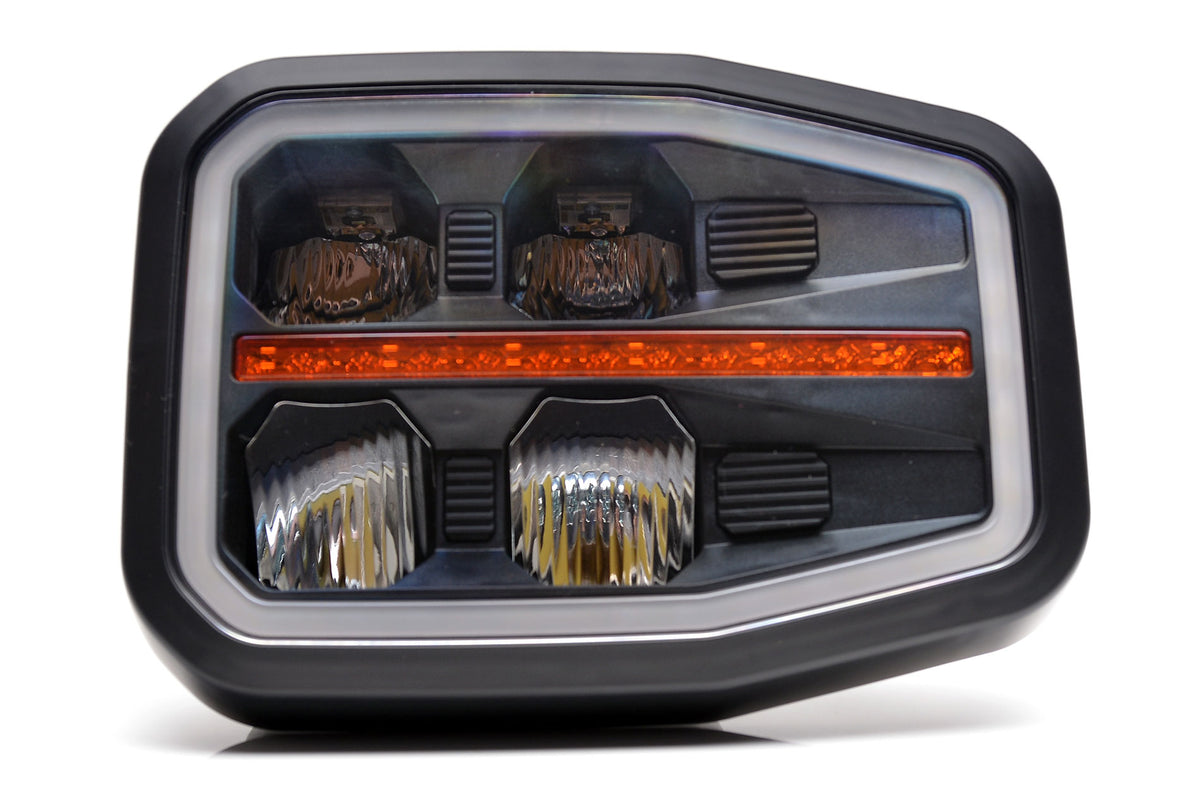

WAS W188 1334 L B unlit front view

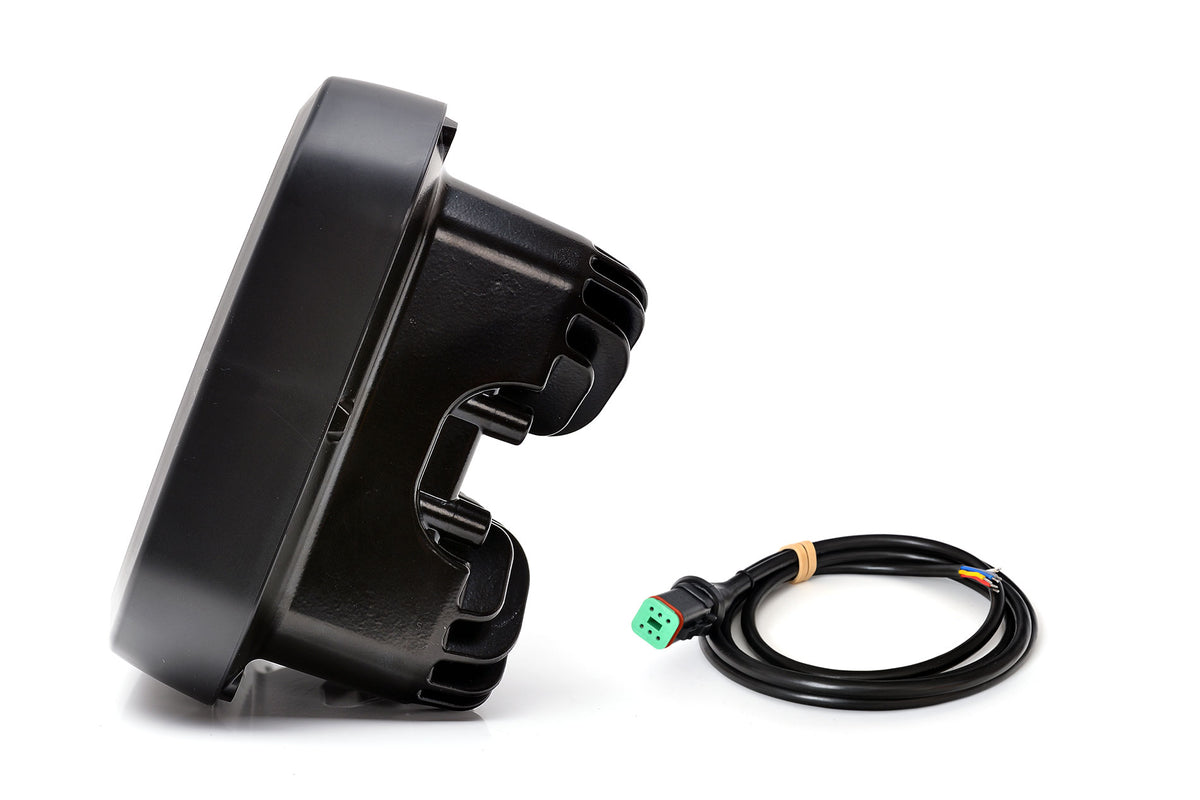

WAS W188 1334 L B side and connector view

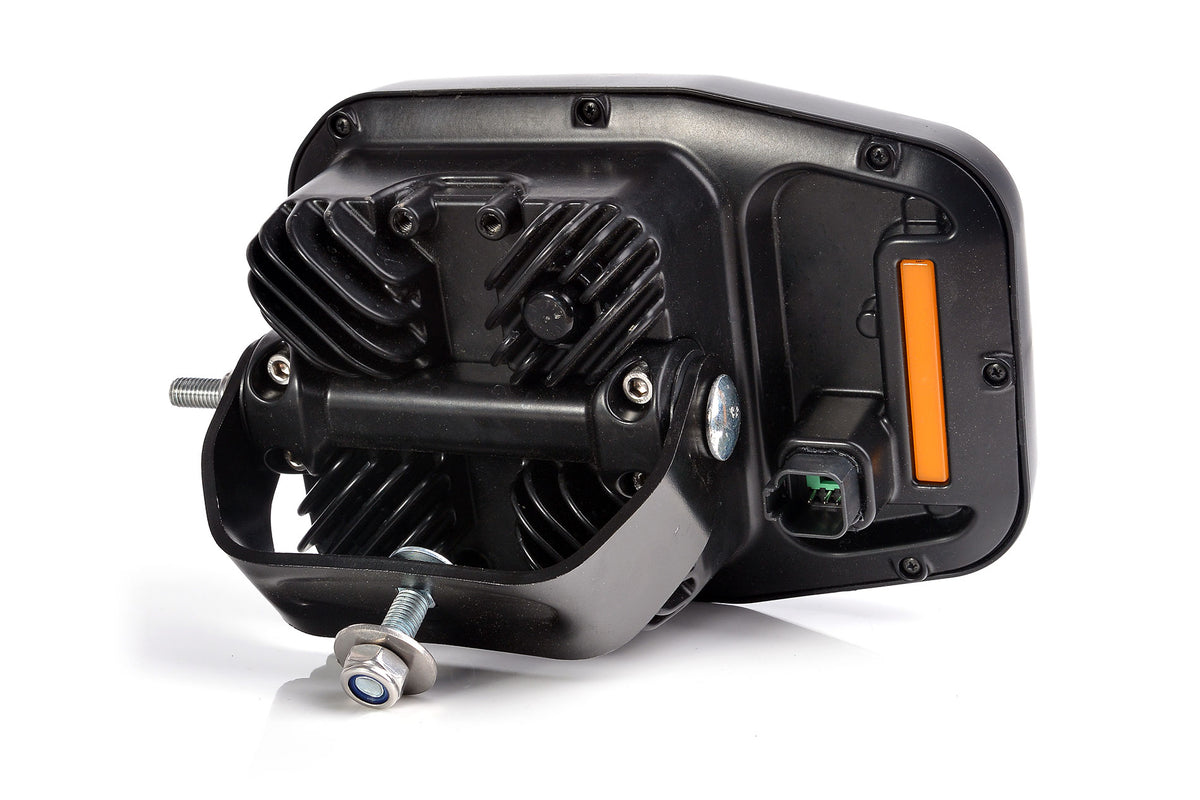

WAS W188 1334 L B rear and short bracket
Roll over image to zoom in Click on image to zoom
WAS W188 1334 P B front combination lampWAS W188 1334 P B unlit front viewWAS W188 1334 P B side and connector viewWAS W188 1334 P B rear and bracket viewWAS W188 technical drawing with measurement and bracket dimensionsWAS W188 1334 L B front combination lamp with short bracketWAS W188 1334 L B unlit front viewWAS W188 1334 L B side and connector viewWAS W188 1334 L B rear and short bracket

WAŚ W188 6-Function LED Front Combination Lamp – 12–24V

WAŚSKU: EC1334PB
Mounting version: Right
Price:
€427,22 EUR
Stock:
Sold out
>

Description

The WAŚ W188 combines six LED lighting functions in one front lamp: low beam, high beam, daytime running light, front position light, front indicator and side indicator.

Both options use short bracket B. Select Left or Right above:

  • Right side / Short bracket B: EC1334PB, supplier model 1334 P B
  • Left side / Short bracket B: EC1334LB, supplier model 1334 L B

Traffic compatibility: WAS specifies these versions for right-hand traffic—vehicles travelling on the right side of the road. Check compatibility with your vehicle and intended use before ordering.

  • 12–24V operating voltage
  • Static front indicator (W188)
  • IP6K9K protection, as specified by WAS
  • 2 m connection cable and Deutsch connector
  • Aluminium housing with protective coating
  • Weight: 3 kg per lamp
  • Sold individually; each option includes only the selected lamp and bracket version

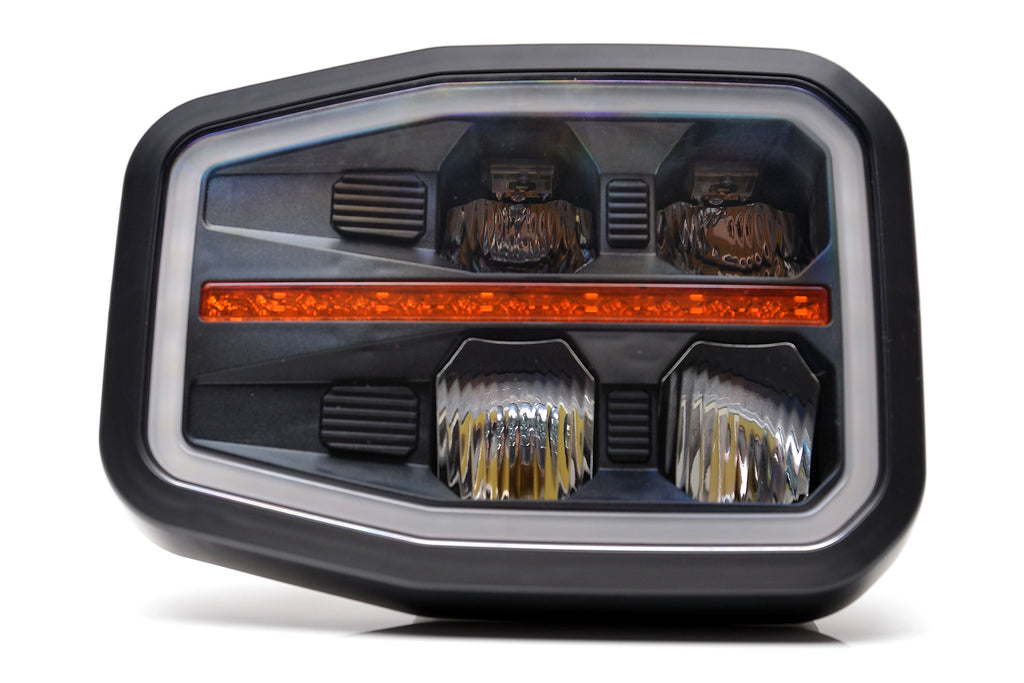

View the gallery for illuminated and unlit front views, side and rear views, and the manufacturer's technical drawing.
