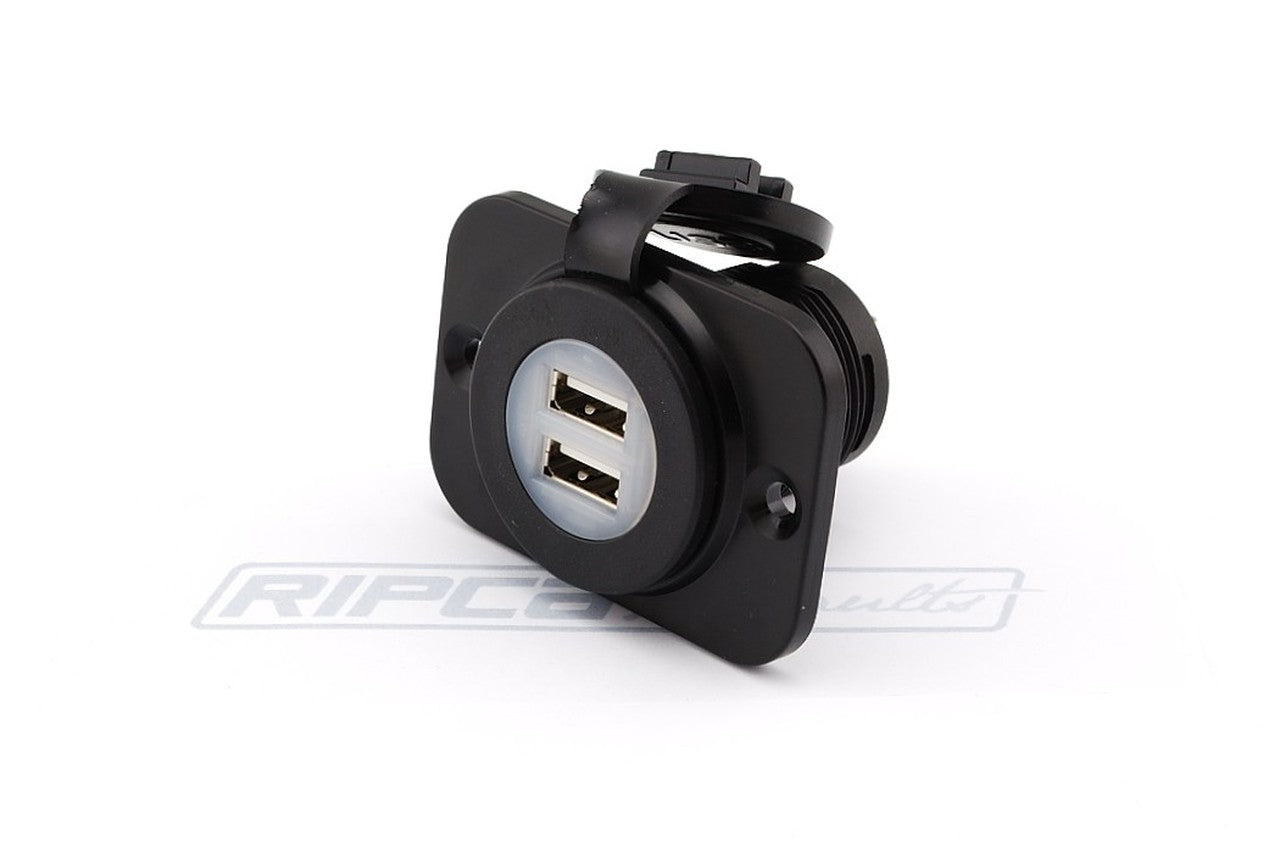

USB Dual Port with Cover & Flush Fitting

ELSSKU: USB-194PS

Price:
Sale price

Description

PRODUCT DESCRIPTION

Recessed power socket for 12V or 24V systems featuring twin hi-power USB ports for fast-charging of ipads, smart-phones, tablets and other mobile devices whilst on the move. This socket provides 10W (2.1A @ 5V) which is the same power output as you'd get from your mains wall charger at home, ensuring that your devices re-charge in the minimum time. A blue LED illuminates the USB ports with a soft glow to indicate that the socket is powered.



It features a tethered rubber cover and a rectangular faceplate which can be left off if you don't have the space to fit it or simply prefer it without. Nickel-plated brass terminals prevent corrosion and the cover protects the sockets from dirt and moisture when not in use. Suitable for cars, campervans, motorhomes, caravans, boats, motorbikes or any vehicle running 12V/24V.



The socket is mounted in a 29mm panel hole using a nut that screws over the threaded body. The faceplate is fixed through two holes using the screws provided and power connection is via two polarity-marked blade terminals.



Specification

Input voltage rating: 12V/24V DC

Output voltage rating: 5V DC

Output current rating: 2.1A max. (1A per socket if used simultaneously)

Material: Black impact resistant nylon and rubber cover

Terminal size and material: 6.3mm male blades (nickel-plated brass)

Panel hole dia: 29mm (optional 26mm anti-rotation flats)

Faceplate fixing hole dia: 4.2mm

Faceplate fixing hole centres: 48.5mm

Diameter of socket body without faceplate: 36.7mm

Faceplate depth: 6mm (excluding cover)

Overall dims: 60 (W) x 43 (H) x 53
