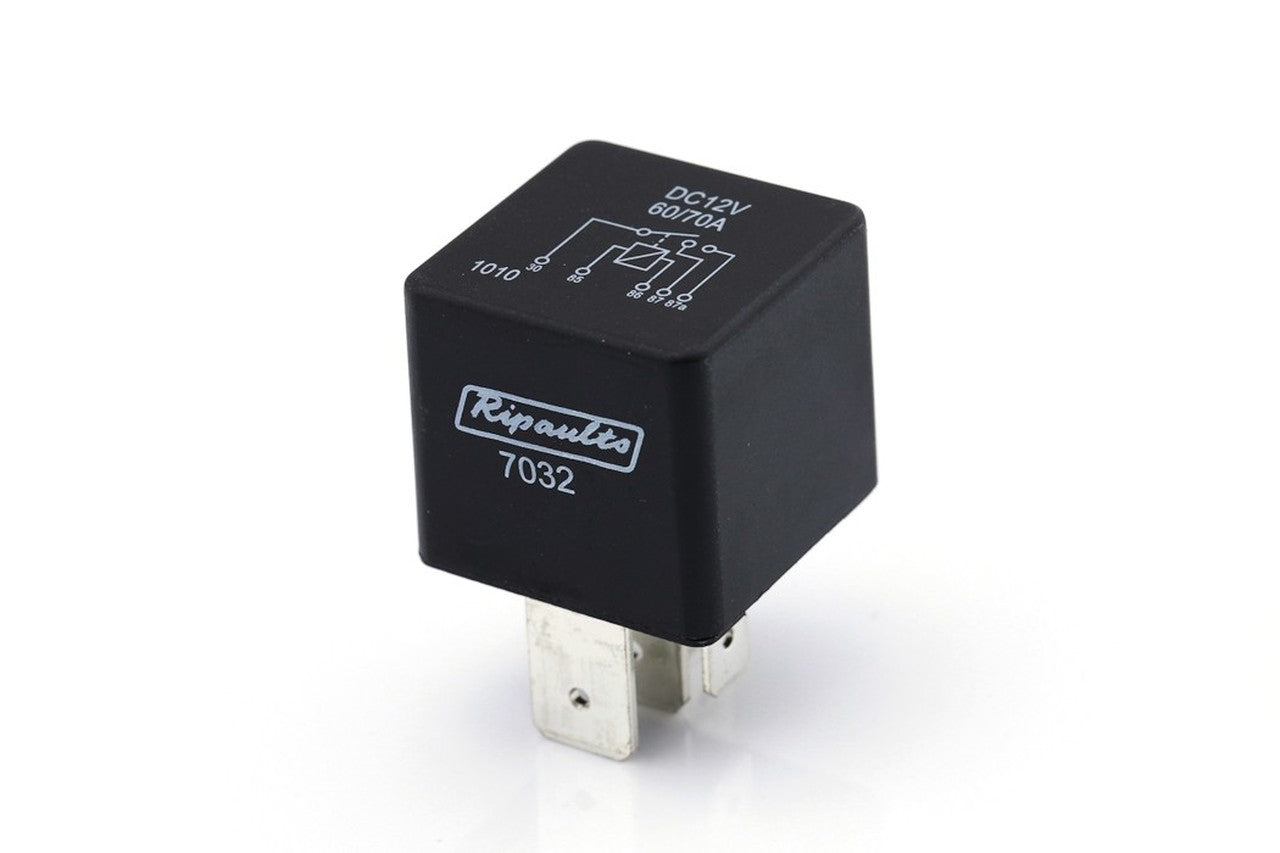

Starter Relay 12V 60-70A 5-Pins

ELSSKU: 7032-1

Sale price



Starter Relay 12V 60-70A 5-Pins

In a 5-pin starter relay, each pin serves a specific function to control the power flow in automotive electrical systems. Pin 30 is typically connected to the battery's positive terminal, providing the main power to the relay. Pin 85 is connected to the ground or negative terminal, completing the circuit for the relay's coil. Pin 86 receives the activation signal from the ignition switch or a control module, which energizes the relay's coil when the ignition is turned on. Pin 87 is the output pin that connects to the starter solenoid, carrying the high current needed to turn over the engine when the relay is activated. Lastly, Pin 87a is often referred to as the normally closed (NC) contact; it is connected to the circuit that is active when the relay is not energized, but it is disconnected when the relay is activated. This pin is not used in all applications and may be left disconnected if not required by the specific wiring configuration of the vehicle.

The 12V 60-70A 5-pin starter relay is an essential component for automotive electrical systems, providing the necessary power to start the engine. This heavy-duty relay is designed to handle high current applications, ensuring a reliable connection between the battery and the starter motor. With its robust construction, it can withstand the demanding conditions of a vehicle's starting system. The five pins provide multiple connections for versatility in various wiring configurations, making it a flexible solution for many automotive electrical needs. Its high amperage rating guarantees that it can manage the surge of power needed to turn over the engine, making it an ideal choice for vehicles that require a strong and dependable start. The starter relay is also relatively easy to install, with clear labeling on the pins to ensure correct wiring, thereby reducing the risk of misconnections and potential electrical issues. Overall, this starter relay is a high-quality, durable option for those in need of a powerful and reliable electrical component for their vehicle's starting system.
