PRODUCT DESCRIPTION

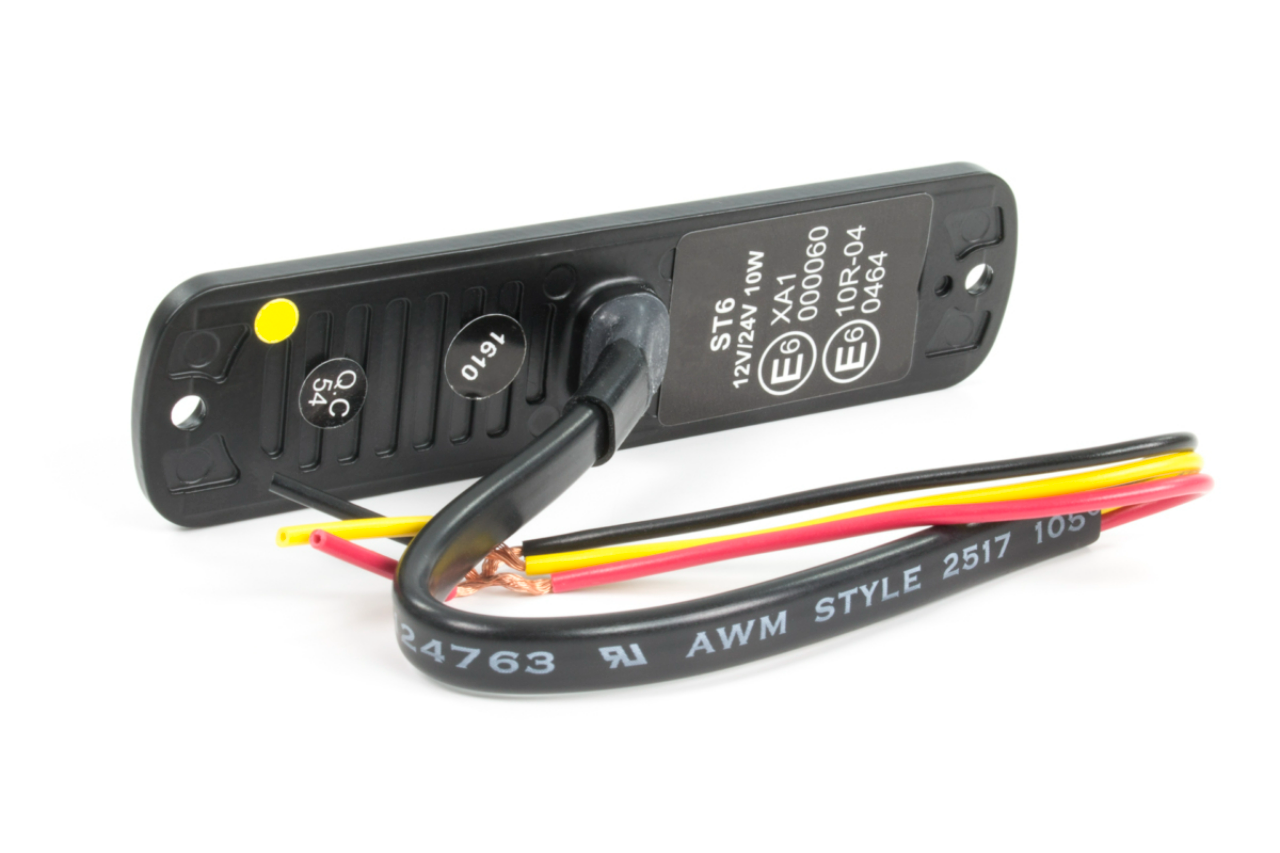

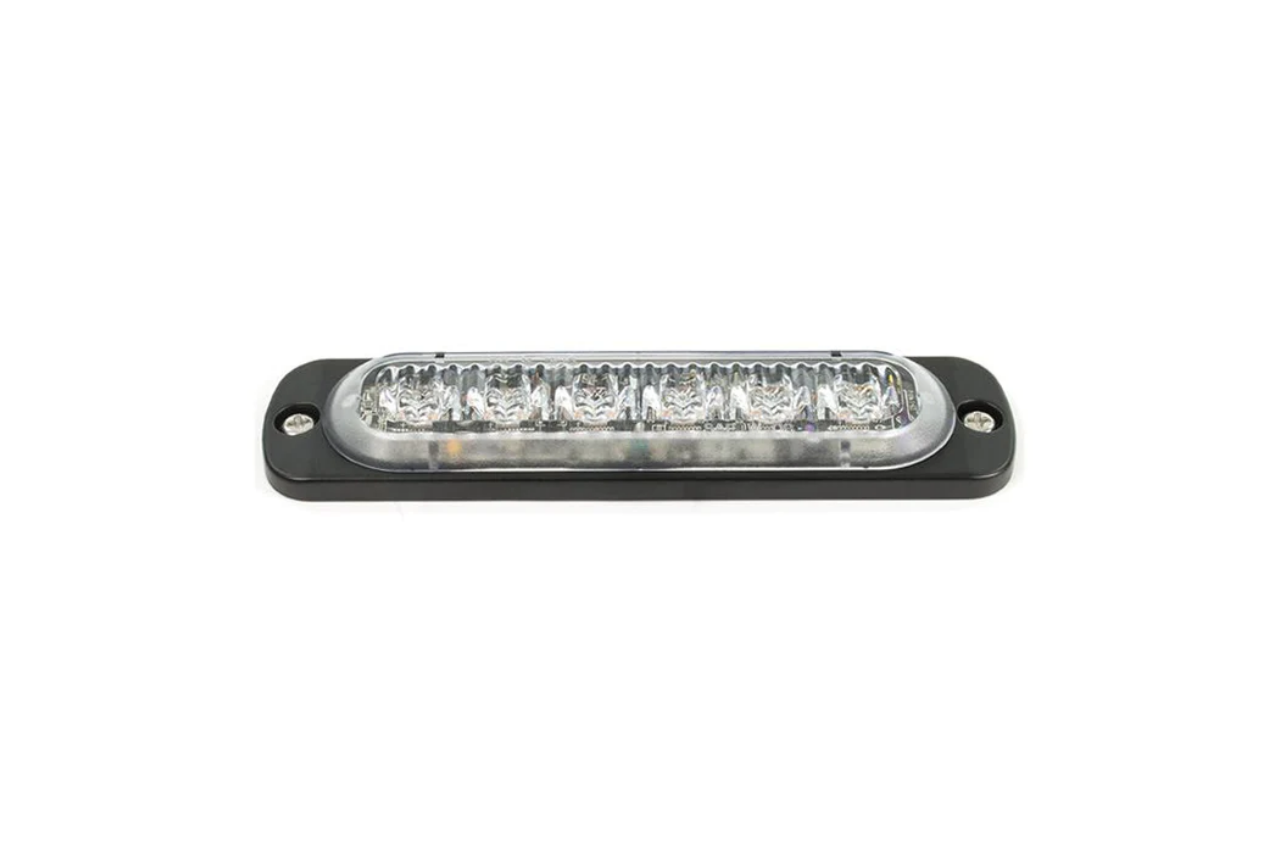

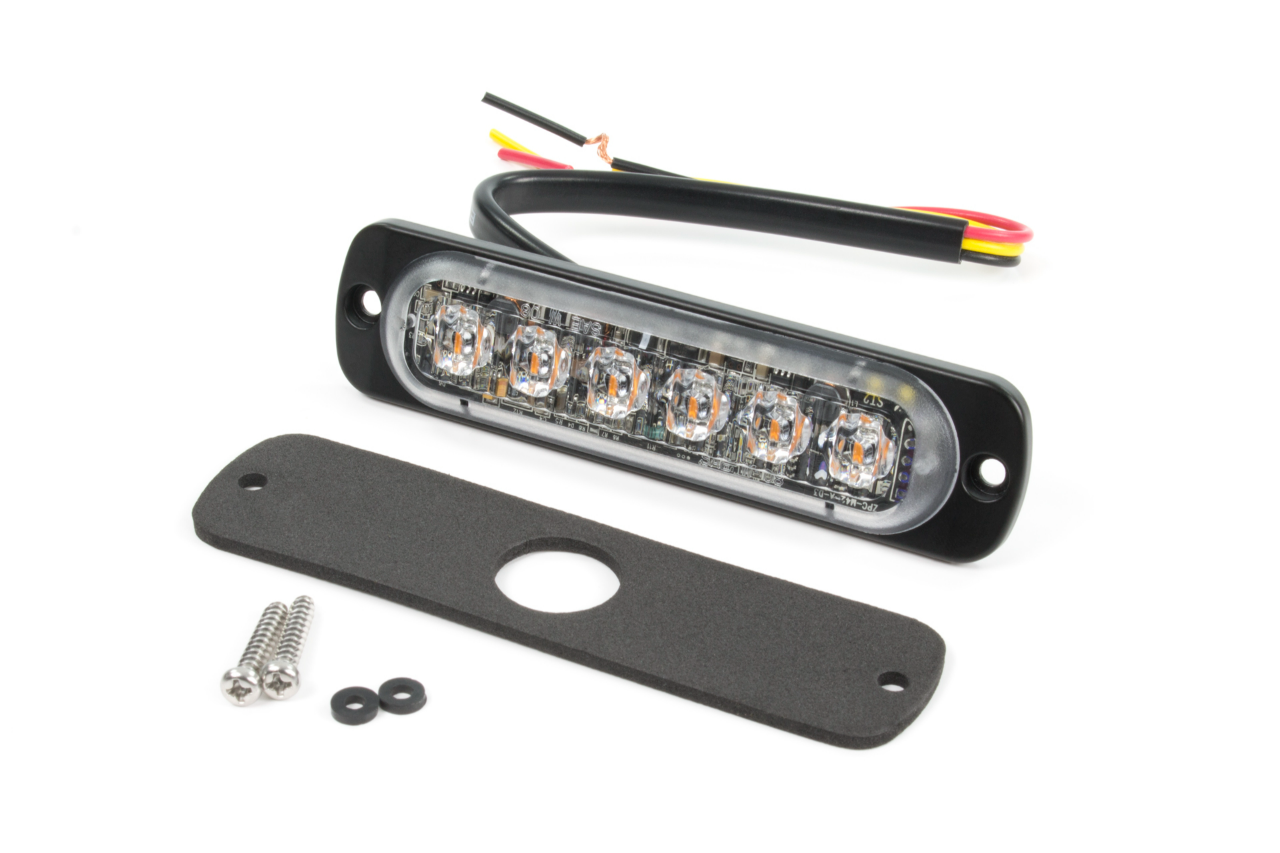

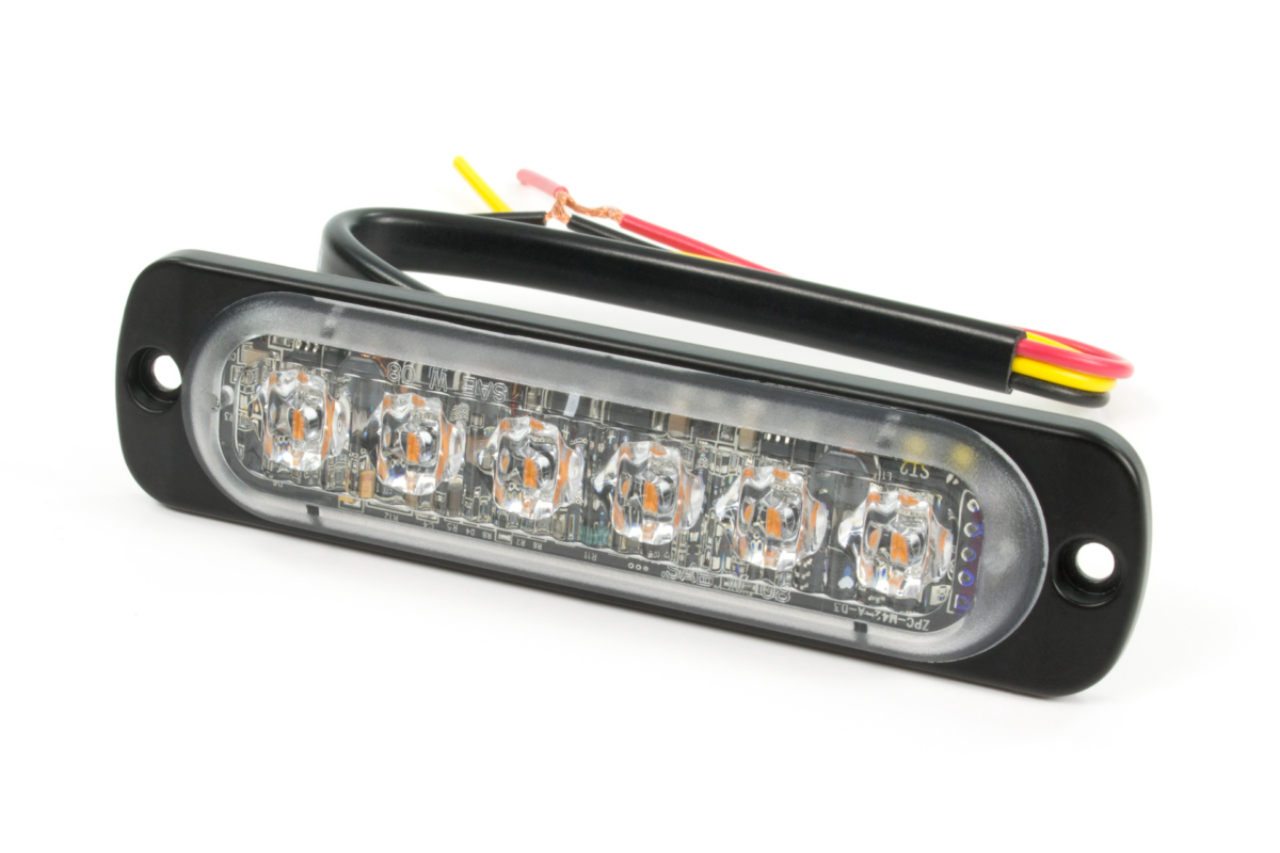

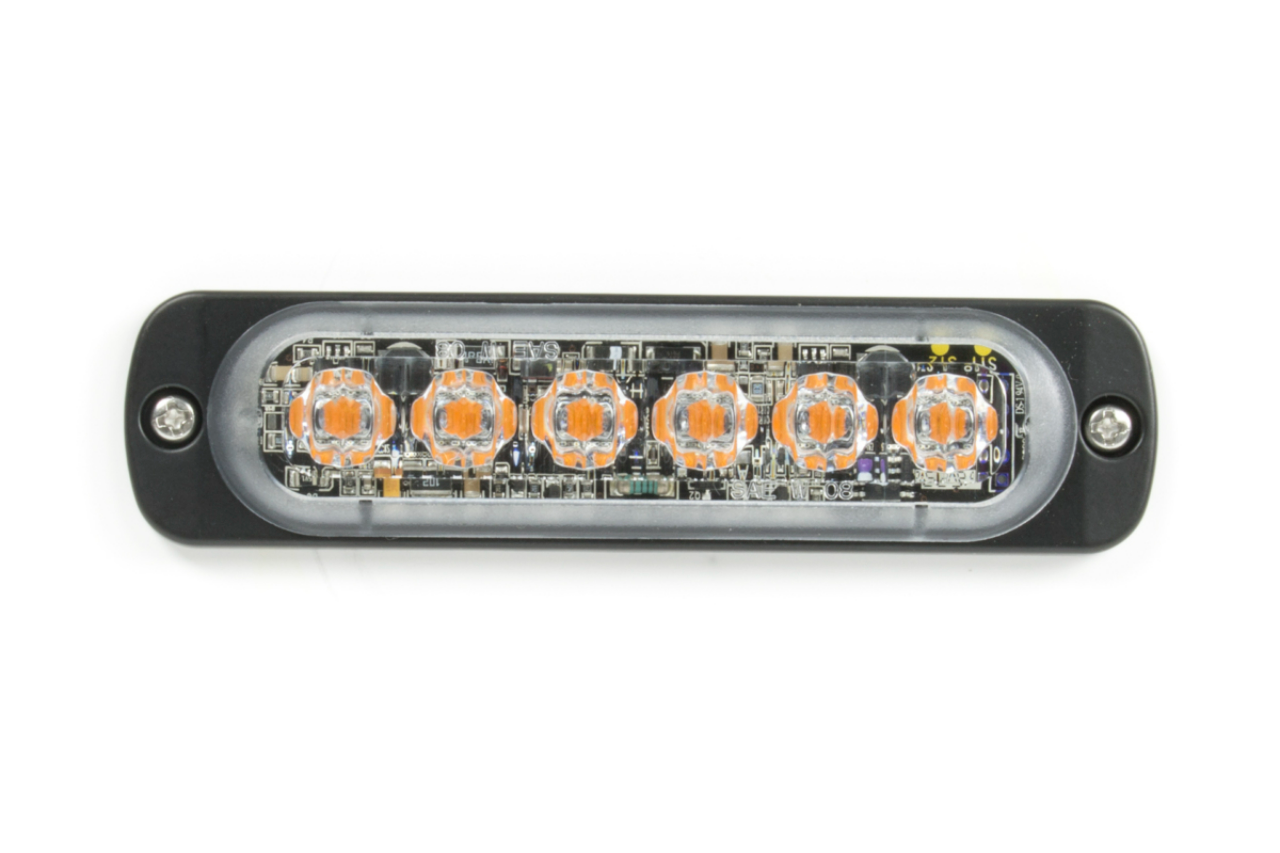

Super Thin 6 LED Directional Dual Colour - ST6
Dimensions: 112.6mm (L) x 28.1mm (H) x 9mm (D)
Features:
- World renowned ST6 is now available in 6+6 LED Dual Colour.
- Multi-memories design for instant switch between selected flash patterns and/or colours.
- ECE R10 EMC Compliance.

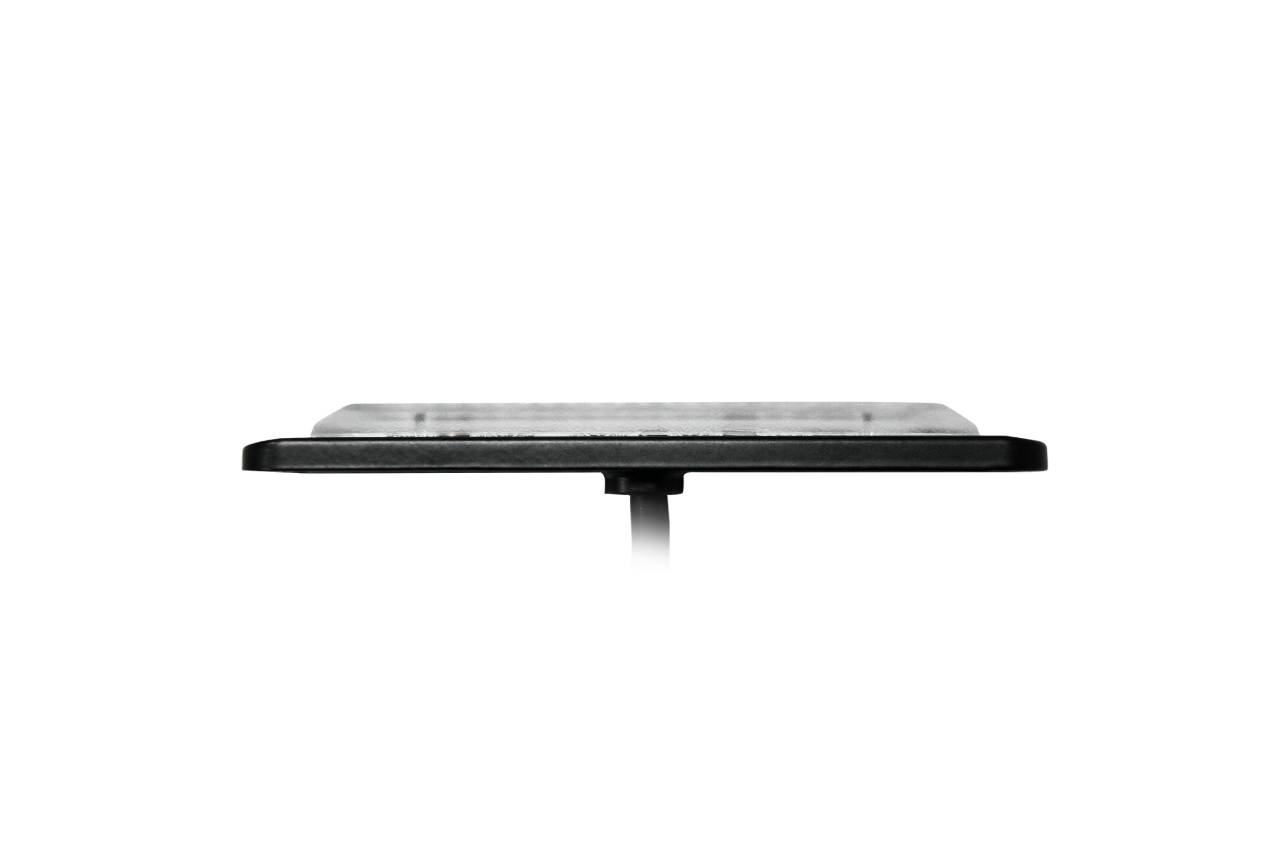

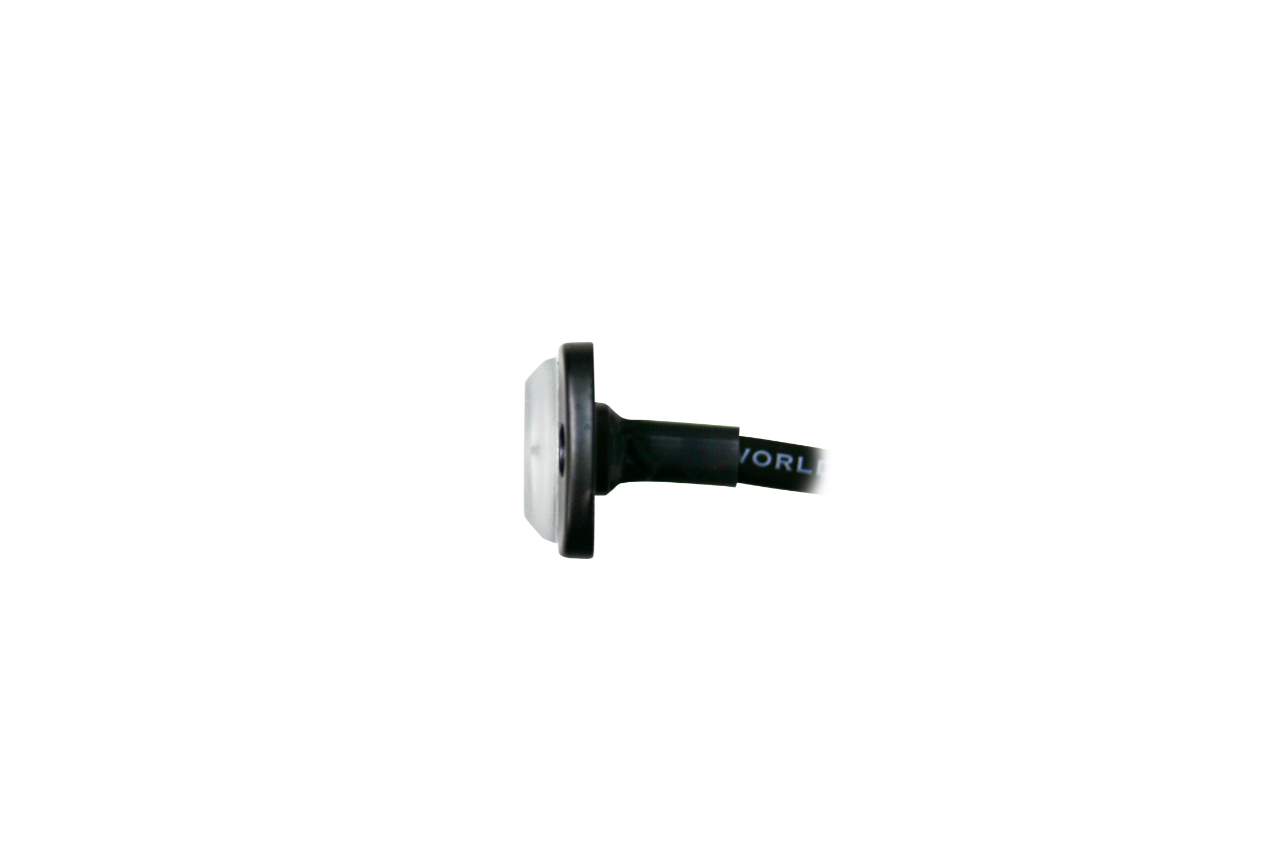

- 0.35” (9mm) Super low-profile optic with ECE R65 (XA1, XB1, XR1) and SAE Class 1 certified output.
- Self-contained; no external flasher required.
- Non-volatile memory recalls last flash pattern used at power up.
- Multi-units synchronization in simultaneous or alternating flash.
- Reverse polarity and load dump protection.
- Fully weatherproof and vibration resistant design for internal or external use.
- Solid aluminum base for efficient heat dissipation and maximum durability.
- Part No - LEDDST6
Specifications:
- Compliance: ECE R65 (XA1, XB1, XR1), ECE R10, IPX7, SAE J595 Class 1, SAE J845 Class 1, CISPRR 25
- LED Element: High-power LED x 12pcs
- No. of Warning Patterns: 28
- Operating Voltage: 12~24VDC
- Avg. Current: 0.44A @12VDC / 0.22A @24VDC (varies with flash pattern)
- Avg. Power: 5.2 Watts (varies with flash pattern)
- Max. Current: 0.87A @12VDC / 0.44A @24VDC
- Max. Power: 10.4 Watts

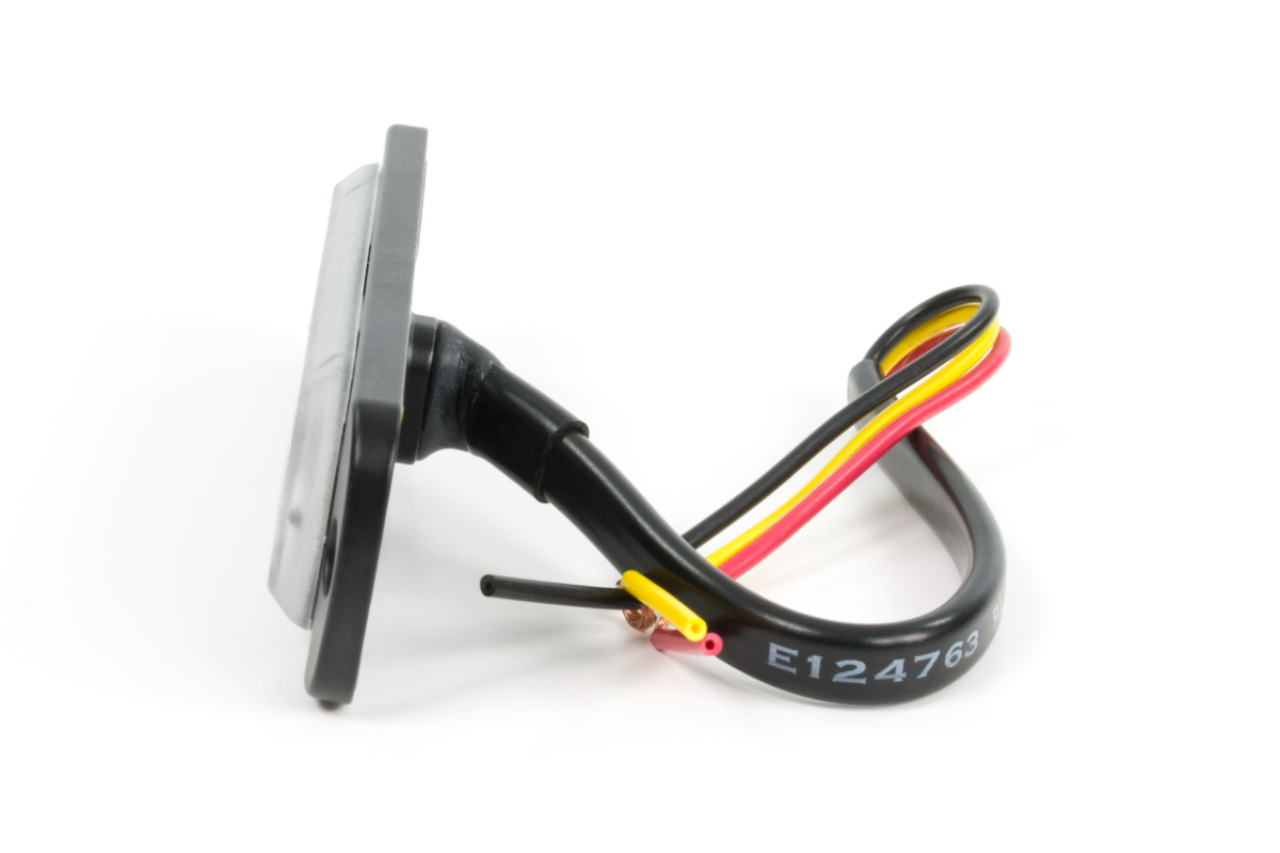

- Wires: Black - GND: 21cm (AWG) / Red - Warning Memory 1: 21cm (20AWG) / White - Warning Memory 2: 21cm (20AWG) / Yellow - Flash Patterns & Sync: 21cm (20AWG)
- Fuse Rating: 1A
- Synchronization: 15 Units
- LED Colour: Red, Blue, Amber, White (any 2 colours)
- Lens Colour: Clear
- Storage Temp. (°C): -40°C to +75°C
- Working Temp. (°C): -30°C to +65°C
- Warranty: 5 Years
