PRODUCT DESCRIPTION

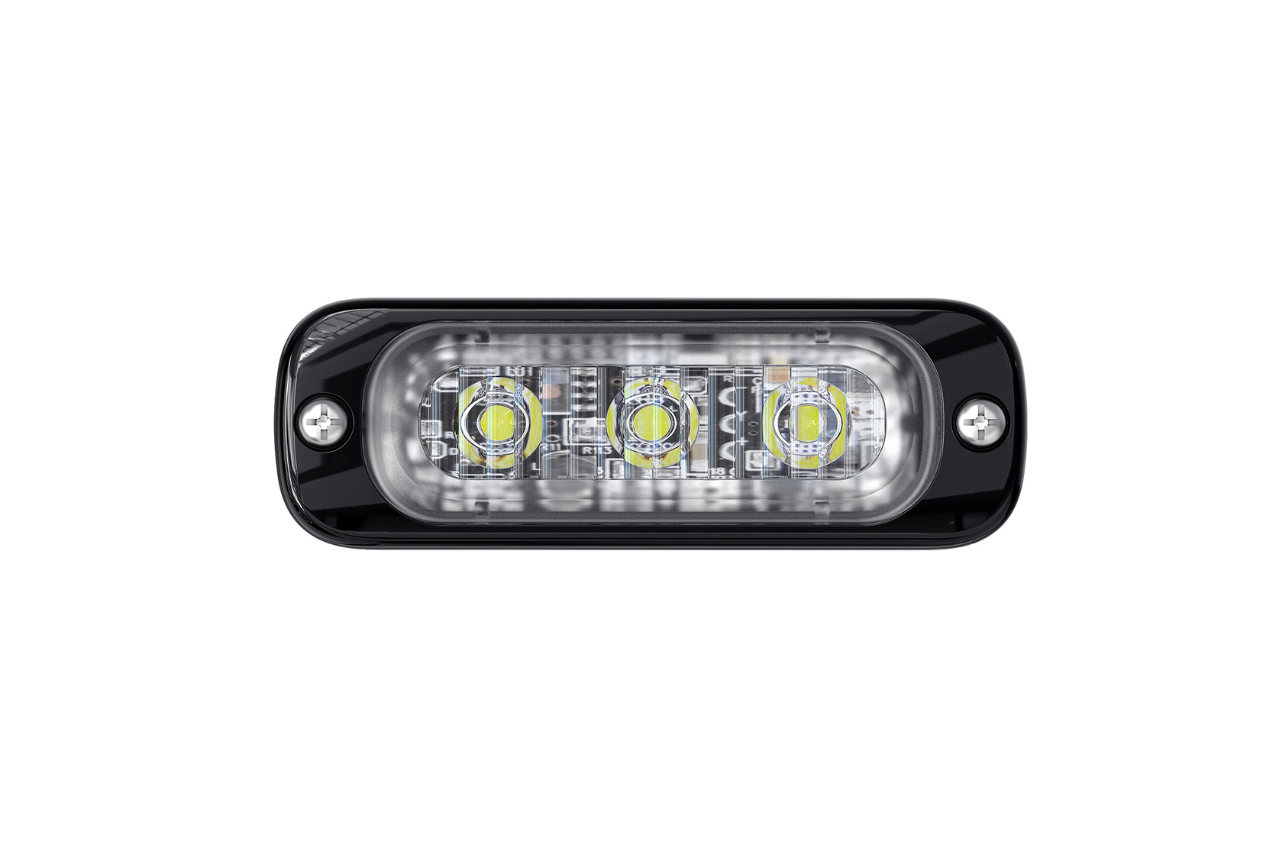

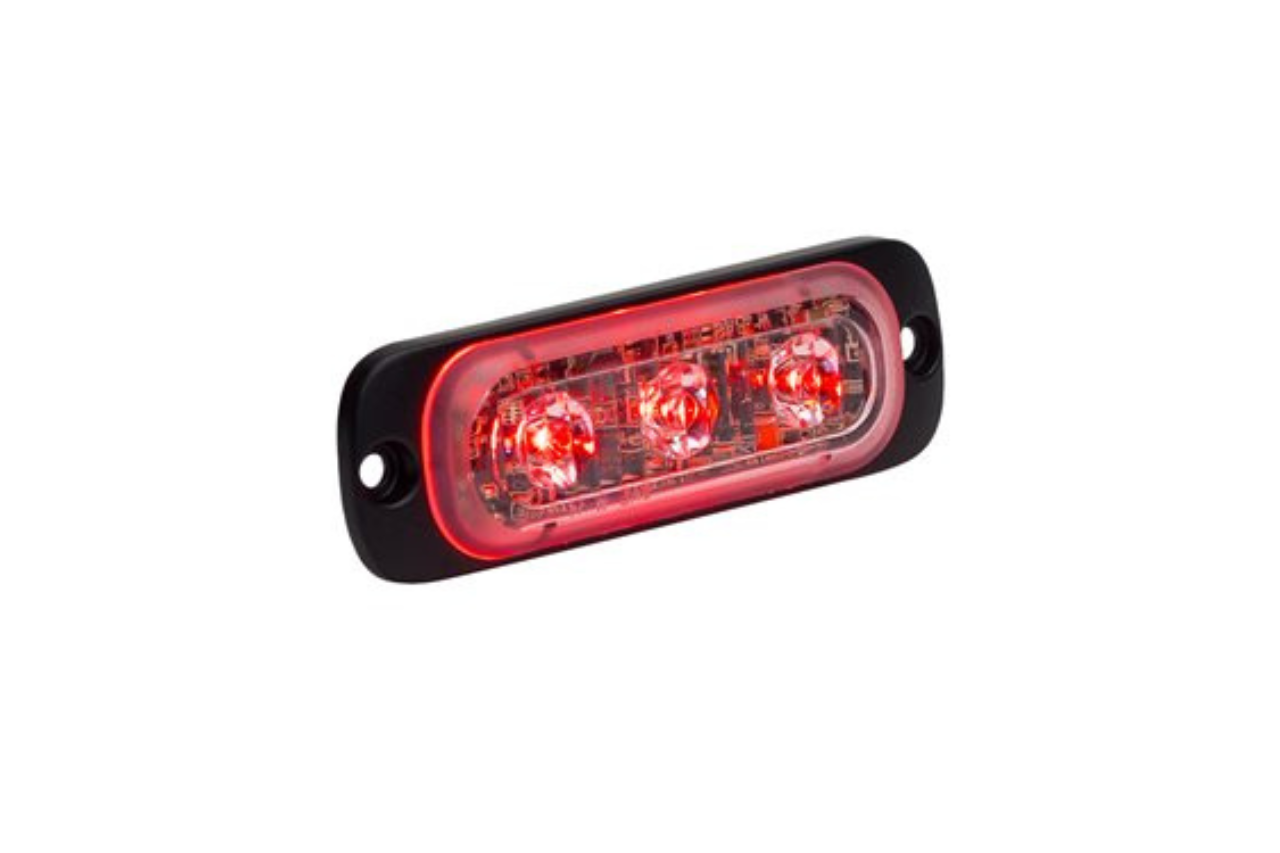

Super Thin ECE R65 3 LED warning lamp - ST3

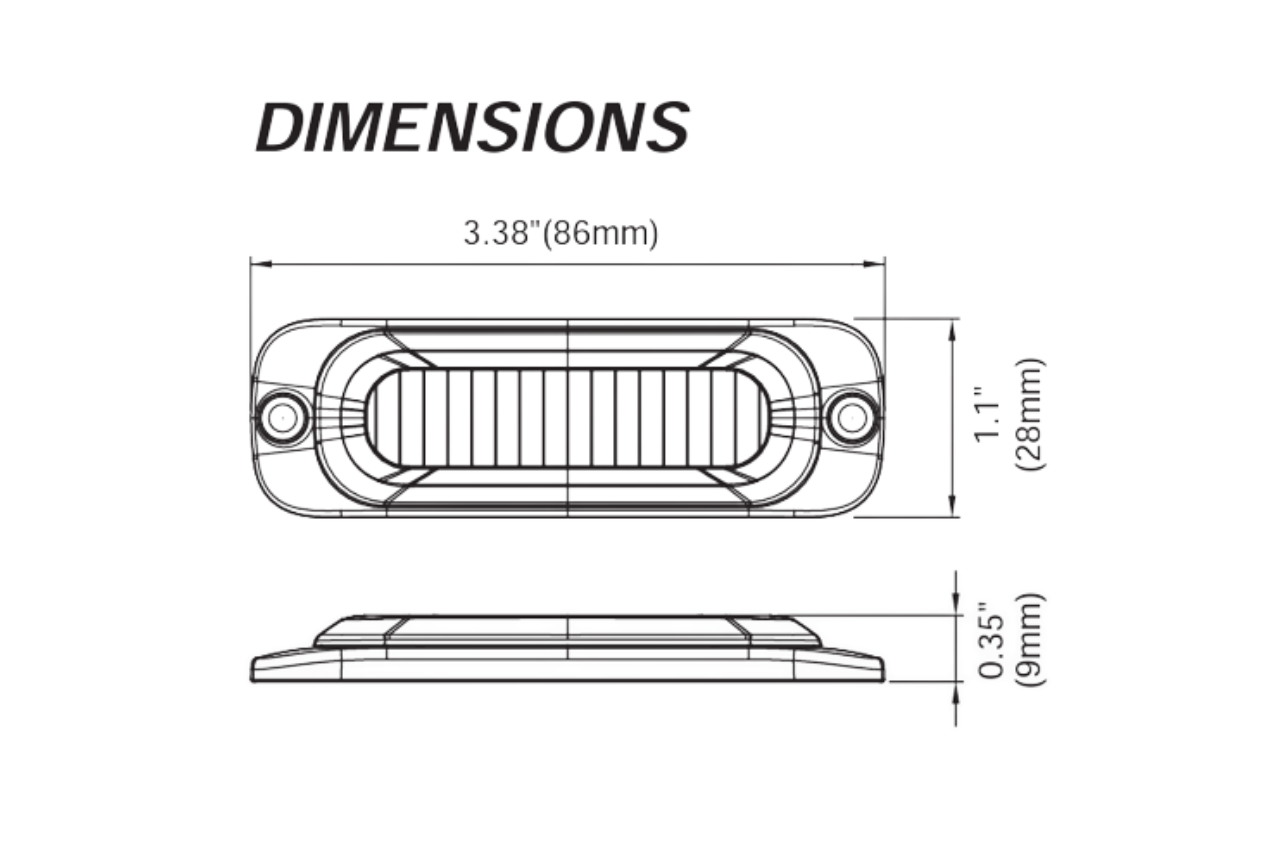

Dimensions: 86mm (L) x 27mm (H) x 10.6mm (D)
Features:
- 10.6mm super low-profile depth with powerful ECE R65 output
- 12/24V operation
- 16 built in flash patterns
- 100,000 rated hours of long-life LEDs
- Non-volatile flash pattern memory
- Multi-units synchronization in simultaneous or alternating flash
- Reverse polarity protection
- Weatherproof and shock proof
- Slim base design
- Aluminium base for durability and heat dissipation
- Part no. - LEDDST3
Specifications:
- Approval: ECE R65 Class 1 (XA1, XB1, XR1); ECE R10
- IP Rating: IP68
- LEDs: 3 x high power LEDs
- Flash Patterns: 16
- Voltage: 12/24V
- Average Current: 0.3A @ 12V / 0.15A @ 24V (varies with flash patterns)
- Average Power: 3.55 Watts (varies with flash pattern)
- Max Current: 0.59A @ 12V / 0.3A @ 24V
- Max Power: 7.1 Watts

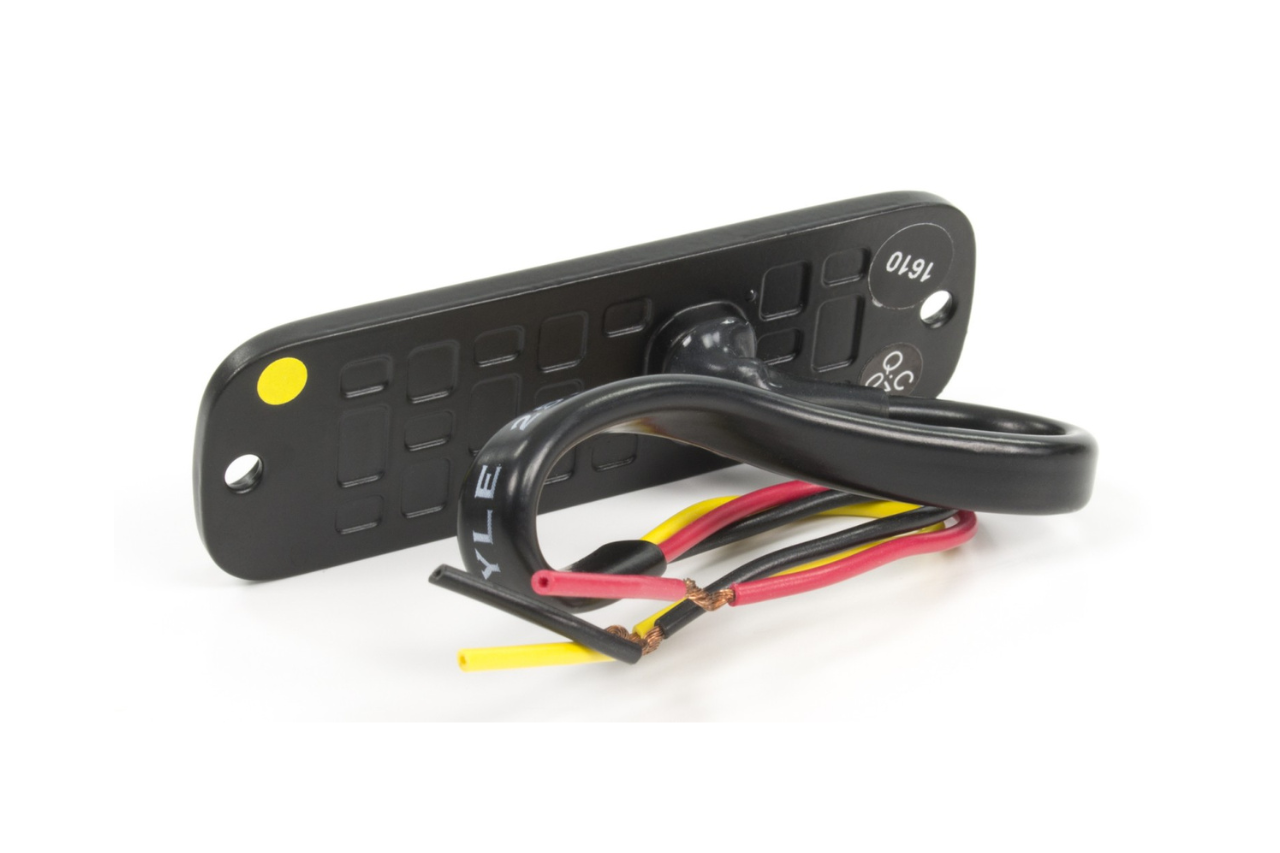

- Wires: Red-Vcc: 26.5cm (20AWG) / Black-GND: 26.5cm (20AWG) / Yellow-Flash Pattern: 26.5cm (20AWG)
- Recommended Fuse: 1A
- Max to Sync Together: Up to 15 lamps
- Colours Available: amber, blue, clear or red
