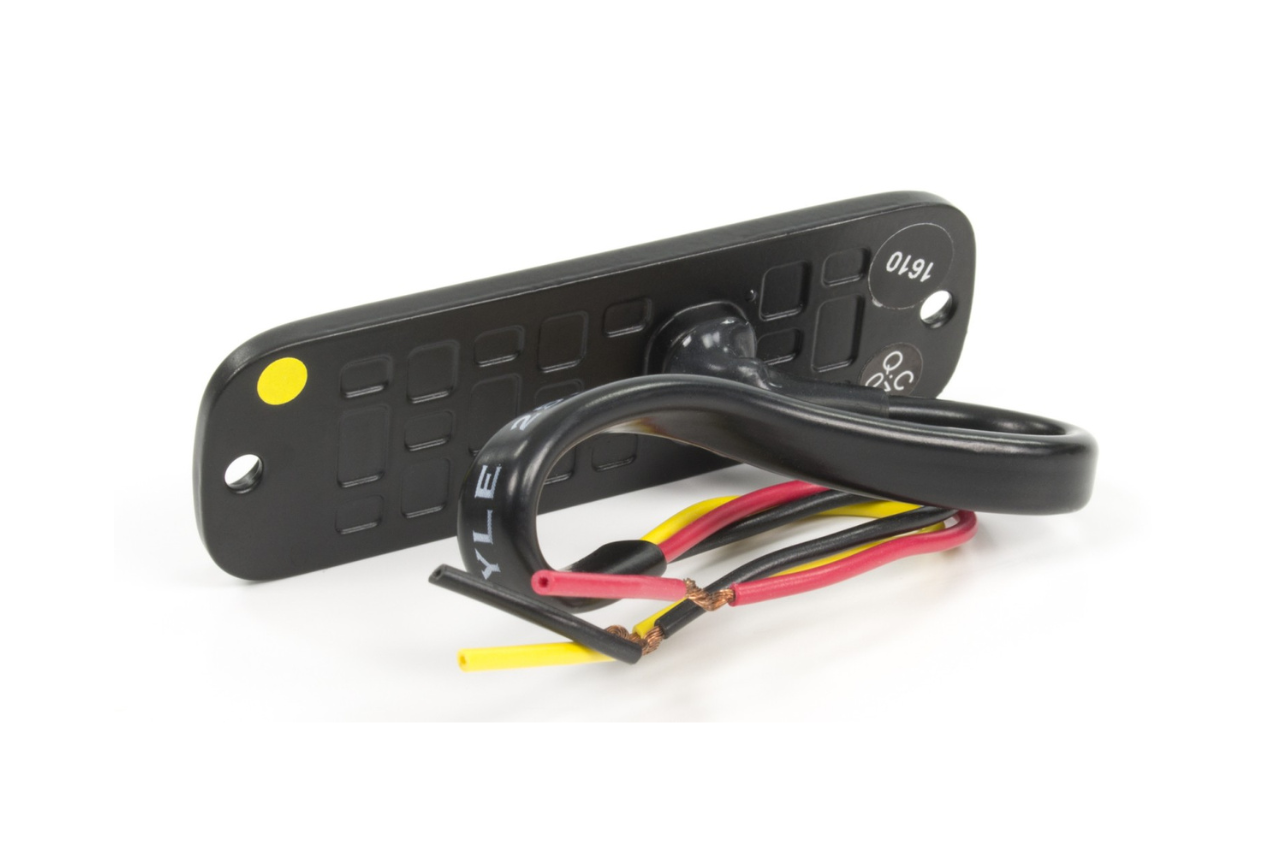

ST3 LED Directional Lamp - Super Thin Series Amber


Price:
Sale price
Stock:
In stock

Description

PRODUCT DESCRIPTION

Super Thin ECE R65 3 LED warning lamp - ST3

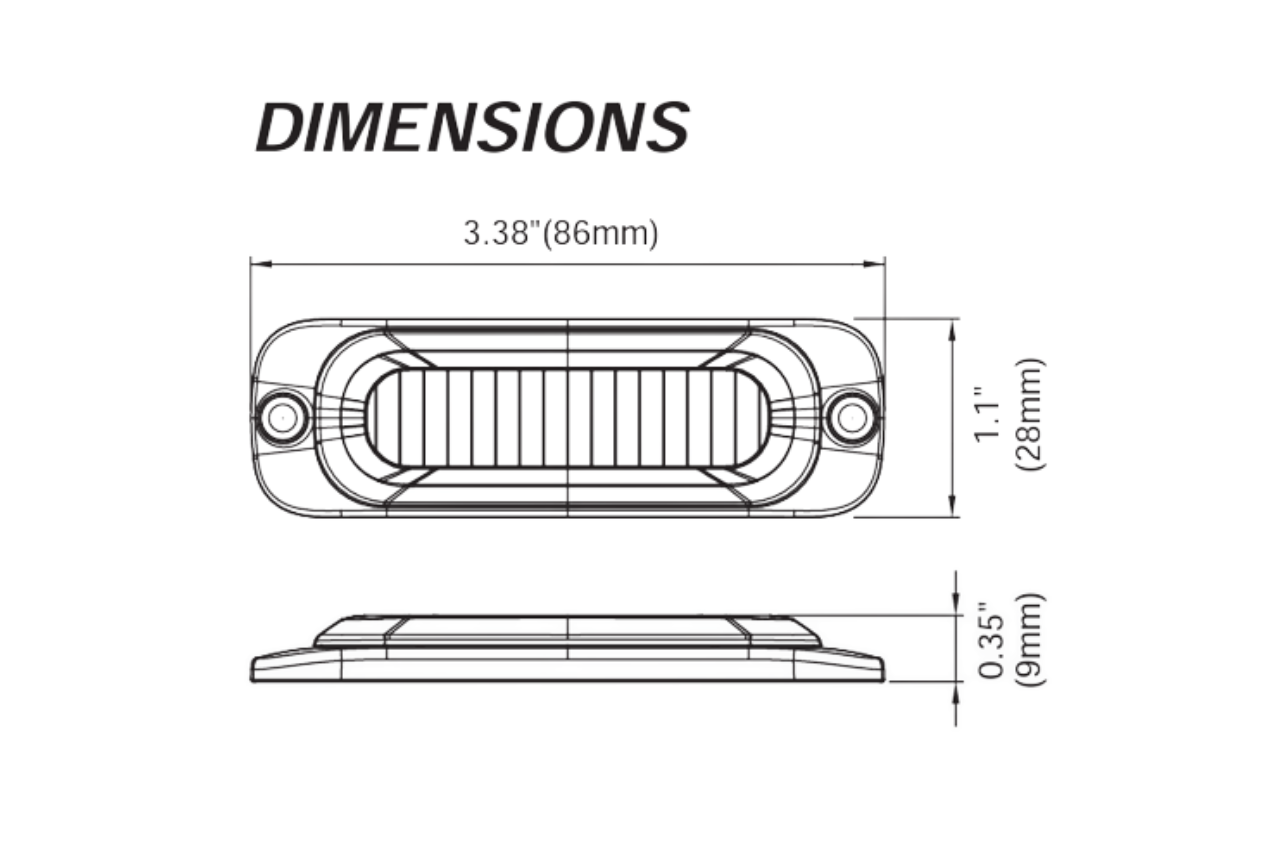

Dimensions: 86mm (L) x 27mm (H) x 10.6mm (D)

Features:

  • 10.6mm super low-profile depth with powerful ECE R65 output
  • 12/24V operation
  • 16 built in flash patterns
  • 100,000 rated hours of long-life LEDs
  • Non-volatile flash pattern memory
  • Multi-units synchronization in simultaneous or alternating flash
  • Reverse polarity protection
  • Weatherproof and shock proof
  • Slim base design
  • Aluminium base for durability and heat dissipation
  • Part no. - LEDDST3

Specifications:

  • Approval: ECE R65 Class 1 (XA1, XB1, XR1); ECE R10
  • IP Rating: IP68
  • LEDs: 3 x high power LEDs
  • Flash Patterns: 16
  • Voltage: 12/24V
  • Average Current: 0.3A @ 12V / 0.15A @ 24V (varies with flash patterns)
  • Average Power: 3.55 Watts (varies with flash pattern)
  • Max Current: 0.59A @ 12V / 0.3A @ 24V
  • Max Power: 7.1 Watts
  • Wires: Red-Vcc: 26.5cm (20AWG) / Black-GND: 26.5cm (20AWG) / Yellow-Flash Pattern: 26.5cm (20AWG)
  • Recommended Fuse: 1A
  • Max to Sync Together: Up to 15 lamps
  • Colours Available: amber, blue, clear or red
