Description

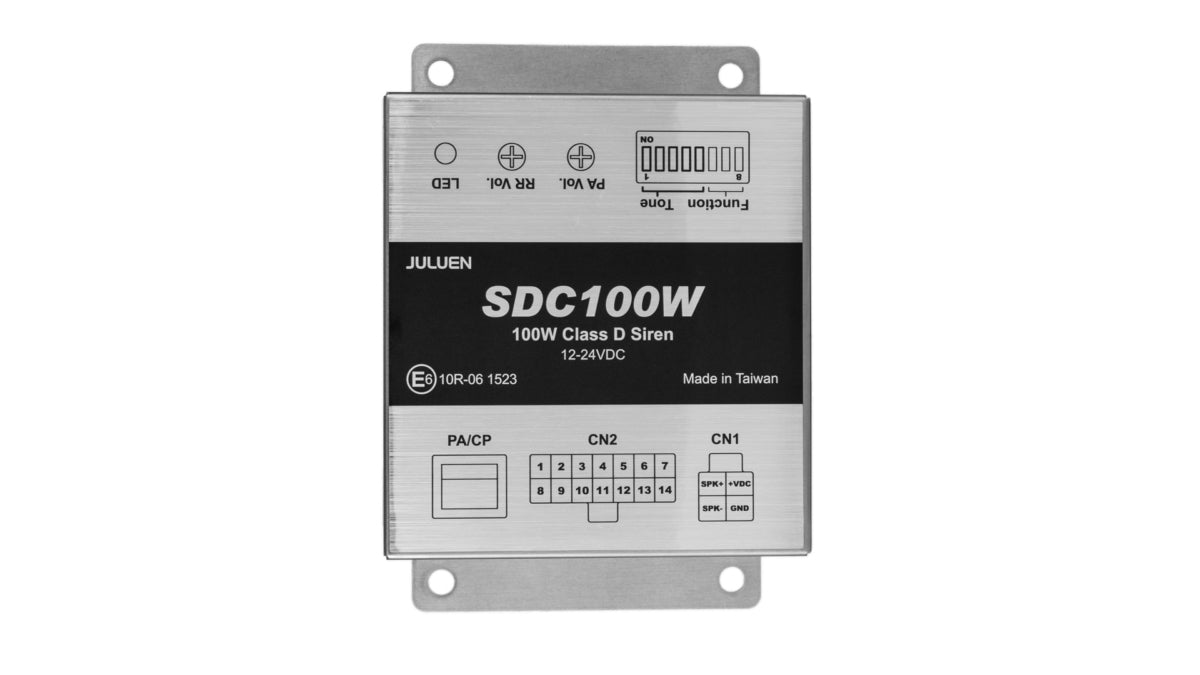

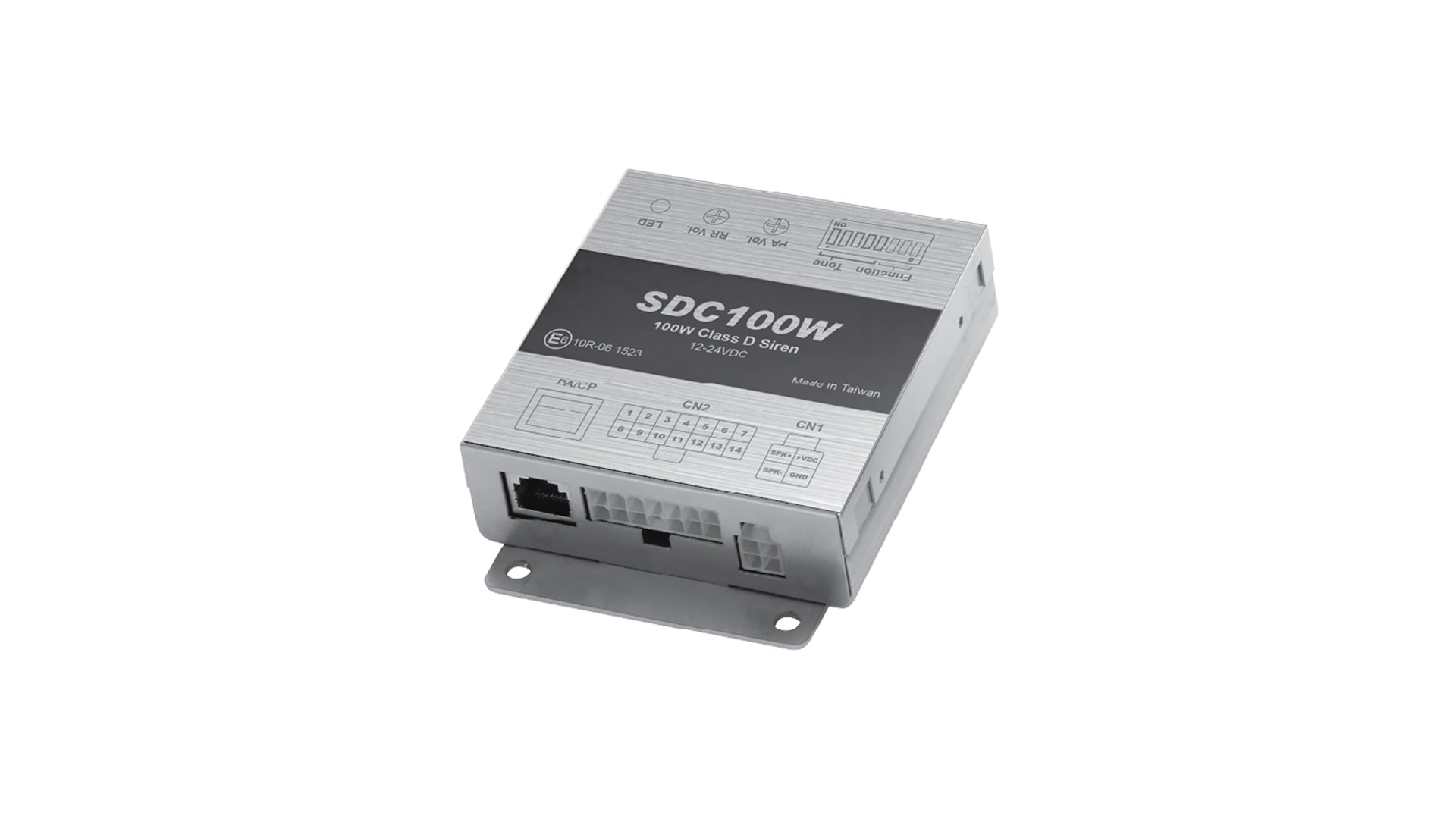

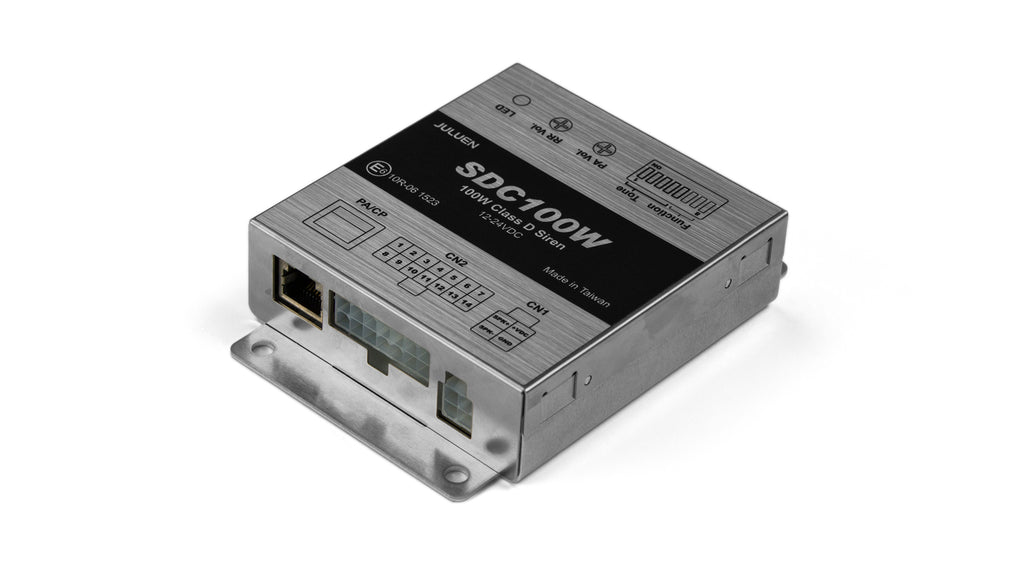

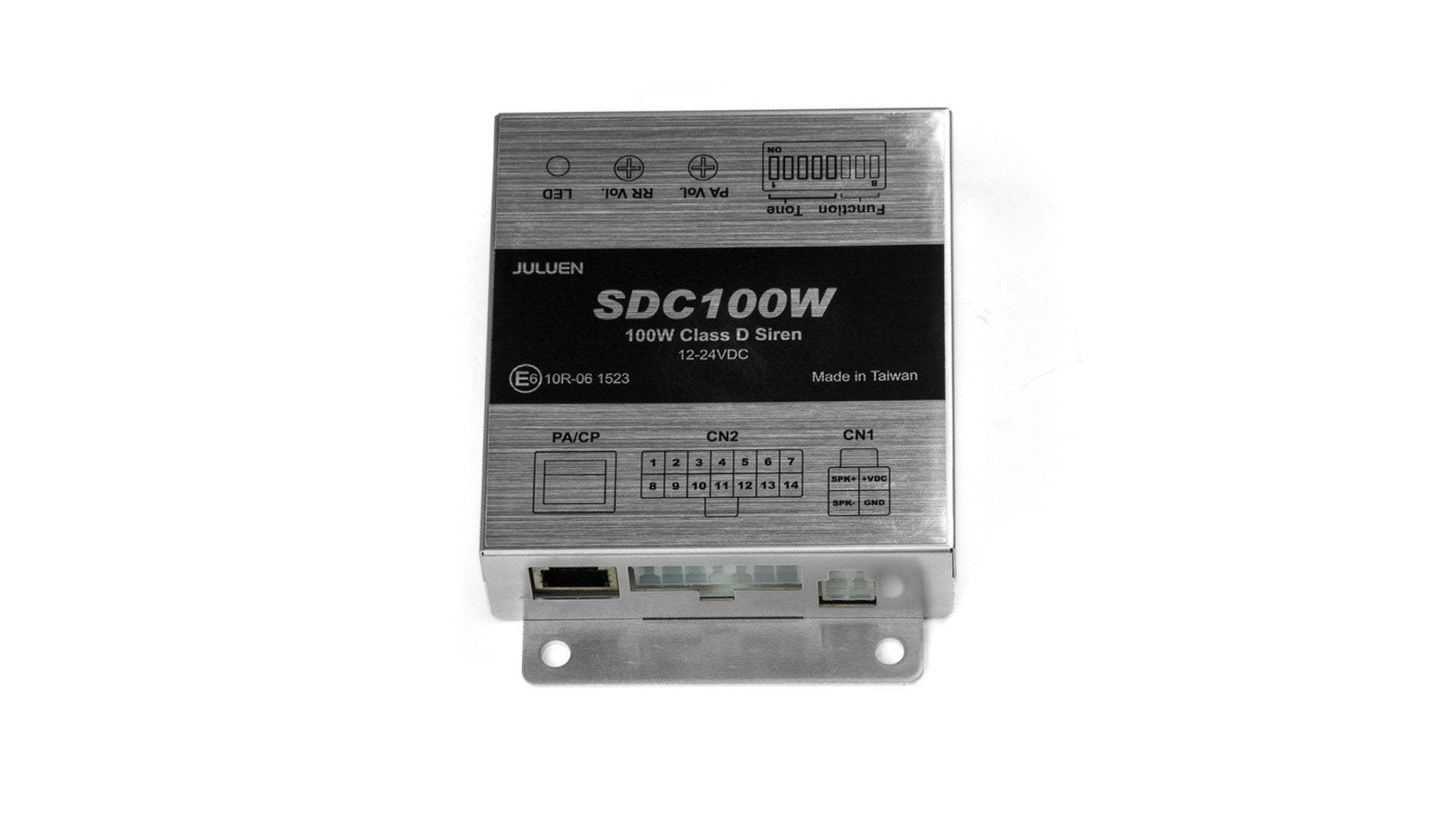

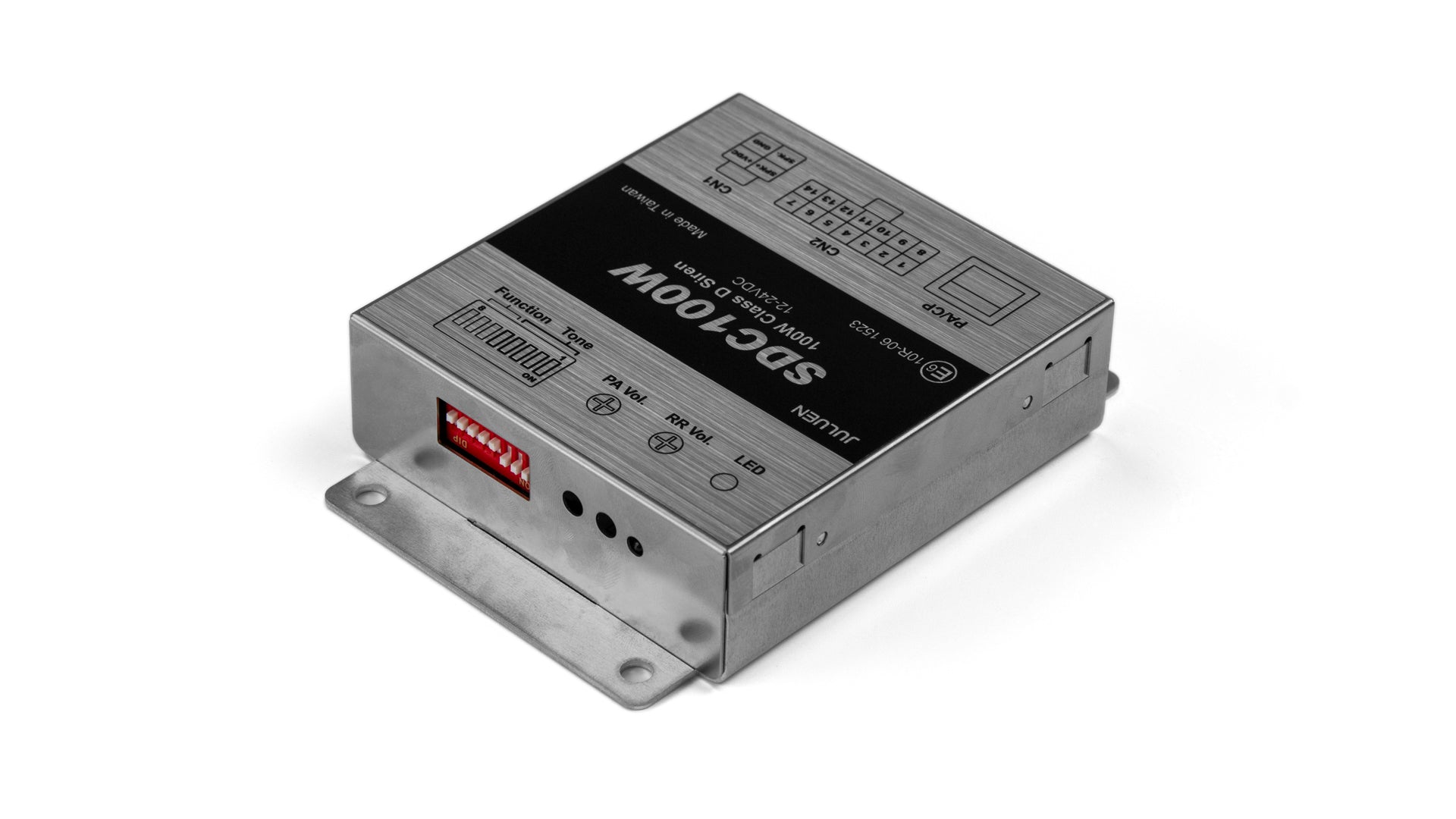

SDC100W Siren Amplifier
A compact, high-efficiency Class D amplifier delivering 100 W of crystal-clear warning sound in demanding environments.
-
Wide input range: 12–24 V DC for versatility across vehicle types
-
Flexible speaker load:
-
Single 100 W speaker (11 Ω)
-
Two 50 W speakers in series (4 Ω)
-
-
18 programmable tones: Conforms to ECE R10/CISPR 25 with presets for FR, DE, AT, IT, NL and UK standards
-
Record-n-Play™ voice messages: Built-in recorder for instant PA announcements—no external memory required
-
Siren Interlock: Prevents siren activation unless primary warning is engaged
-
Robust protection: Short-circuit, over/under-voltage and over-current safeguards for reliable operation
-
Rugged design:
-
Operating temperature: –40 °C to +65 °C
-
Dimensions: 120 × 87 × 29 mm
-
Max current draw: 9.5 A @ 12 V DC / 4.5 A @ 24 V DC
-
