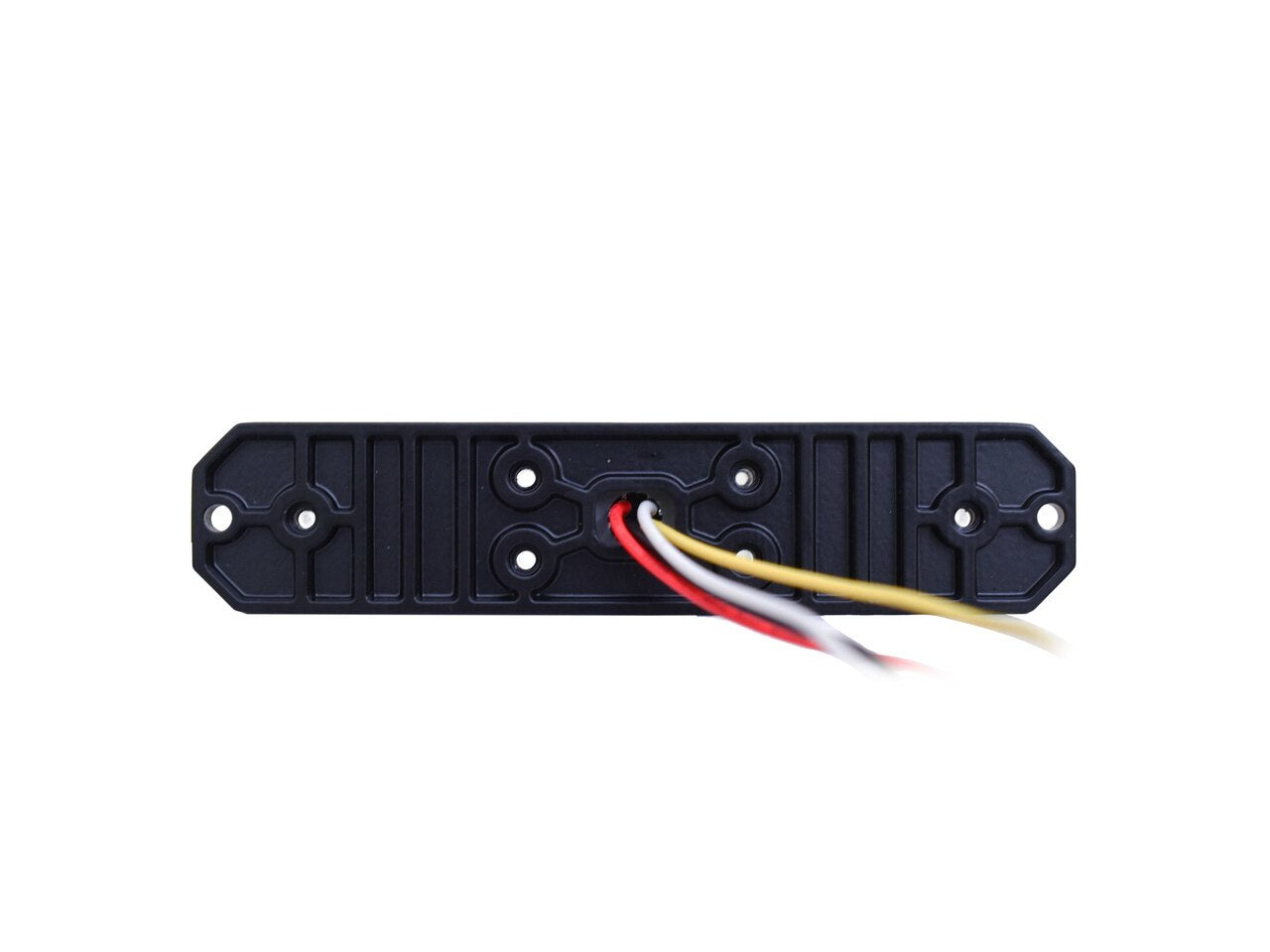

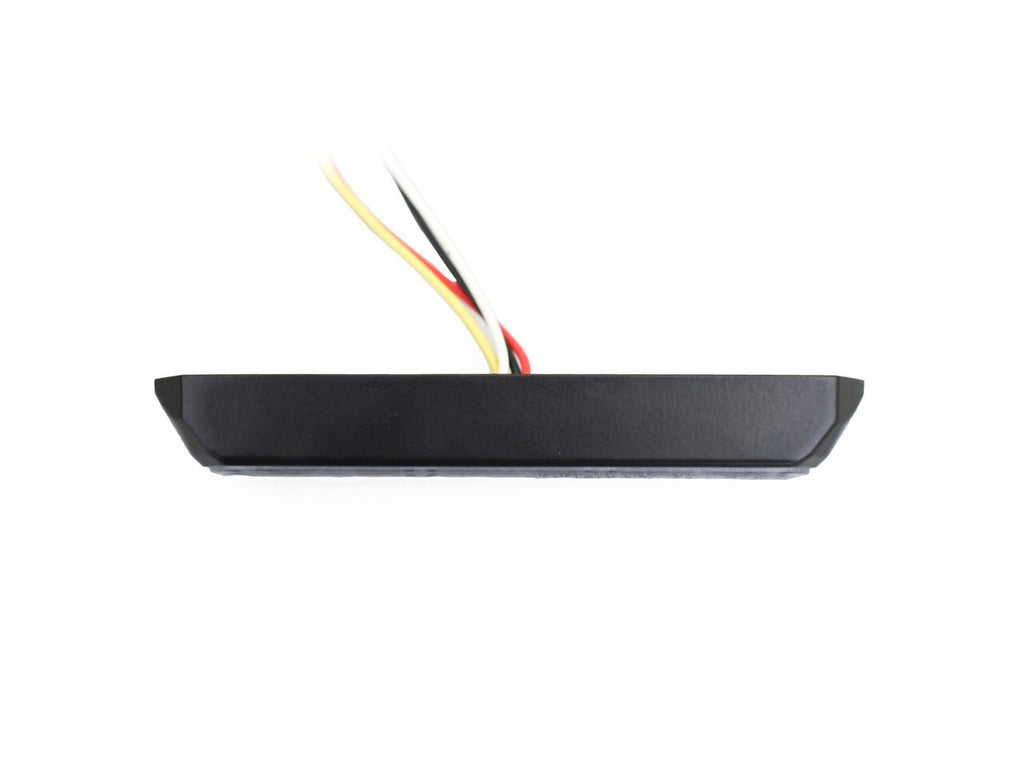

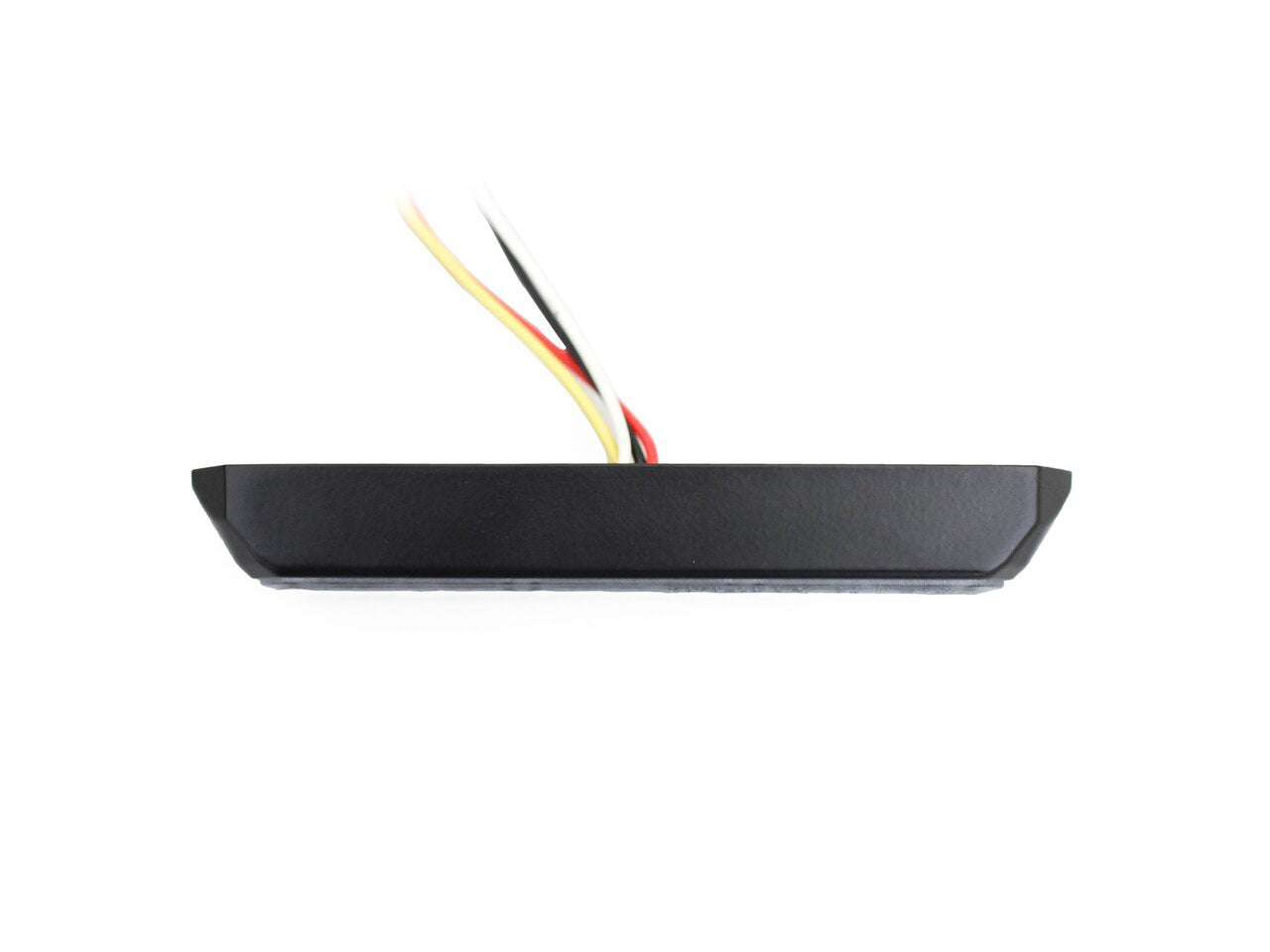

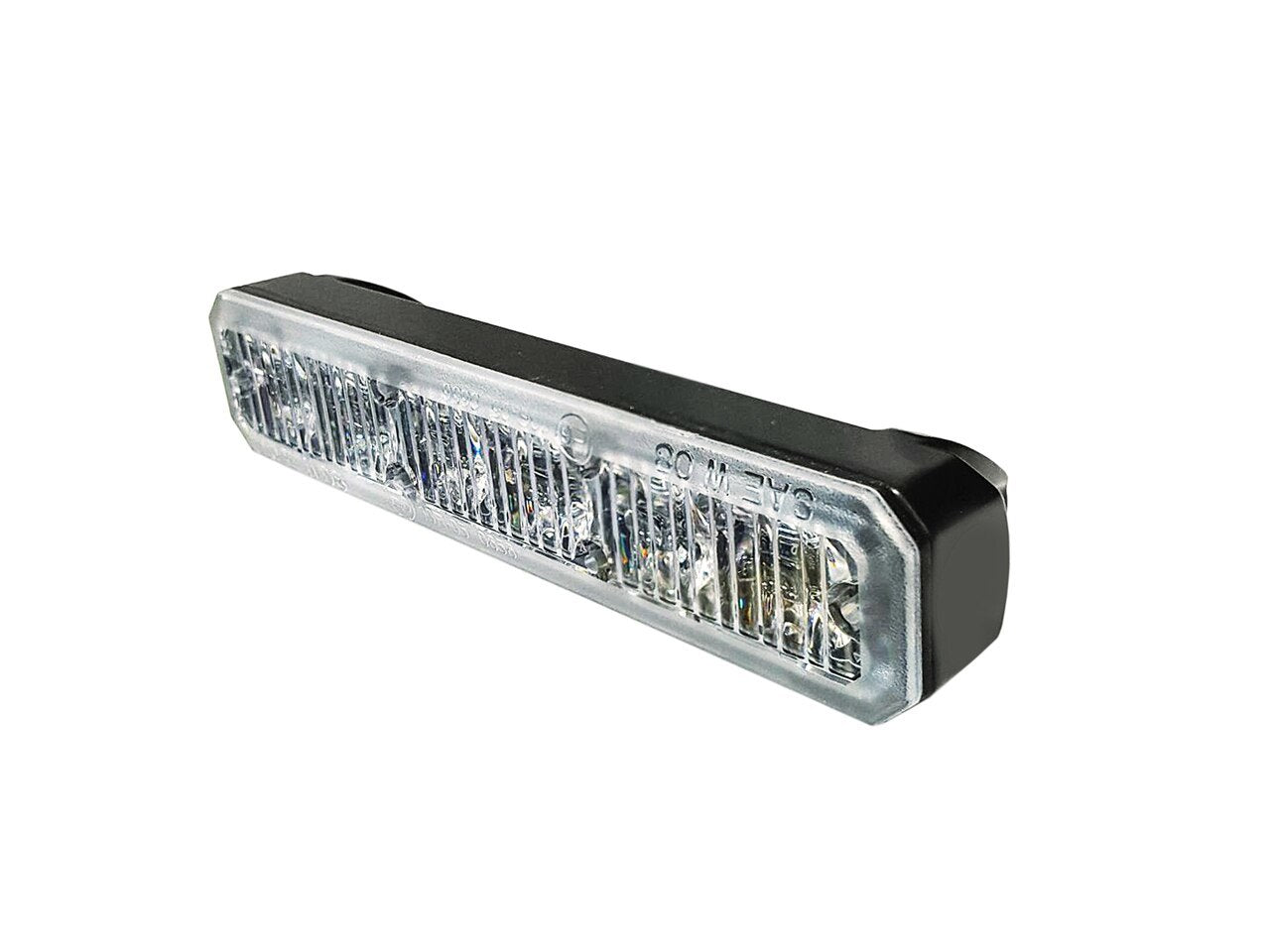

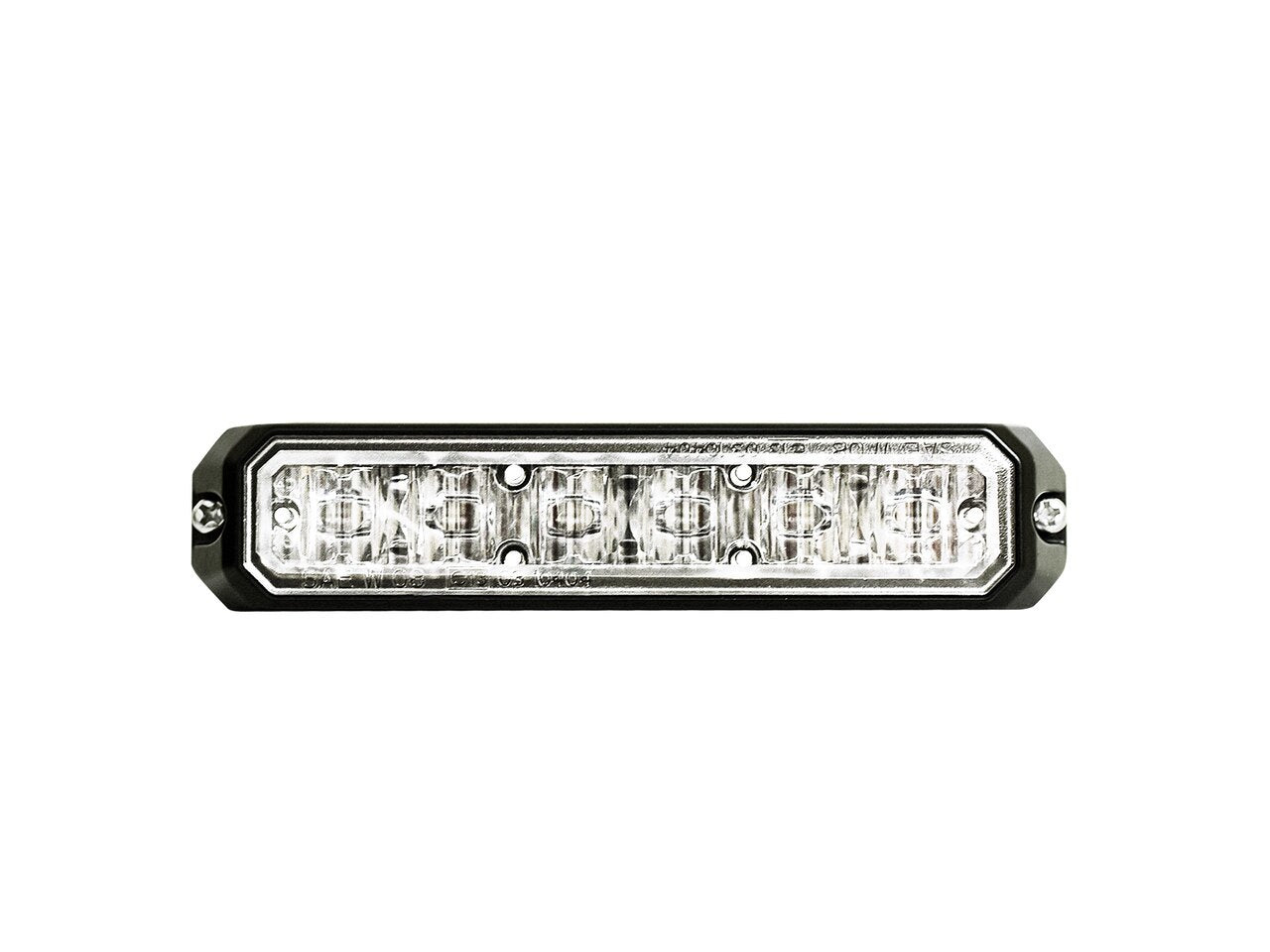

LEDDMS6 6 LED Directional Dual Colour

PRODUCT DESCRIPTION

Dimensions: 98.54mm (L) x 35.07mm (H) x 10mm (D)

Features:

  • 6LED+6LED Dual colour.
  • SAE Class 1 high power output.
  • ECE R10 EMC Compliance.
  • 0.68” (17.2mm) low-profile thickness.
  • Long life LEDs rated to 100,000 hours of operation.
  • Non-volatile memory recalls last flash pattern used at power up.
  • Multi-units synchronization in simultaneous or alternating flash.
  • Reverse polarity protection.
  • Weatherproof and vibration resistant design for internal or external use.
  • Aluminum base for efficient heat dissipation.

Specifications:

  • Meets: SAE J595, CA13 (R/B/Y), ECE R10-04
  • Bulb: High-power LED x 12pcs
  • Warning Patterns: 12 Flash Patterns
  • Operating Voltage: 12~24VDC
  • Avg. Current: 0.6A@12VDC / 0.3A@24VDC
  • Avg. Power: 7.2W
  • Max. Current: 1.2A@12VDC / 0.6A@24VDC
  • Max. Power: 14.4W
  • Wires: Red-Vcc : 20cm (20AWG) / White-Vcc : 20cm (20AWG) / Black-GND : 20cm (20AWG) / Yellow-Flash Patterns & Sync : 20cm (20AWG)
  • Fuse Recommended: 2A
  • Multi-Unit Synchronization: Over 15 units
  • Available in: BLUE, AMBER, RED, WHITE
