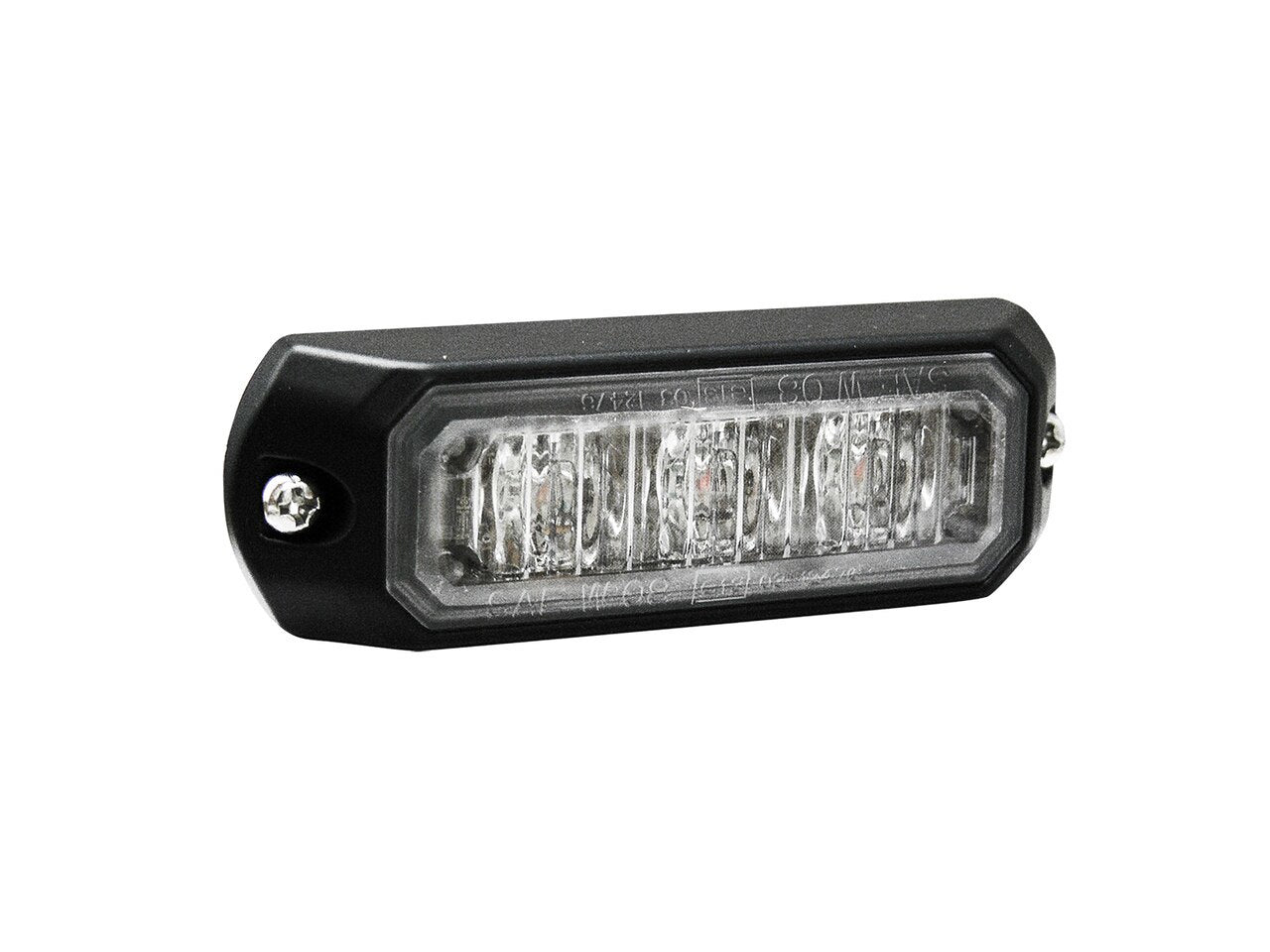

LEDDMS3 3 LED Directional

ELSSKU: LEDDMS3

Price:
Sale price

Description

PRODUCT DESCRIPTION

Dimensions: 85.6mm (L) x 27.7mm (H)  x 15.7mm (D)

Features:

  • Super low profile for discreet mounting.
  • Multi-Voltage Input 12~24VDC.
  • Built-in 12 Selectable Flash Patterns.
  • LEDs rated to 100,000 hours of operation.
  • Non-volatile memory recalls last flash pattern used at power up.
  • Multi-units synchronization.
  • Reverse polarity protection.
  • Weatherproof and vibration resistant design for versatile application.
  • Aluminum base for efficient heat dissipation.

Specifications:

  • Meets: SAE, CA13, e13
  • Bulb: 1W LED x 3pcs
  • Warning Patterns: 12 Flash Patterns
  • Operating Voltage: 12~24VDC
  • Avg. Current: 0.2A @12.8VDC / 0.11A @24VDC
  • Avg. Power: 2.7 Watts
  • Max. Current: 0.4A @12.8VDC / 0.22A @24VDC
  • Max. Power: 5.5 Watts
  • Wires: Red-Vcc: 97cm (20AWG) / Black-GND: 97cm (20AWG) / Yellow-Flash Patterns & Sync: 97cm (20AWG)
  • Fuse Recommended: 3A
  • Multi-Unit Synchronization: Over 15 units
  • Available in: RED, BLUE, AMBER, WHITE
