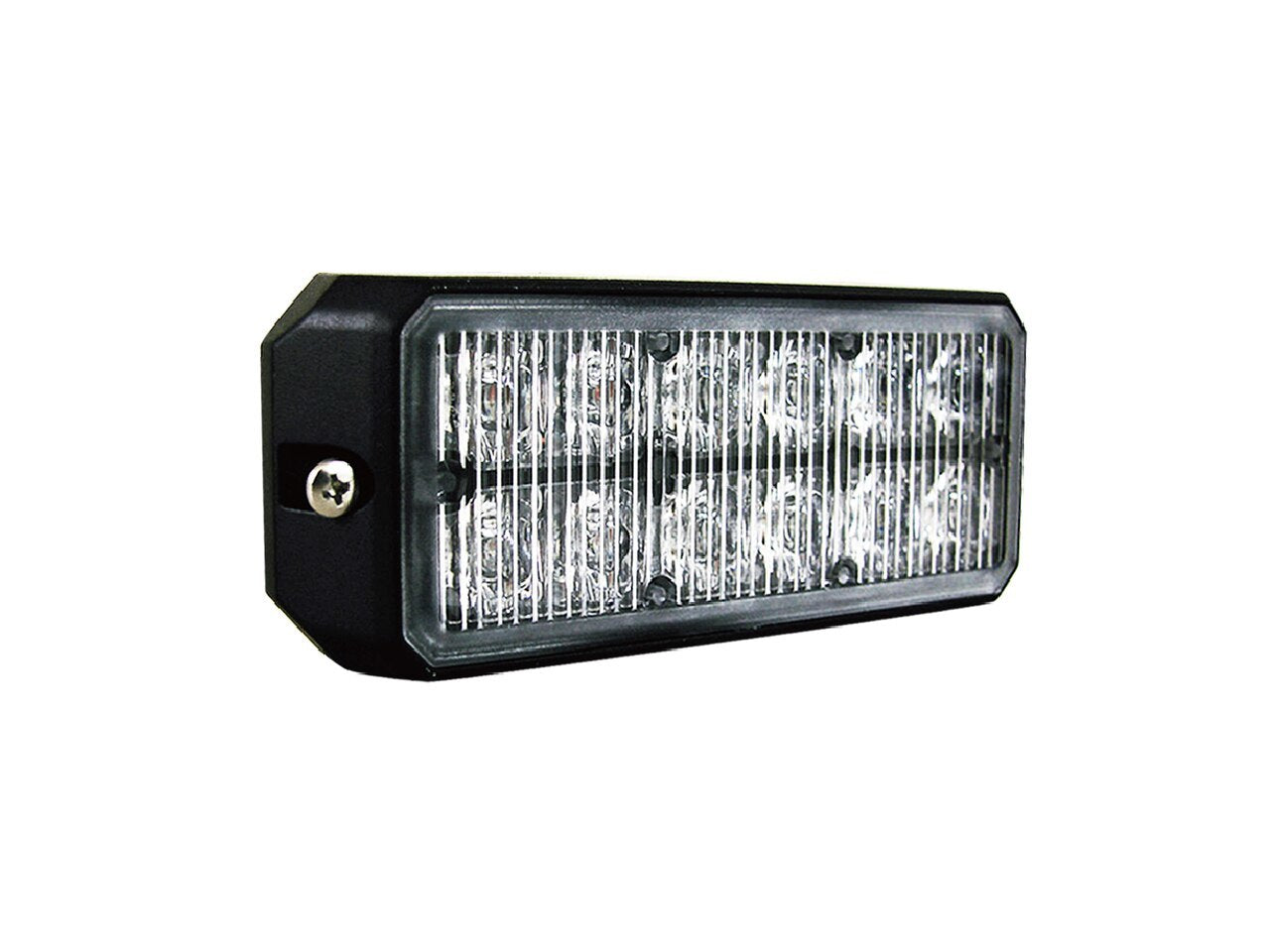

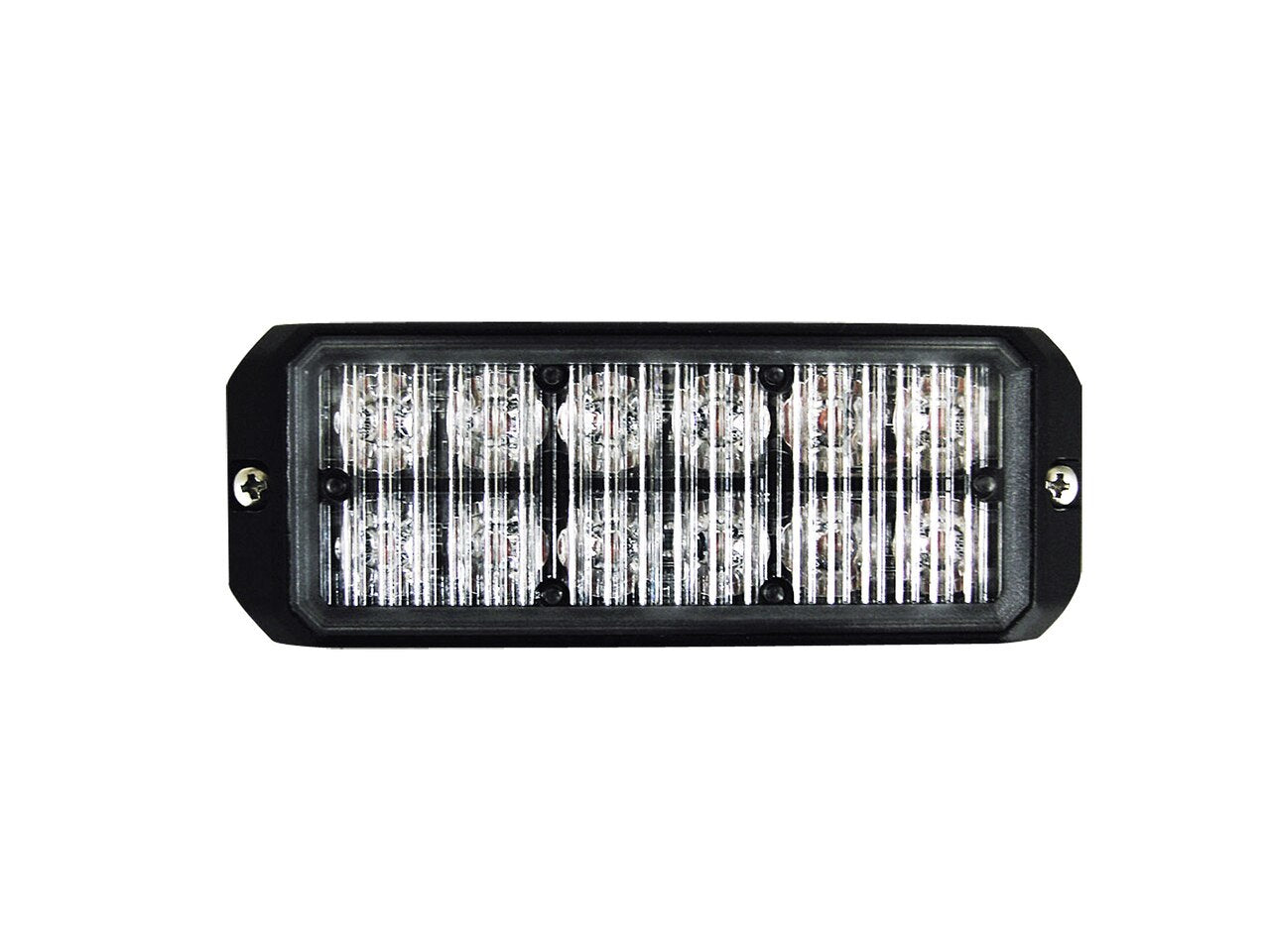

LEDDMS26 12 LED Directional

PRODUCT DESCRIPTION

Dimensions: 85.6mm (L) x 27.7mm (H)  x 15.7mm (D)

Features:

  • Super low profile for discreet mounting.
  • Multi-Voltage Input 12~24VDC.
  • Built-in 15 Selectable Flash Patterns and 3 modes (Top-Down, Left-Right, Criss-Cross).
  • Built-in Low Power function
  • LEDs rated to 100,000 hours of operation.
  • Non-volatile memory recalls last flash pattern used at power up.
  • Multi-units synchronization.
  • Reverse polarity protection.
  • Weatherproof and vibration resistant design for versatile application.
  • Aluminum base for efficient heat dissipation.

Specifications:

  • Meets: SAE, Title XIII, e13, ECE R65 (XA2, XB2)
  • Bulb: High-power LED x 12 pcs
  • Warning Patterns: 25 Flash Patterns
  • Operating Voltage: 11~30VDC
  • Avg. Current: 0.75A@12VDC / 0.38A @24VDC (Amber / Red), 1.25A@12VDC / 0.63A @24VDC (Blue / White)
  • Avg. Power: 9 Watts (Amber / Red), 15 Watts (Blue / White)
  • Max. Current: 1.5A@12VDC / 0.75A @24VDC (Amber / Red), 2.5A@12VDC / 1.25A @24VDC (Blue / White)
  • Max. Power: 18 Watts (Amber / Red), 30 Watts (Blue / White)
  • Wires: Red-Vcc : 20cm (20AWG) Black-GND : 20cm (20AWG) White-Low Power : 20cm (20AWG) Yellow-Flash Patterns & Sync : 20cm (20AWG)
  • Fuse Recommended: 5A
  • Multi-Unit Synchronization: Over 15 units
  • Available in: RED, BLUE, AMBER, WHITE
