Description

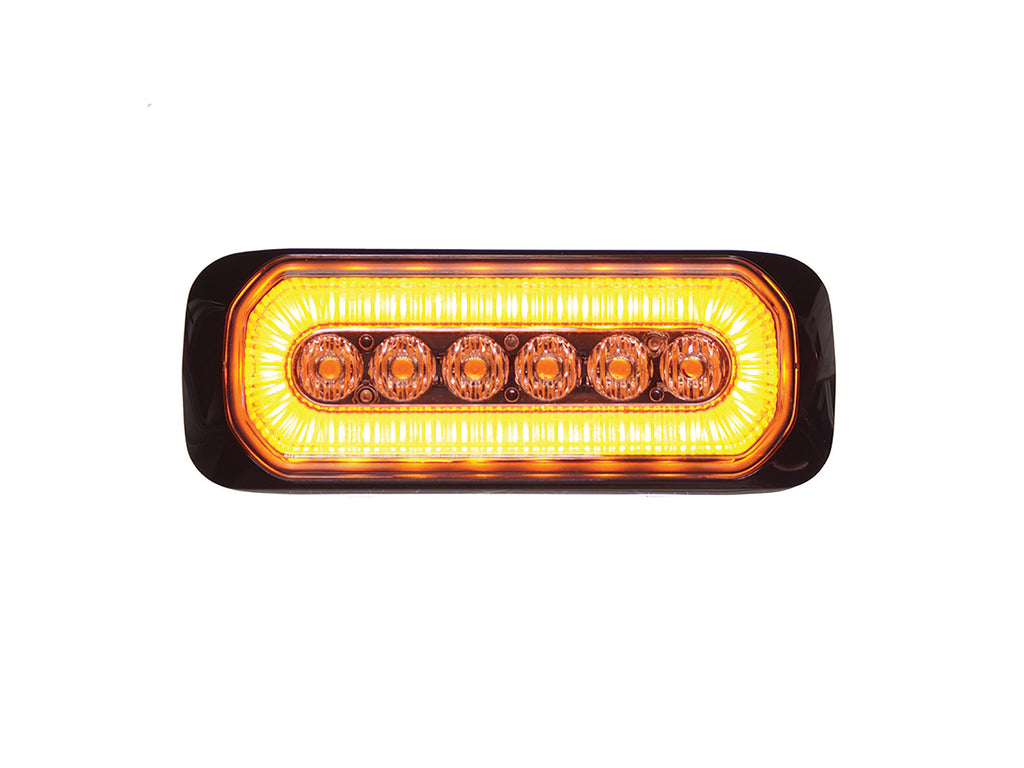

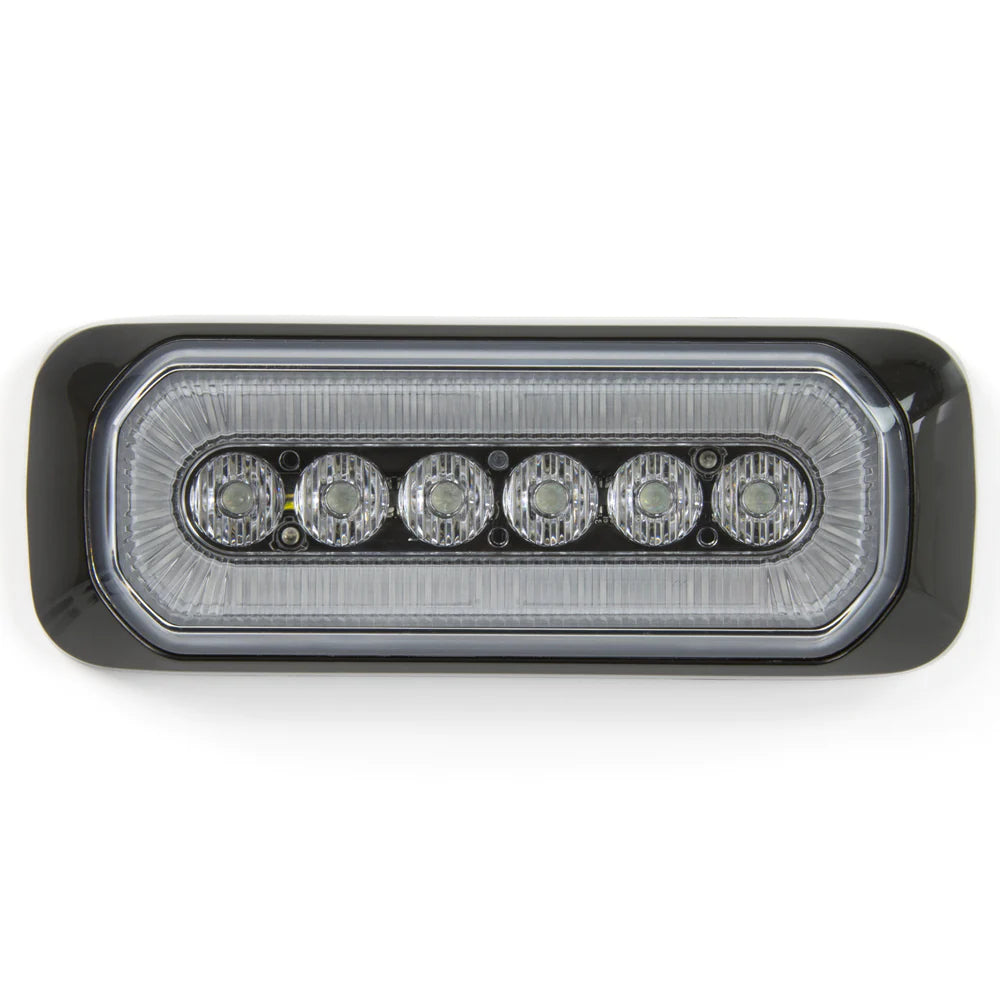

The HB6 is the latest technology from Juluen in road visibility featuring 6 high-powered LEDs surrounded by an independent outer halo-ring. The inner 6 LEDs provide the warning function, while the halo-ring can be used as a side marker or many other applications.
Dimensions: 132mm (L) x 18.8mm (H) x 50mm (D)
Features:
- 6LED high-performance warning lamp with special outer Halo-Ring.
- Independent controlled, multi-purposed outer Halo- Ring as a Clearance Lamp, an Identification Lamp, a Position Lamp, or a Side Marker Lamp.
- SAE and ECE R65 certified high power warning output.
- ECE R10 EMC Compliance.
- Long life LEDs rated to 100,000 hours of operation.
- Multi-units synchronization in simultaneous or alter- nating flash.
- Reverse polarity protection.
- Fully Weatherproof and vibration resistant design for external and internal use.
- Aluminum base for efficient heat dissipation and maximum durability.
Specifications:
- Meets: SAE J595 Class1 (A/B/R/W); SAE J592 (A/R); SAE J2042 (A/R); CA Title13 (A/B/R); ECE R7 (R/W); ECE R10; ECE R65 (XA1, XB1); ECE R91 (A); IPx8
- Warning LED: High-power LED x 6 pcs
- Halo-Ring LED: Long-life LED x 18 pcs
- Warning Patterns: 14 Flash Patterns
- Operating Voltage: 12~24VDC
- Avg. Current: 0.675A @12VDC / 0.375A @24VDC (varies by flash pattern)
- Avg. Power: 9 Watts (varies by flash pattern)
- Max. Current: 1.35A @12VDC / 0.75A @24VDC
- Max. Power: 18 Watts
- Wires: Red-Vcc : 25cm (20AWG) / Black-GND : 25cm (20AWG) / White-Vcc: 25cm (20AWG) / Yellow-Sync & Functions : 25cm (20AWG)
- Fuse Recommended: 2A
- Multi-Unit Synchronization: Over 15 units
- Available Warning Colour: Red, Blue, Amber, White
- Available Halo-Ring Colour: Red, Blue, Amber, White
- Part no: LEDDHB06
