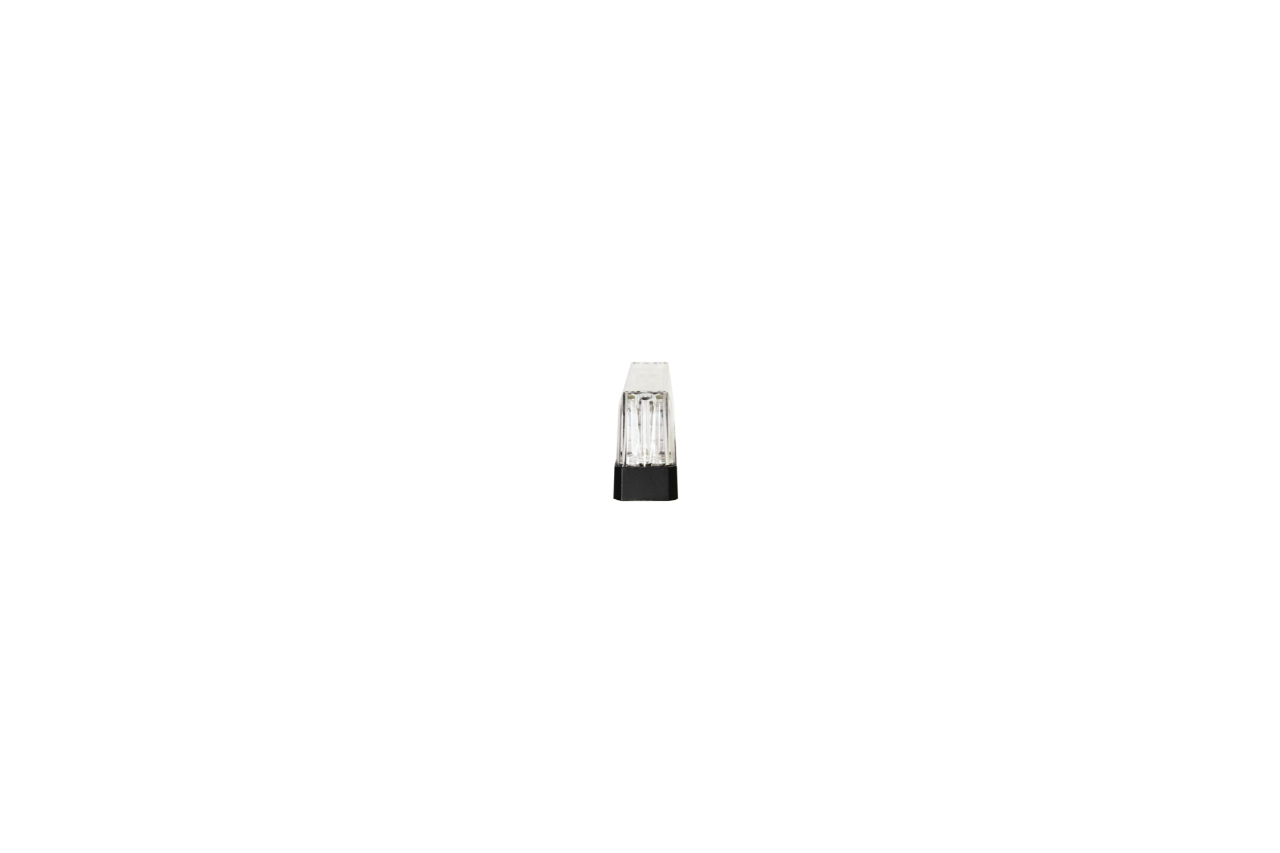

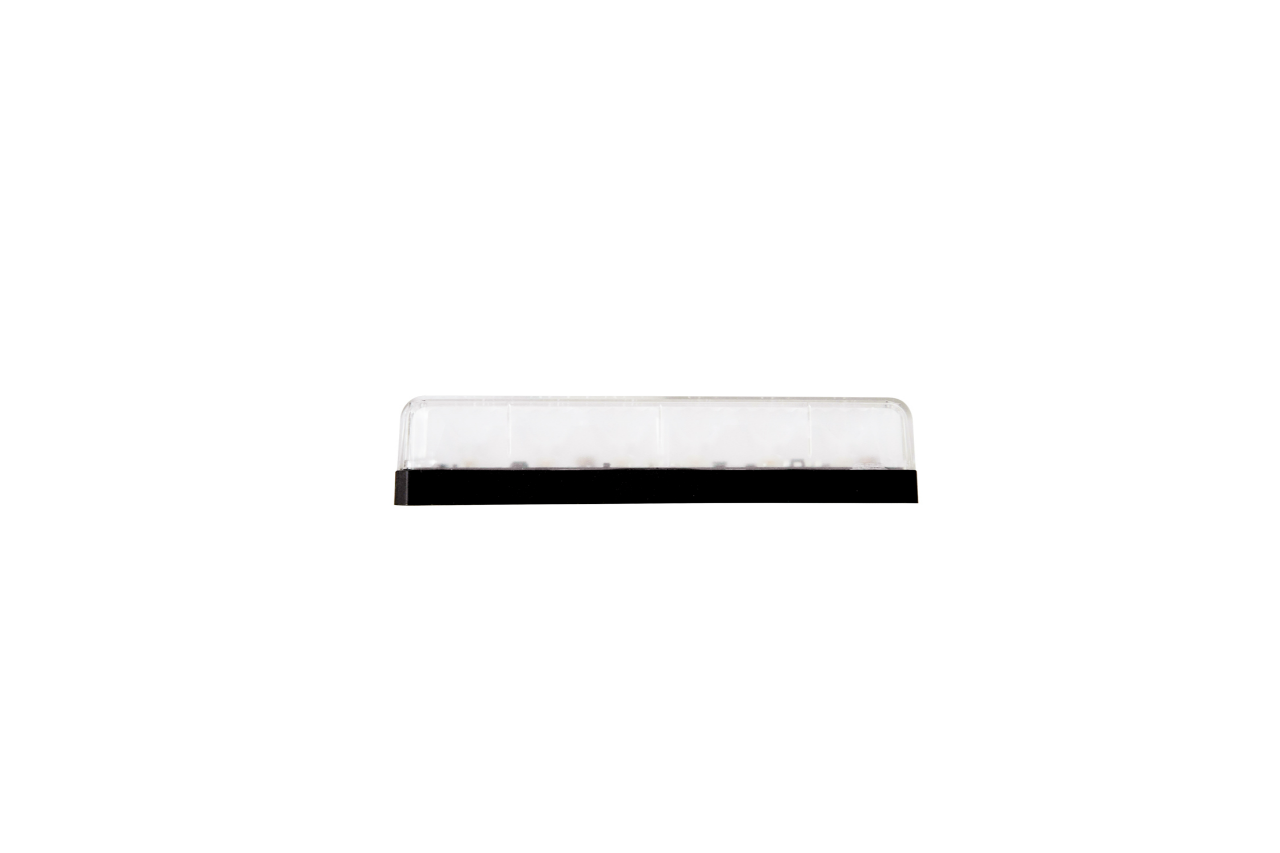

ES6 LED Directional Module - Edge Saber Series Blue

Sale price


LEDDES6 6 LED narrow profile warning lamp

Dimensions: 129.2mm (L) x 27.2mm (H) x 15.79mm (D)


  • 15.79mm narrow profile lamp

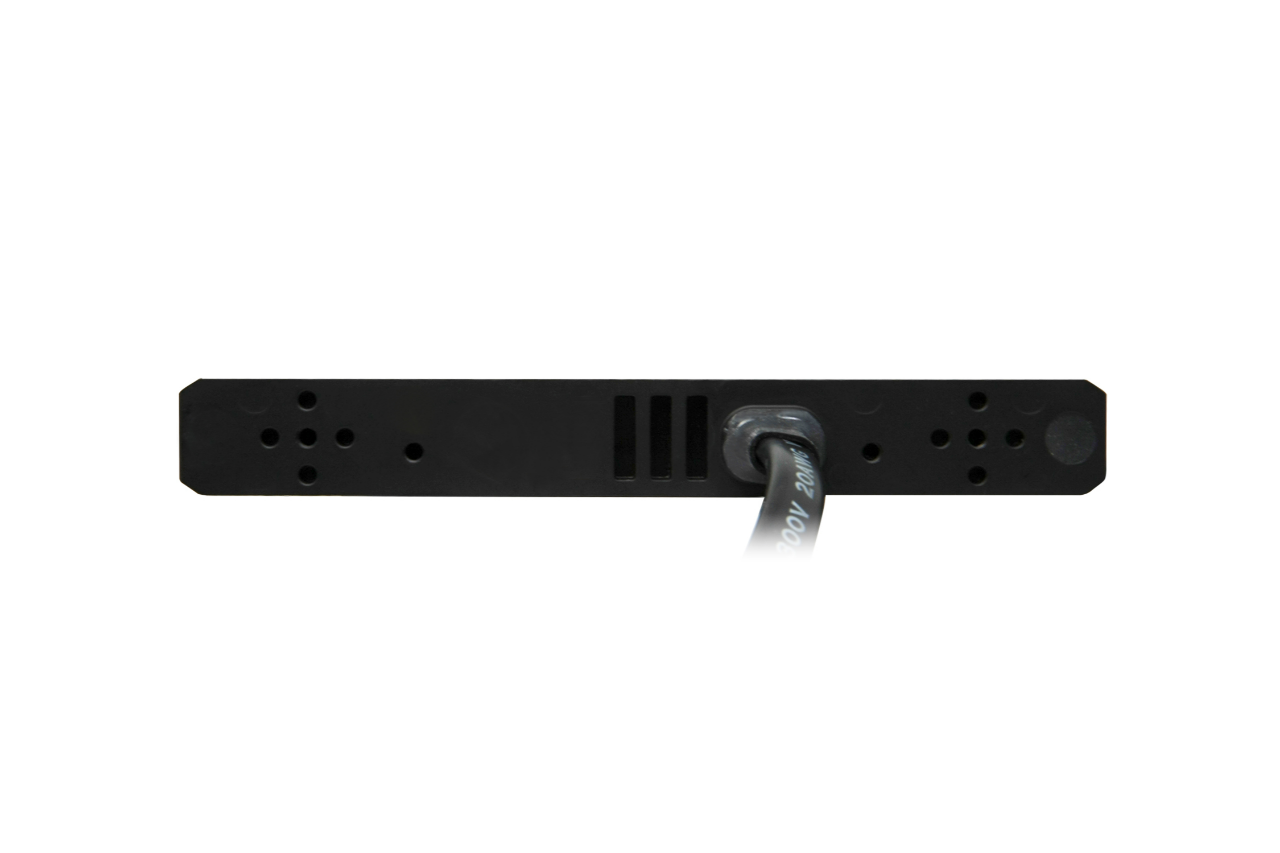

  • Universal multi-angle bracket for mounting virtually anywhere
  • New unique optical design for efficient and powerful light output
  • ECE R10 EMC compliant
  • 100,000 rated hours of long life LEDs
  • Non-volatile flash pattern memory
  • Multiple units can be synced simultaneously or flash alternatively
  • Reverse polarity protection
  • Weatherproof and vibration resistant
  • Solid aluminium housing for efficient heat dissipation and maximum durability


  • Approval: ECE R65 (XA1, XB1); ECE R10 ; SAE J595 Class 1; CA Title 13
  • IP Rating: IP68
  • LEDs: 6 x high power LEDs
  • Flash Patterns: 23
  • Voltage: 12/24V
  • Average Current: 0.57A @ 12V / 0.29A @ 24V (varies with flash patterns)
  • Average Power: 6.85 Watts (varies with flash patterns)
  • Max Current: 1.14A @ 12V / 0.57A @ 24V
  • Max Power: 13.7 Watts

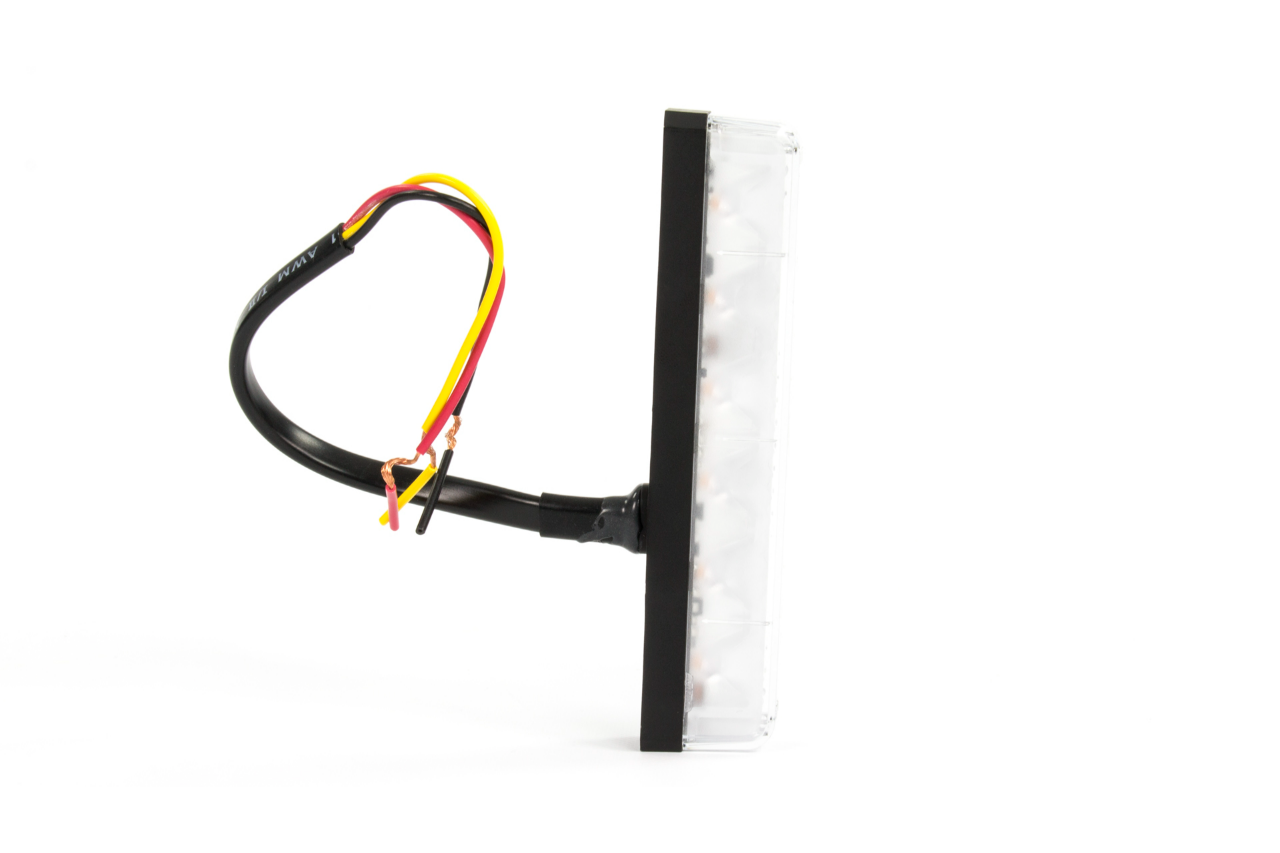

  • Wires: Red-Vcc: 25cm (20AWG) / Black-GND: 25cm (20AWG) / Yellow-Sync: 25cm (20AWG)
  • Recommended Fuse: 2A
  • Colours Available: amber, blue, clear or red
  • Part no: LEDDES6
