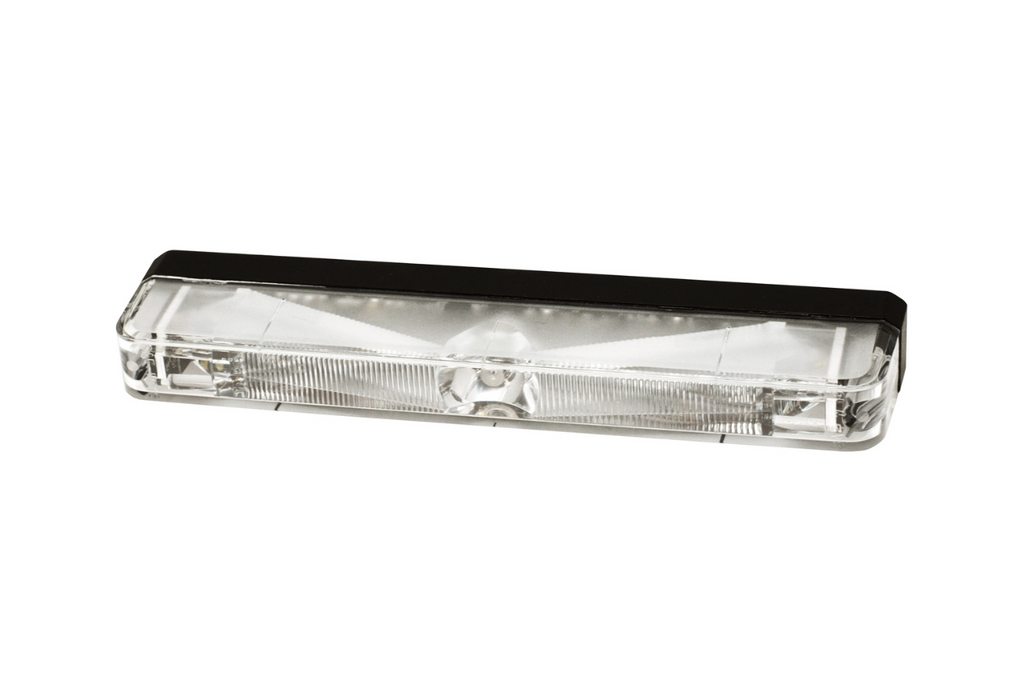

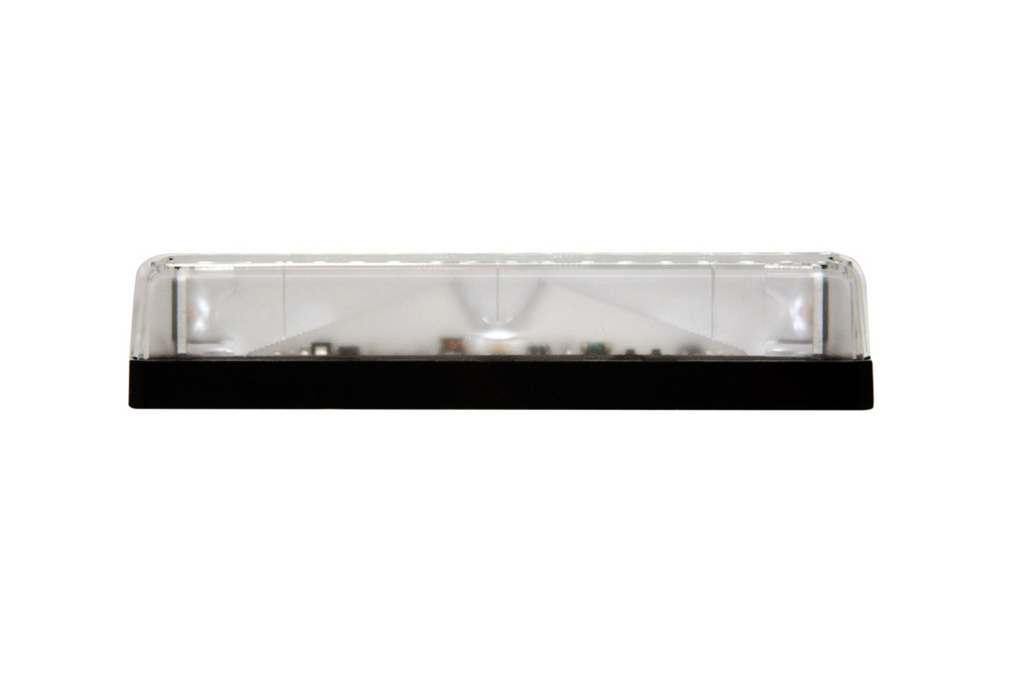

ES3 LED Directional Module - Edge Saber Series Red

Sale price


LEDDES3 3 LED narrow profile warning lamp

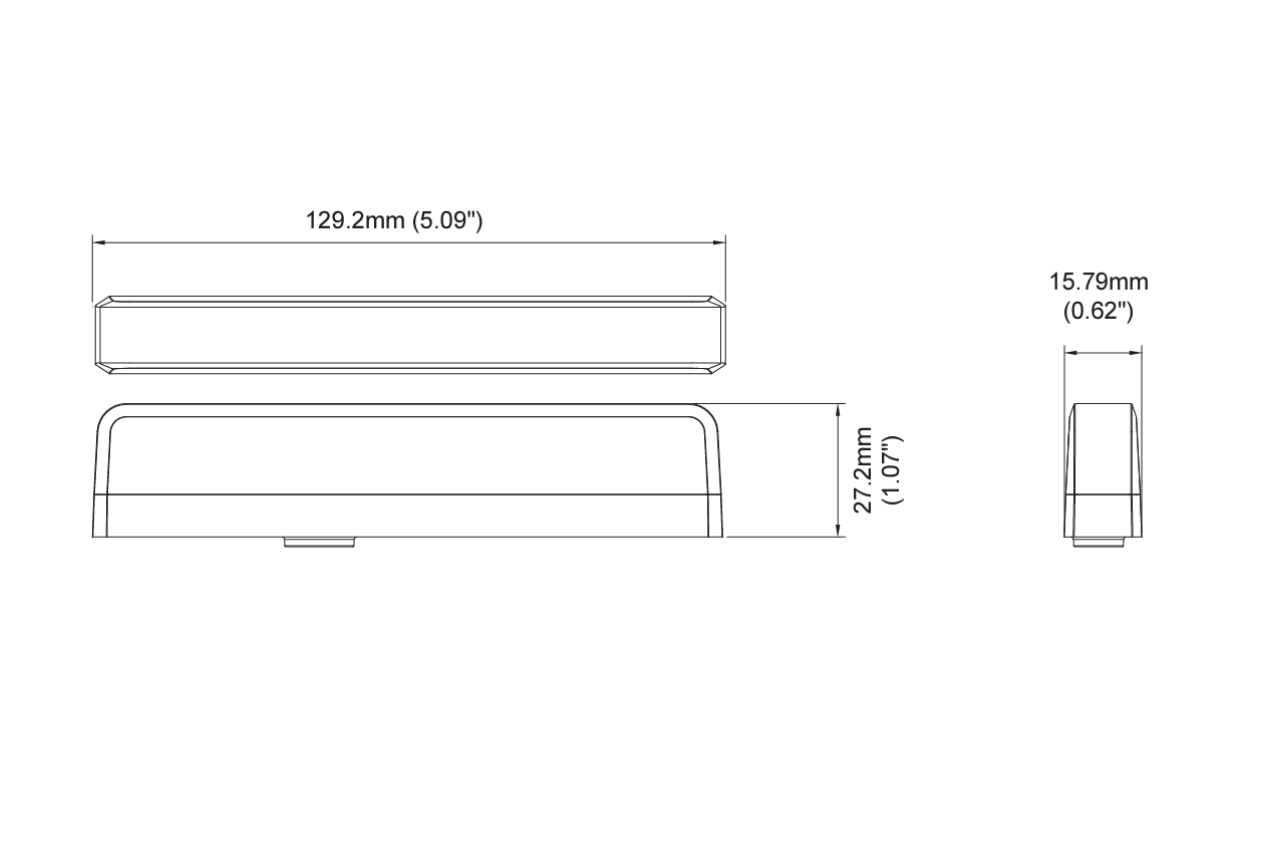

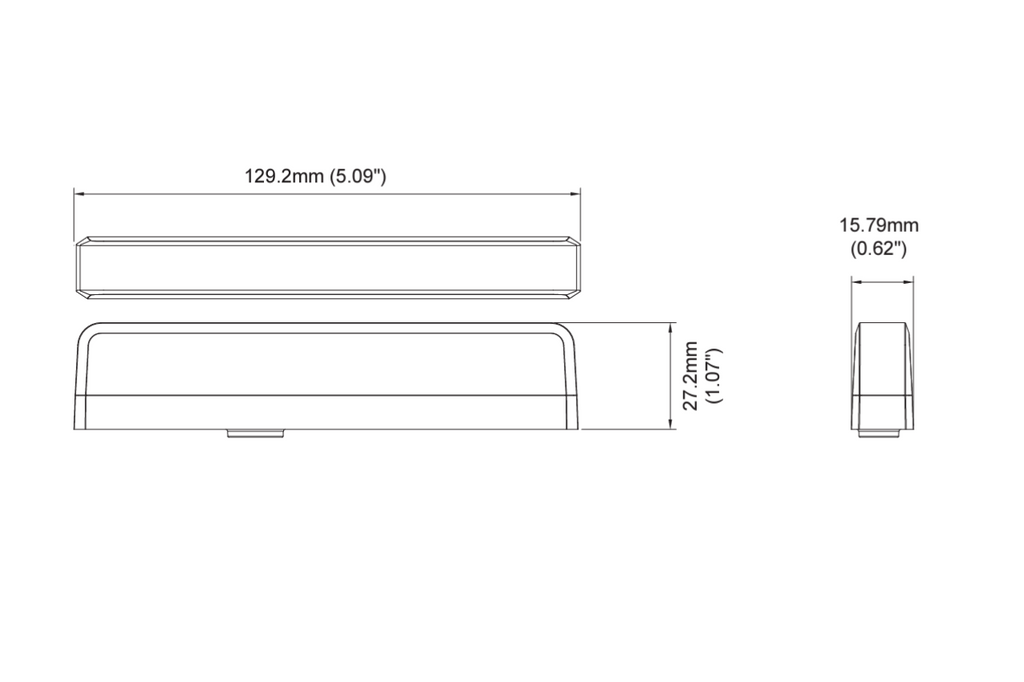

Dimensions: 129.2mm (L) x 27.2mm (H) x 15.79mm (D)

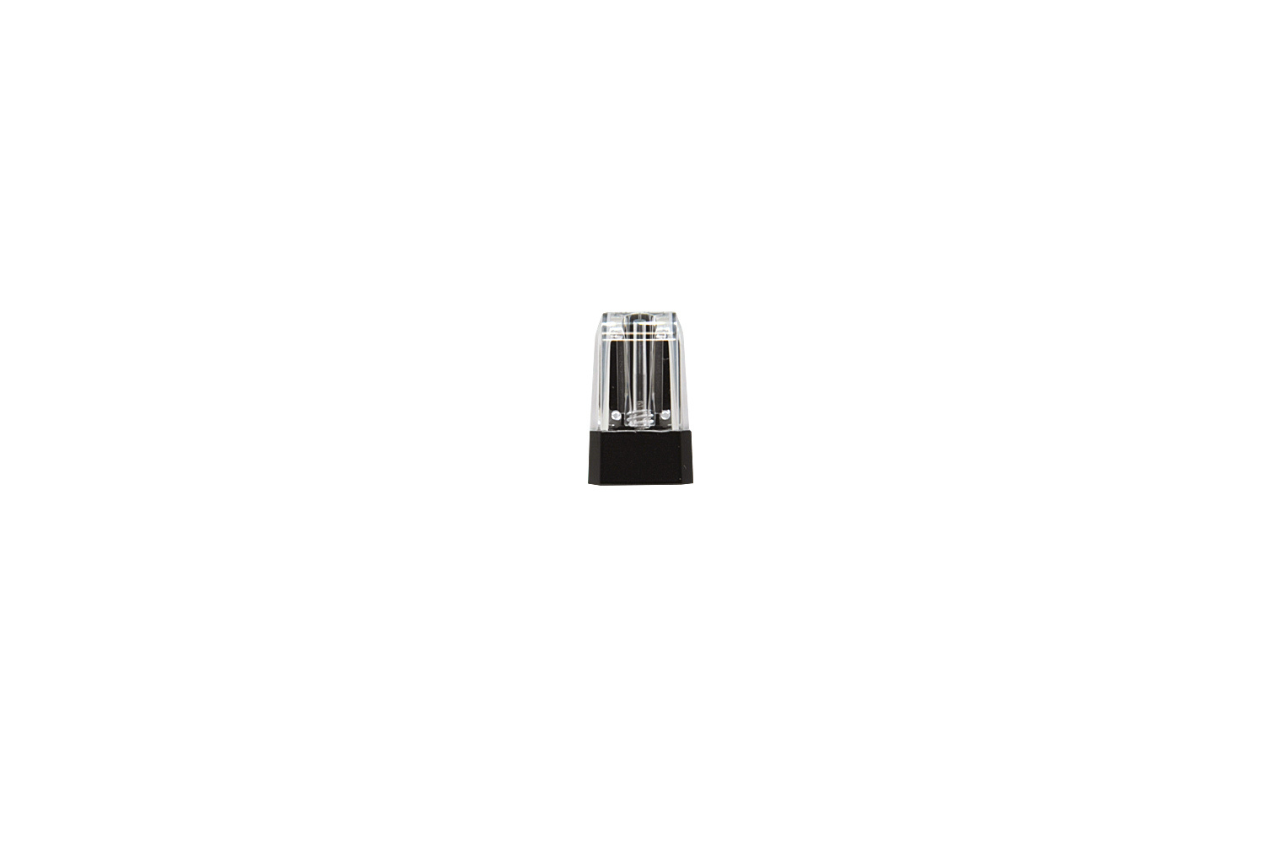

  • 15.79mm narrow profile lamp

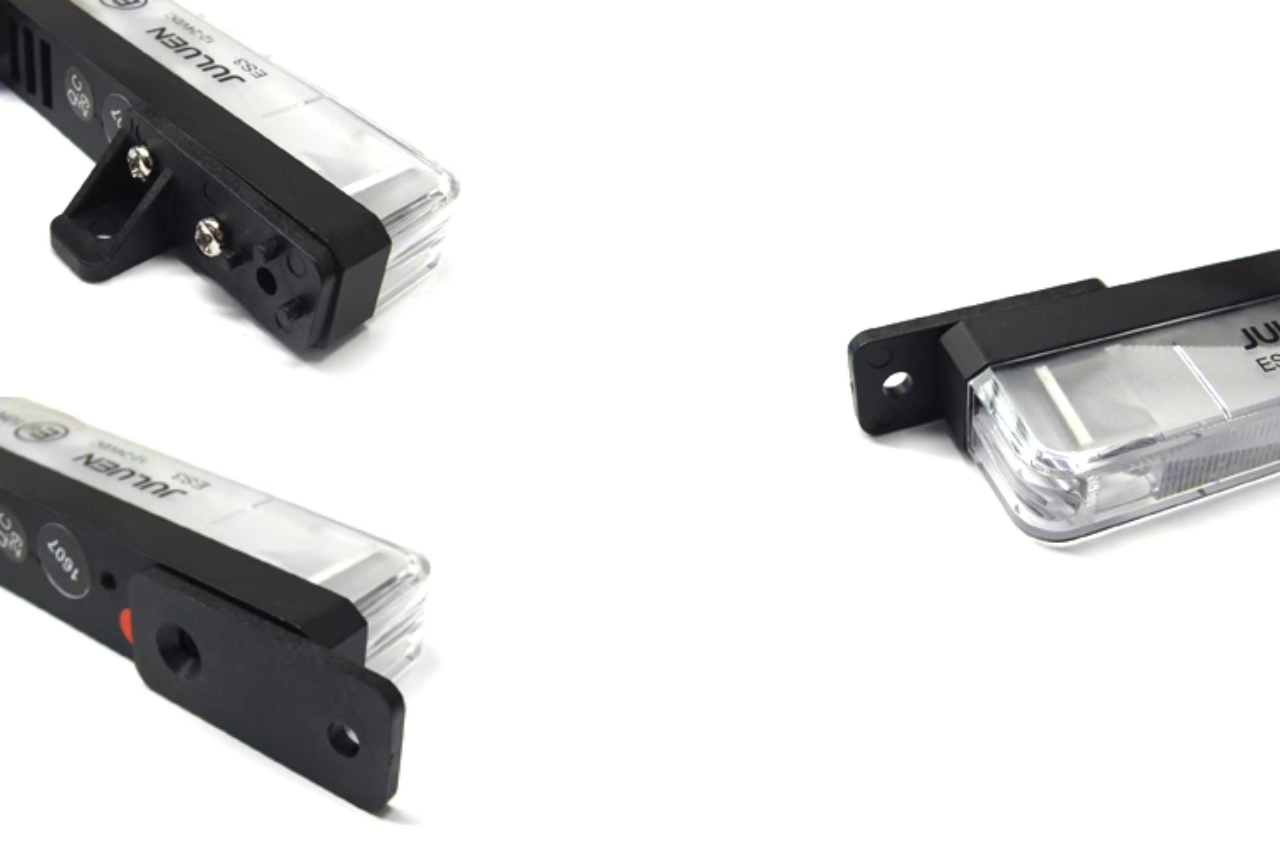

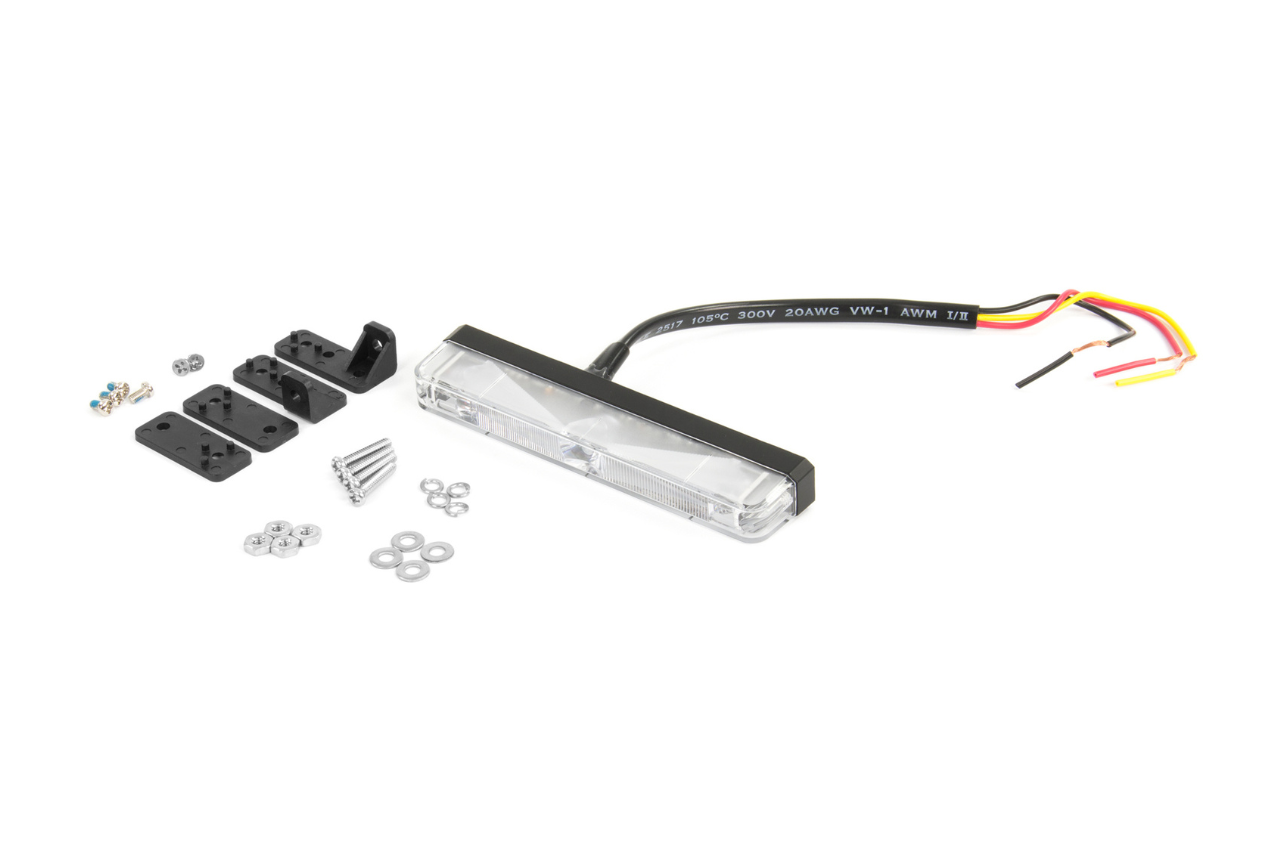

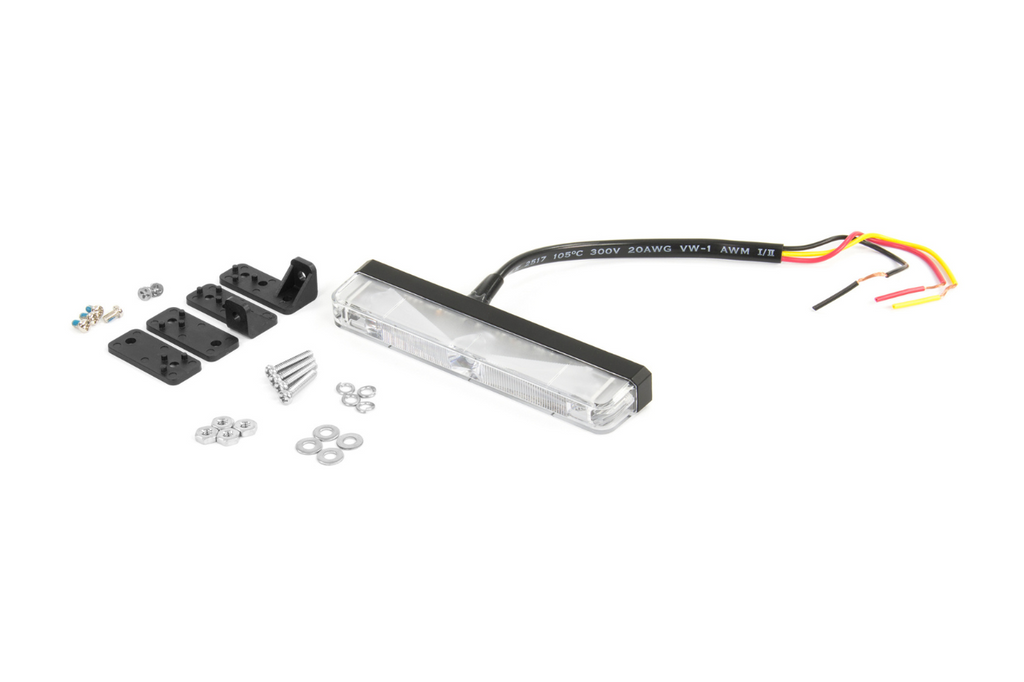

  • Universal angle adjustable bracket to mount virtually anywhere
  • New unique optical design for efficient and powerful light output
  • ECE R10 EMC compliant
  • 100,000 rated hours of long life LEDs
  • Non-volatile flash pattern memory
  • Multiple units can be synced simultaneously or with alternating flashes
  • Reverse polarity protection
  • Weatherproof and vibration resistant

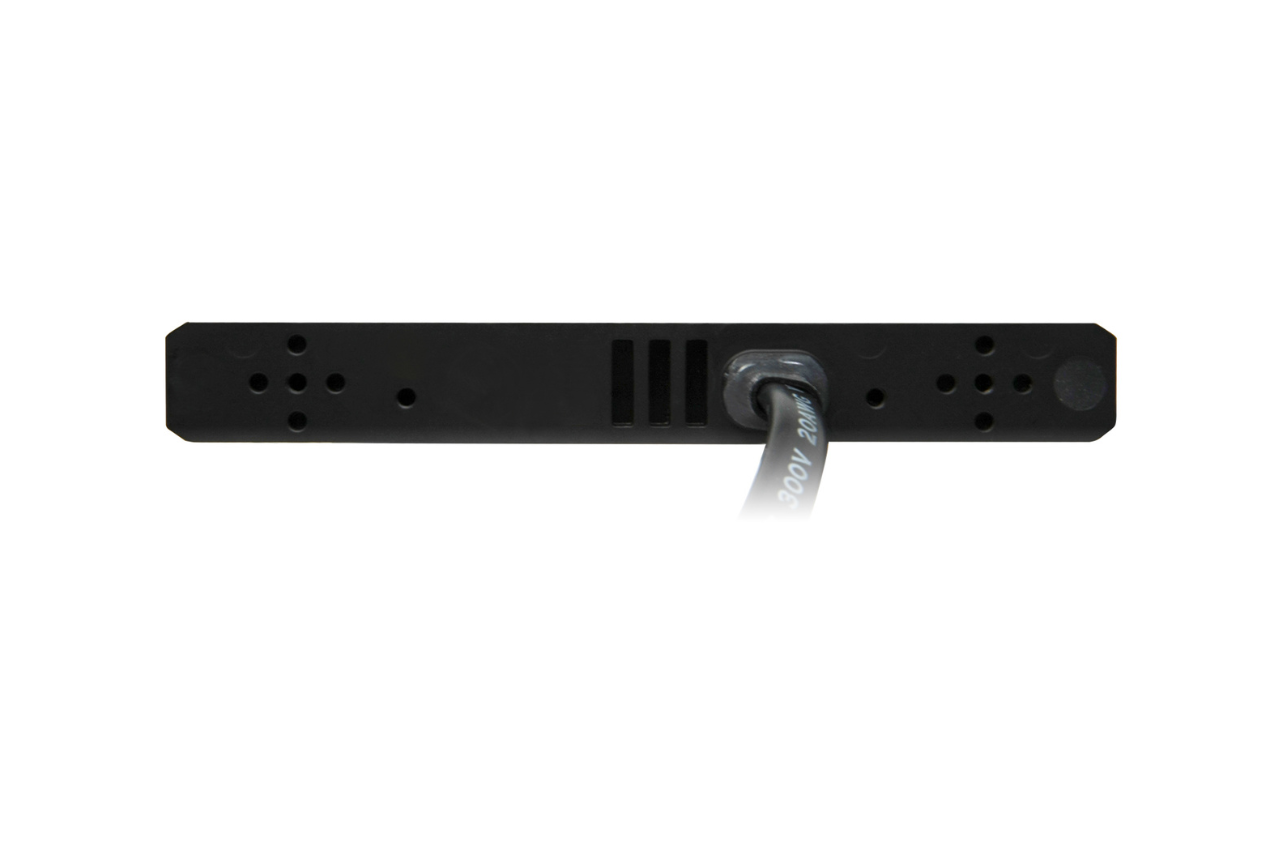

  • Aluminium base for heat dissipation


  • Approval: SAE J595 Class 1, CA13, ECE R10,
  • IP Rating: IP67

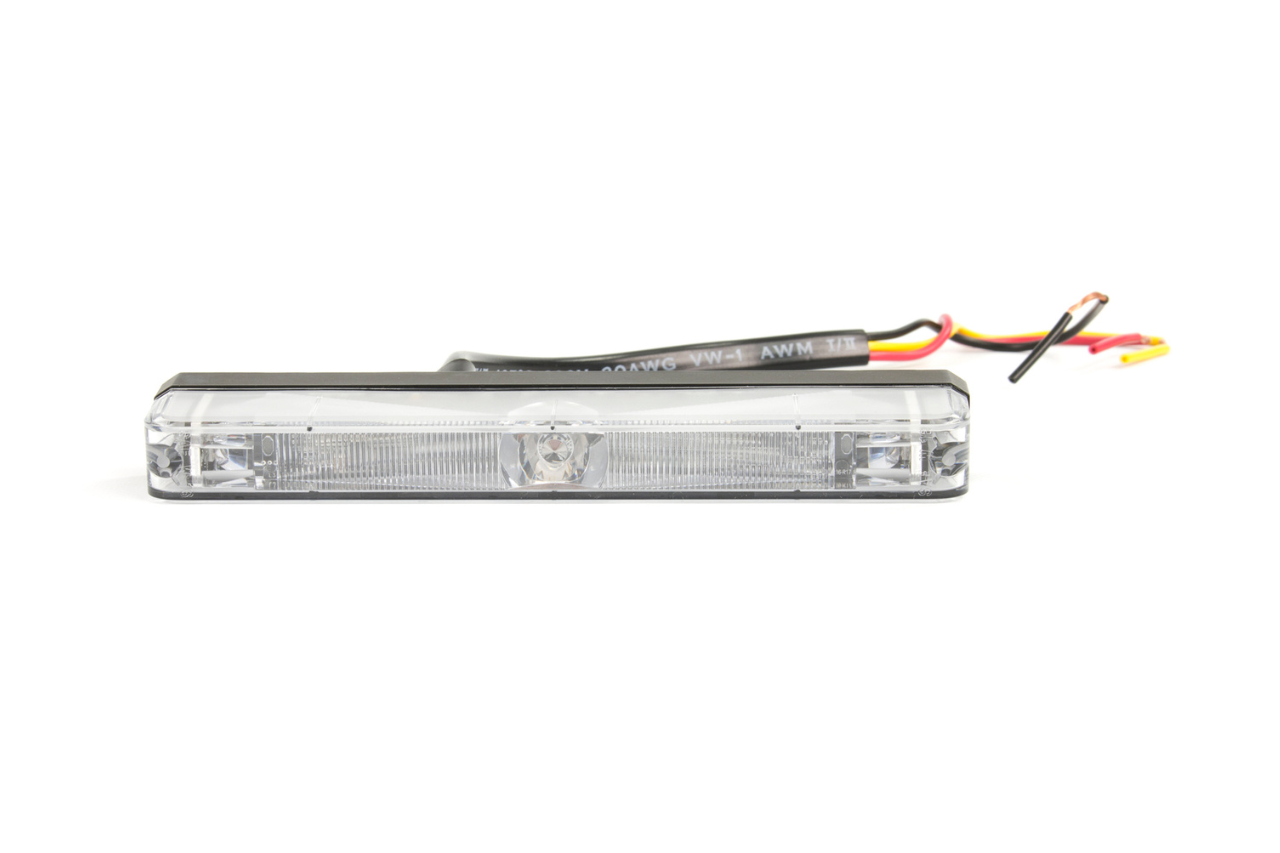

  • LEDs: 3 x high power LEDs
  • Voltage: 12/24V
  • Average Current: 0.4A @ 12V / 0.2A @ 24V (varies with flash pattern)
  • Average Power: 4.74 Watts (varies with flash pattern)
  • Max Current: 0.79A @ 12V / 0.4A @ 24V
  • Max Power: 9.48 Watts

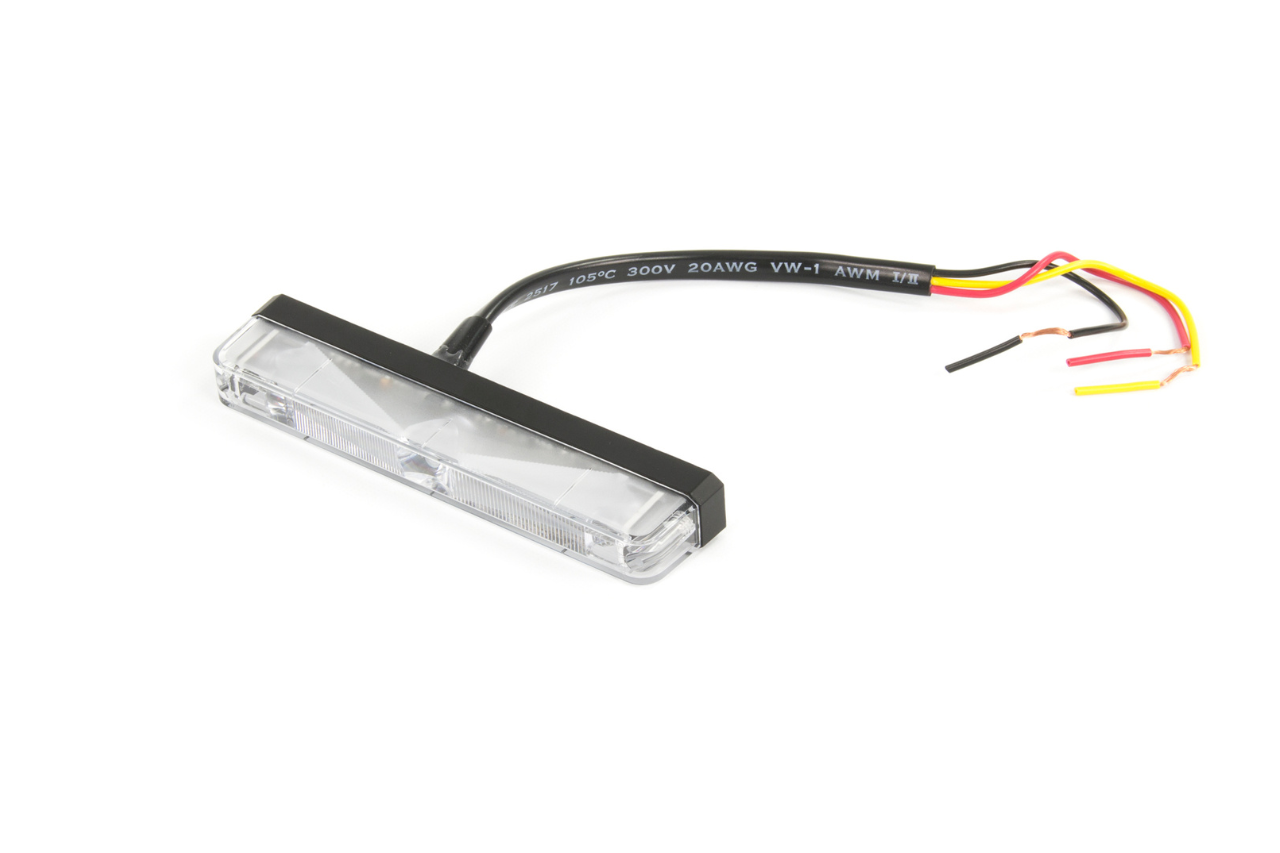

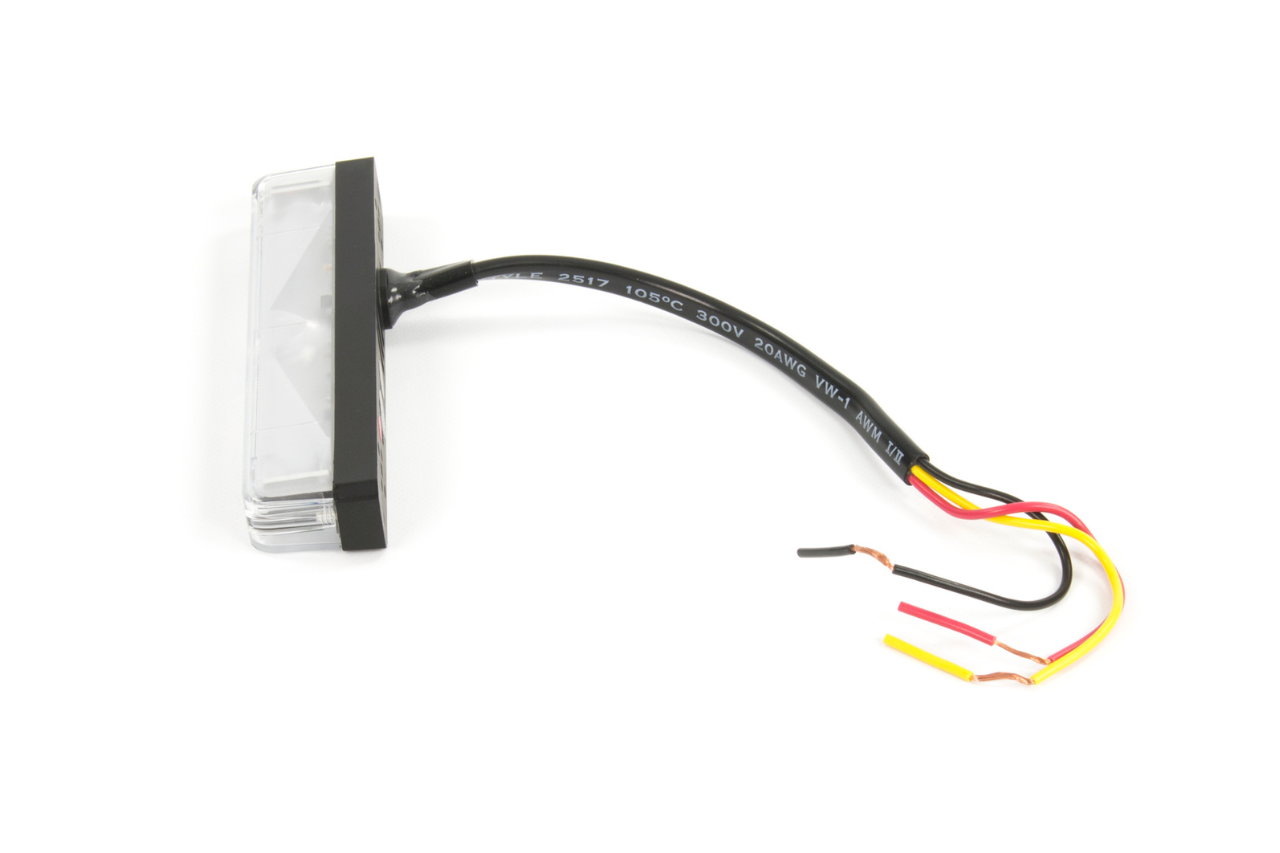

  • Wires: Red-Vcc: 25cm (20AWG) / Black-GND: 25cm (20AWG) / Yellow-Sync: 25cm (20AWG)
  • Recommended Fuse: 1A
  • Colours Available: amber, blue, clear or red
  • Part no: LEDDES3
