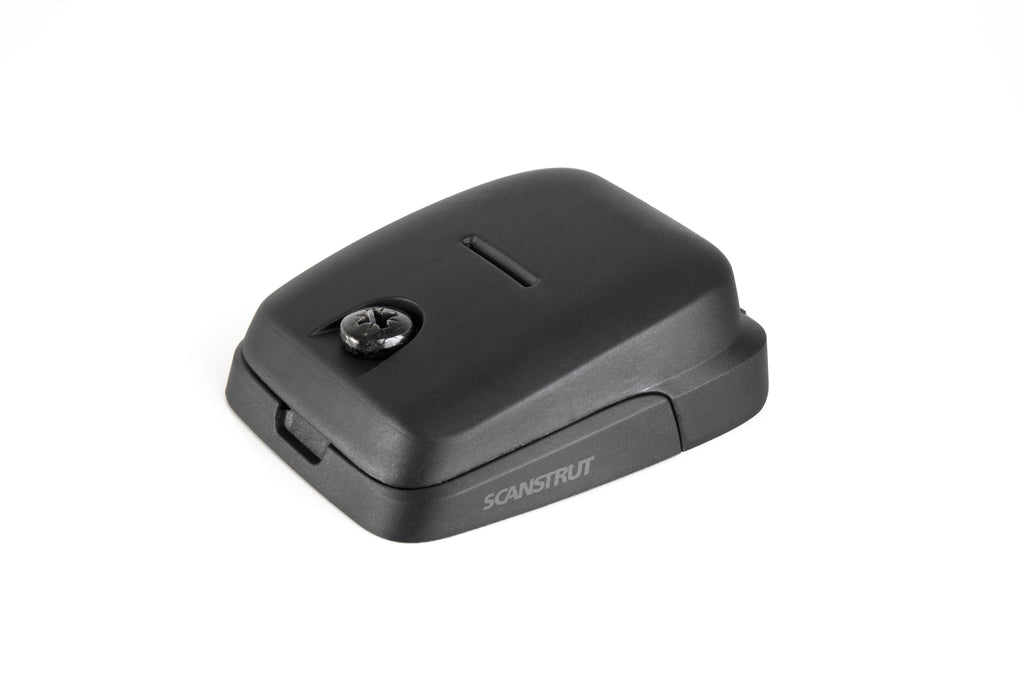

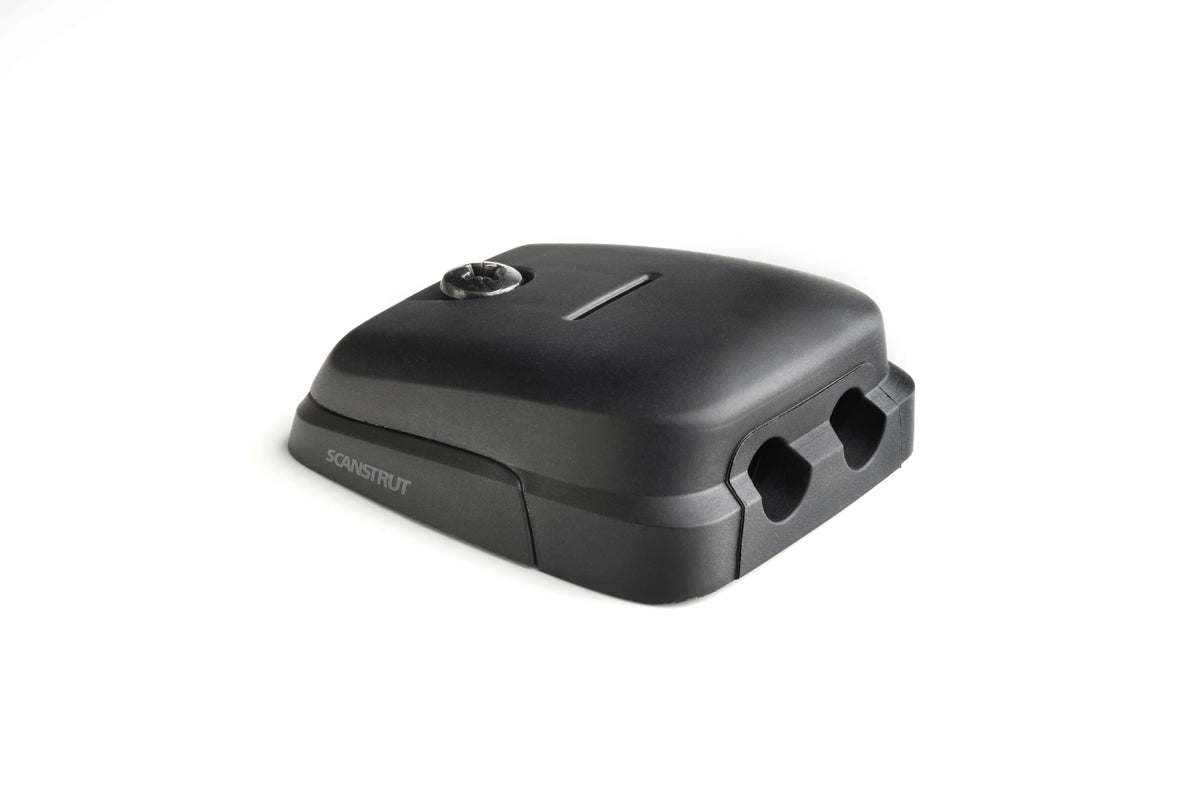

DS-HD6-BLK Twin Cable Horizontal Cable Entry Seal

The best compact horizontal double-entry cable seal

The DS-HD6-BLK double horizontal cable seal was designed to eliminate time-consuming and sub-standard routing of solar panel cables. Our seal helps you achieve a sleek, easy-to-fit, and 100% watertight installation every time. Perfect for routing two solar panel cables externally to internally on the roof of boats.

Product Information.

  • Designed for solar panel installations

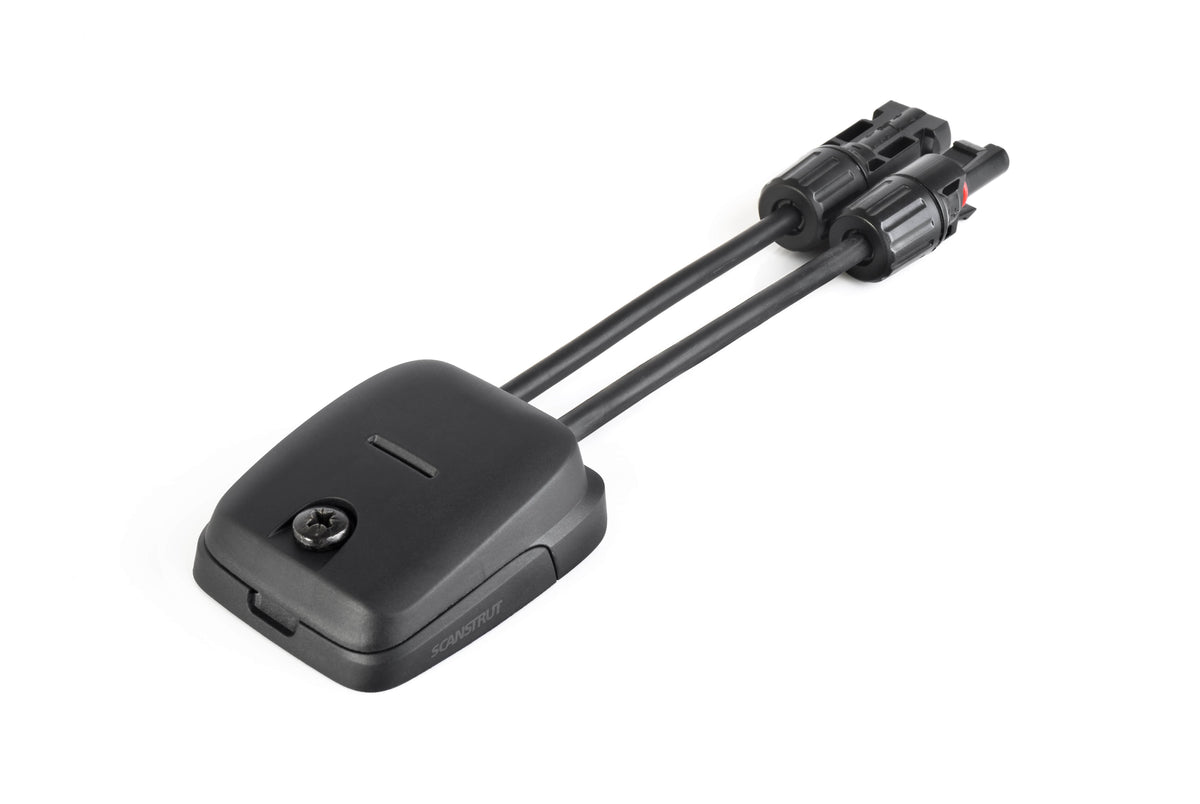

  • Install 2 cables - 5mm (0.19”) and 6mm (0.23”) in any combination.
  • Compact footprint - just 54mm (W) 63mm (L) 24mm (h)
  • Makes it perfect for installing as close to the solar panel as possible
  • Easy fit cable routing that cuts down your installation time through wood, metal, and GRP
  • IP68 watertight seal
  • Black high impact plastic

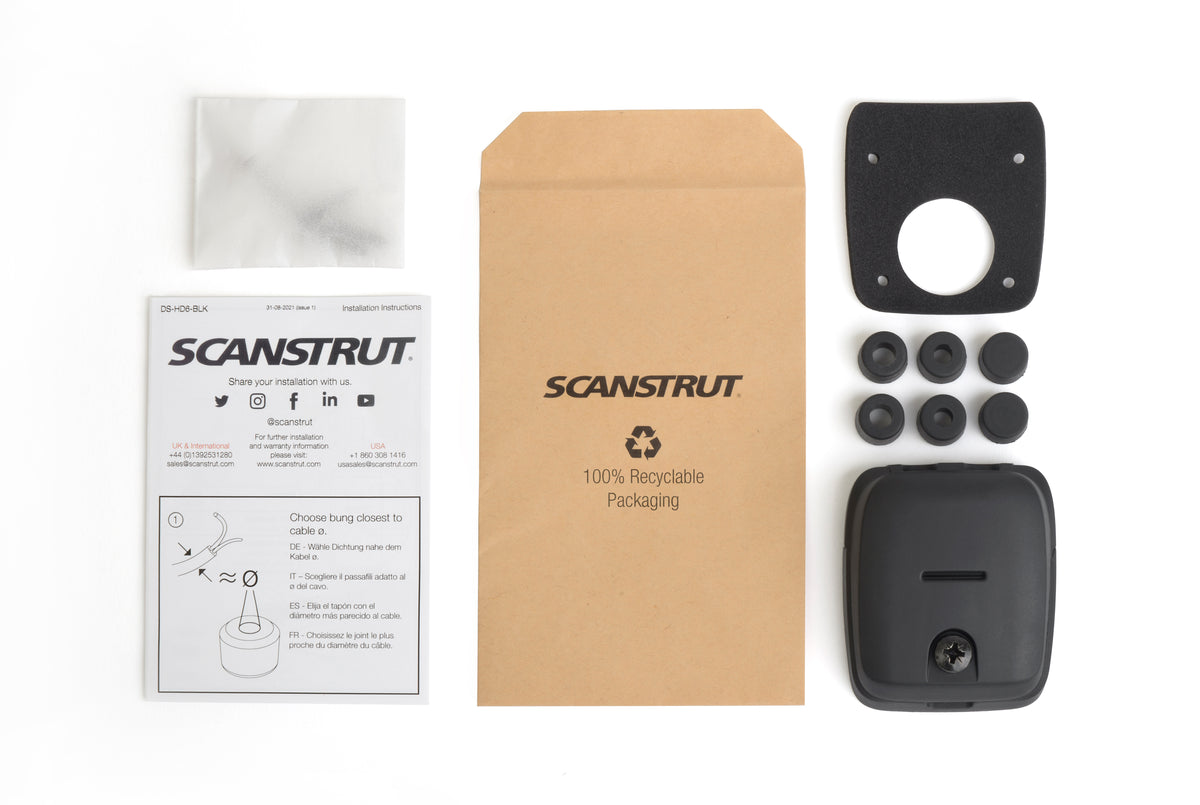

  • Includes 316 stainless steel fixings and a waterproof 3M gasket
  • Clean and simple design
  • The low-profile construction is impact-resistant and provides extra protection from water
  • Captive nuts make for easy assembly and also allow for reliable repeat installations
  • Our materials have been selected to be UV- stable and hard-wearing
  • No messy sealant on bungs
  • Constructed from premium marine-grade materials



DS-HD6-BLK
