PRODUCT DESCRIPTION

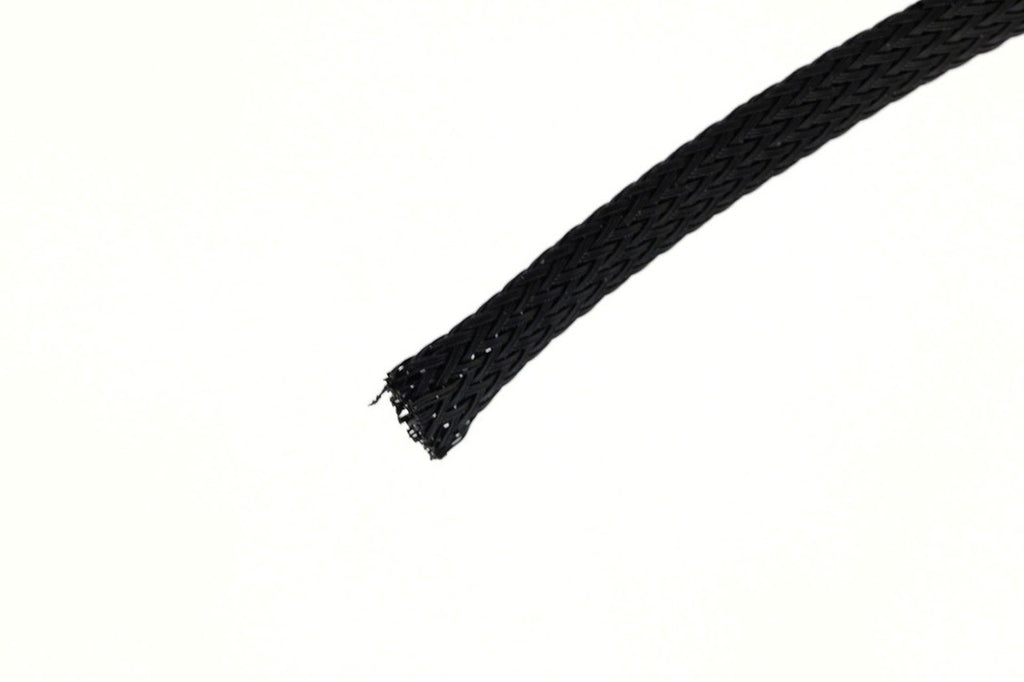

- Supaflex Braided Cable Sheathing for the enclosure and protection of cables and hoses.
- Used in all types of electrical and mechanical installations including power, telecommunications, automotive, marine, aircraft and domestic appliances.
- Woven design enables any number of cables to branch out along the assembly.
- It is easy to use and is best cut with a hot knife or soldering iron thus sealing the end to prevent spraying.
| Part Number | Nominal Diameter (mm) | Minimum Size (mm) | Maximum Size (mm) |
| BCS001 | 4 | 3 | 7 |
| BCS002 | 6 | 5 | 10 |
| BCS003 | 8 | 6 | 14 |
| BCS004 | 10 | 8 | 16 |
| BCS005 | 12 | 10 | 18 |
| BCS006 | 20 | 15 | 27 |
| BCS007 | 30 | 25 | 45 |
| BCS008 | 40 | 35 | 60 |
