Description
PRODUCT DESCRIPTION
- Voltage: 12/24V
- Wires: 250cm YLYS 2x0,75mm2
- Rating: IP66/68
- Lumens: 1980
Characteristics of EC684 lamps:
- Approval: E20 10R-03 2820
- Approval: AR 00 E20 1384 *
- Power consumption: 14,4 W
- IP Class: IP66 / IP68 – (Resistance when immersed in water and spraying a powerful jet of water)
- Operating voltage: 10V - 35V
- Connection:
- - GND - white wire,
- - + working light – black wire
- - + reversing light – yellow wire *.
- Body: PP
- Connection cable: 2.5 m
- Luminous intensity in the vicinity of the axis of reference ~ 4400 cd +/- 10%

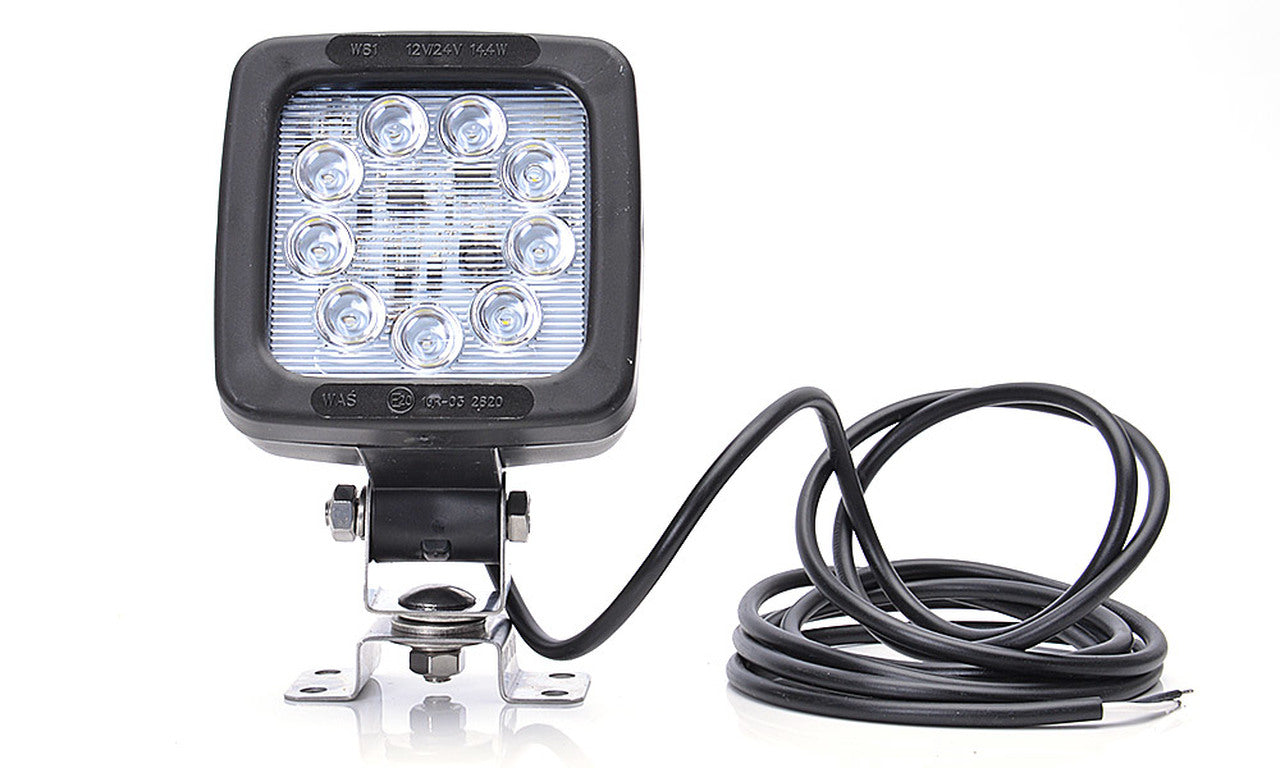

- 9 LED light source x 220 lm / LED ~ 1980 lm +/- 10%
- Flux measured in the laboratory ~ 1300 lm+/-25% measured at ≈ 14,9W

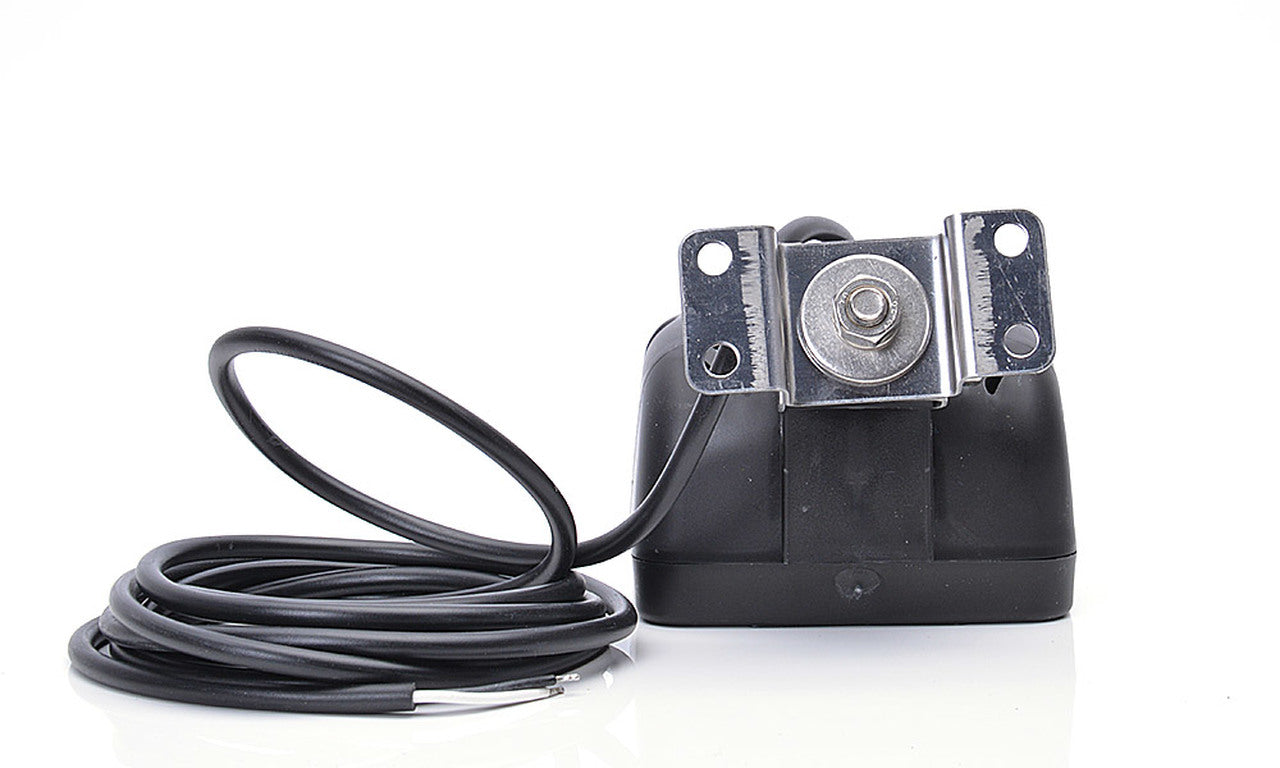

- Easy and stable mounting of the lamp
- Maximum body surface temperature: 44 C, maximum lens surface temperature 68 C (measured in laboratory conditions at 25 C).
- Weight: ~0.6 kg
- Use in ventilated areas.

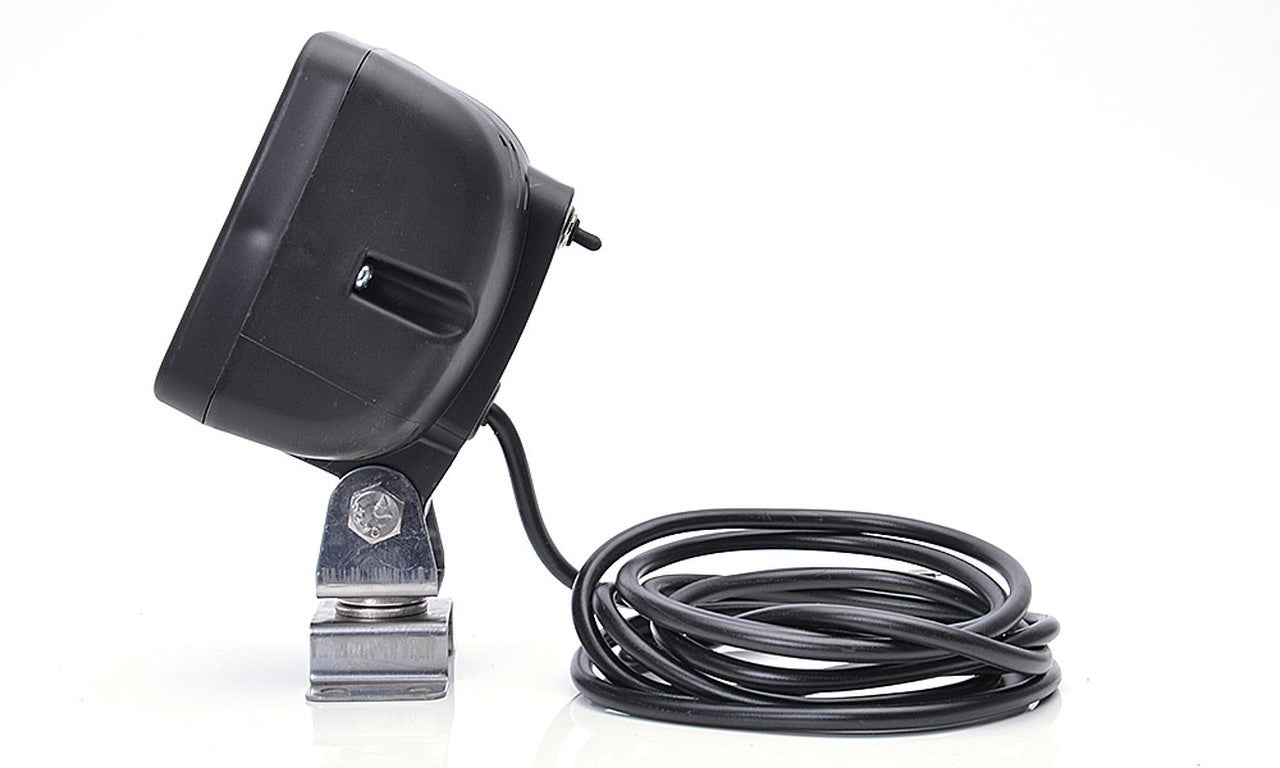

- Lamp base regulation in two dimensions.
