Description

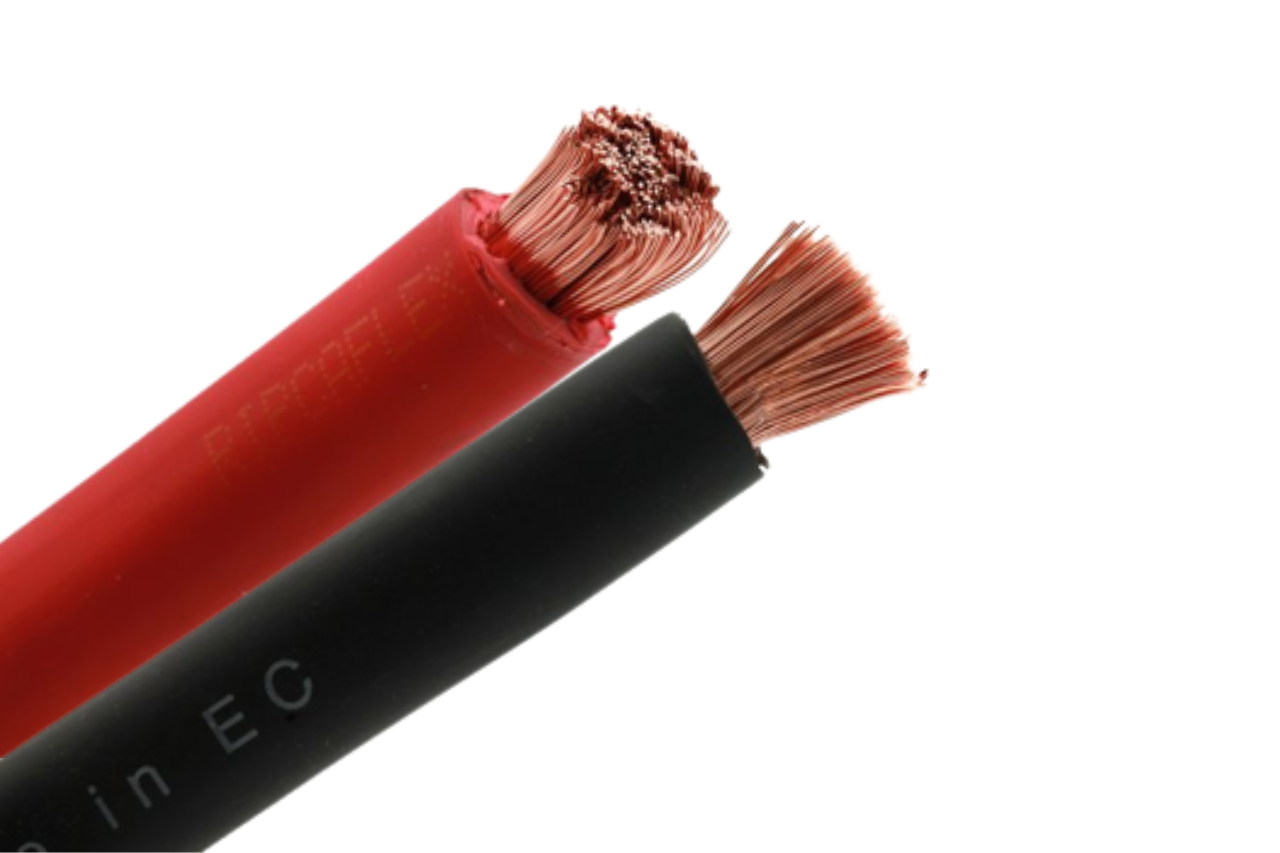

High quality Italian battery cable and is the most flexible cable out there making it a breeze to work with.
Product Features:
- Available 10 or 50 meter reels
- Bulk quantities on request
- Cable size - 70.0mmsq
- Cable Shape - Round
|
Cable size |
70.0mm² |
|
Nominal conductor construction (Wires x Ø mm) |
900xØ 0.30mm |
|
Max conductor resistance (Ohm/per km) |
0.30 Ohm/km |
|
Outer Cable diameter (mm) |
15.75 - 16.05mm² |
|
Minimum Insulation Thickness (mm) |
1.61mm |
|
Insulation Type |
Soft PVC according IEC 60332-1 |
|
Insulation Hardness |
70± 5 Shore A |
|
Max. Working Voltage |
600V |
|
Temperature Rating |
+5ºC/+70ºC |
|
According requirements |
IEC332-1/CEI EN 50265 |
