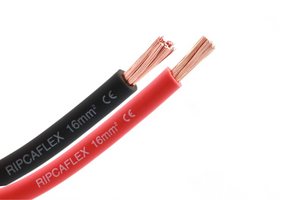

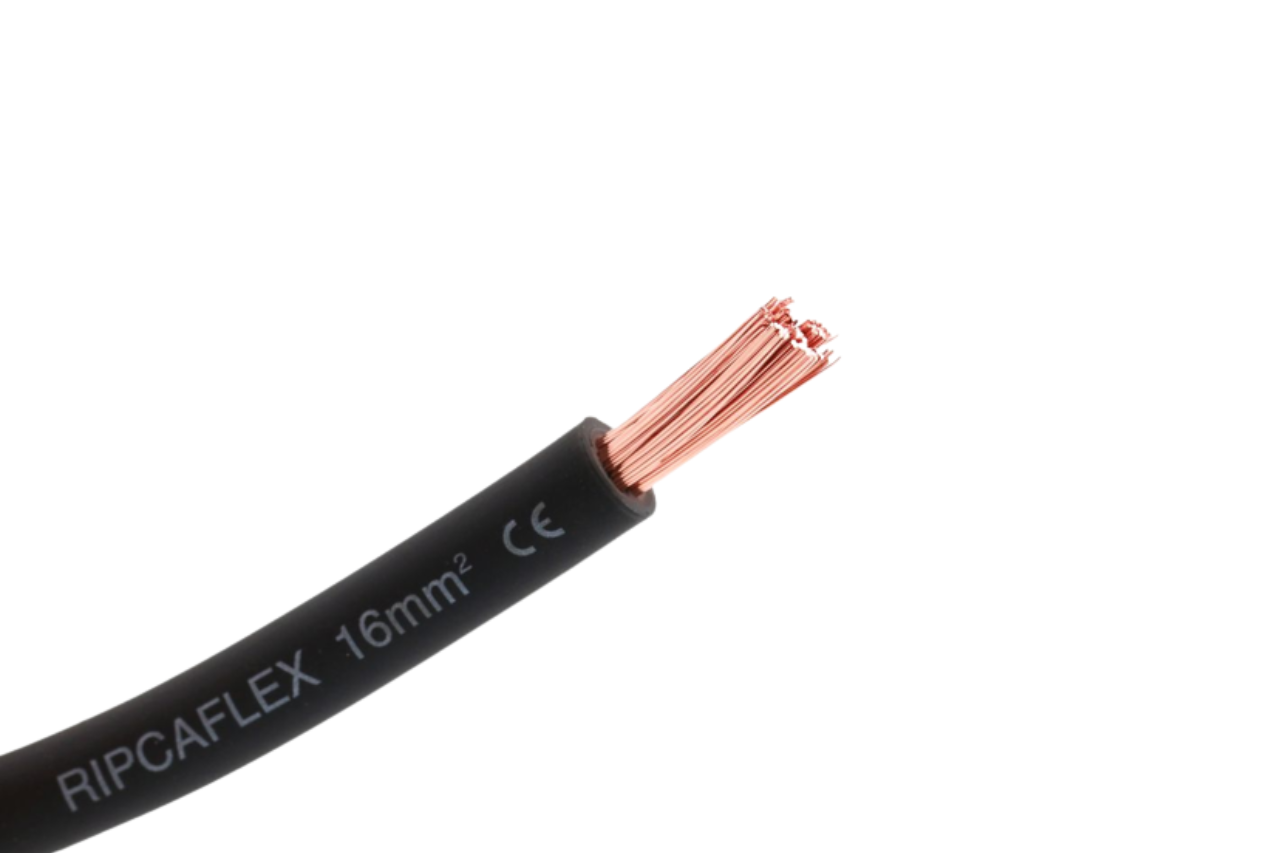

16mm2 Flexible Battery Cable

High quality Italian battery cable in Ireland at Euromotive Group. Ripca is the most flexible cable out there making it a breeze to work with.

 Product Features:

  • Available 10 or 50 meter reels
  • Bulk quantities on request
  • Cable size - 16.0mmsq
  • Cable Shape - Round



Cable size

16.0mm²

Nominal conductor construction (Wires x Ø mm)

204xØ 0.30mm

Max conductor resistance (Ohm/per km)

1.31 Ohm/km

Outer Cable diameter (mm)

7.60 - 8.00mm²

Minimum Insulation Thickness (mm)

1.16mm

Insulation Type

Soft PVC according IEC 60332-1

Insulation Hardness

70± 5 Shore “A”

Max. Working Voltage

600V

Temperature Rating

+5ºC/+70ºC

According requirements

IEC332-1/CEI EN 50265

CSW3-10B
